2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
Specifications
Brand Name :
HUIHAO
Model Number :
Lacing anchor pin
Certification :
ISO
Place of Origin :
CHINA
MOQ :
20.000 pcs
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
300.000 per 20 days
Delivery Time :
15 days after confirm the order
Packaging Details :
the length less 63.5mm, 1000pcs per carton 48 cartons per pallet
Product name :
lacing anchor
Material :
carbon steel ,stainles steel
Surface treatment :
zinc coated ,copper plated
Pin diameter :
2mm 2.7mm 3mm
Pin length :
20-230mm
Head size :
22mmx1mm
Description

14 Gauge mild Steel Lacing Anchors for Heated Removable Insulation Covers

insulation anchors parts

14 Gauge mild Steel Lacing Anchors for Heated Removable Insulation Covers
Material Stainless steel or galvanized steel
Nail dia(D) 12Ga / 14 Ga
Nail length 2.5'' (63.5mm), 4.5''(114mm) , or other length(customized)
Hook base Round or rectangular
Washers Selflocking washers are available in a variety of sizes, shapes and materials

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer

specification of Stainless Steel Lacing Hook Washers with Two Holes For Fixing Lacing Ring
material materil thickness size hole size
stainless steel 304 1mm 22mm 5mm
type hook length hook width custom

one hole type,

two holes type

hook type

washer type

11mm

5mm

 we can be according to your requirements to design the types

How to Application of Metal Insulation Anchors Pins (Hooks) & Washers

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer

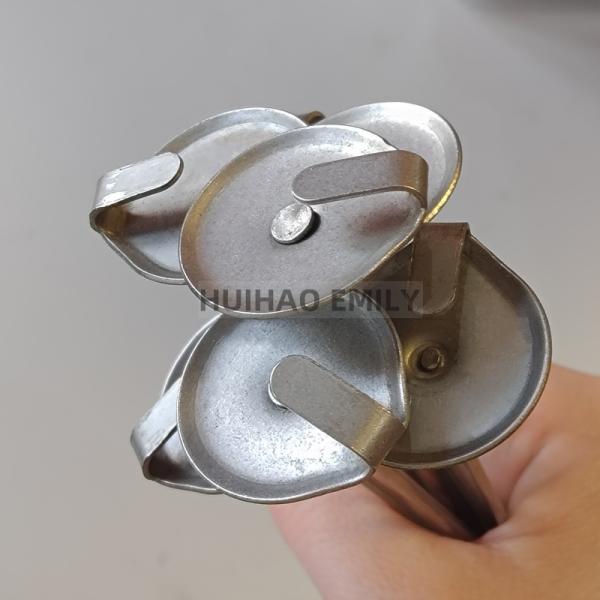

Image details of heat preservation insulation anchor pins

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
