Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation
Specifications
Brand Name :
huihao
Model Number :
Duct Liner Weld Pins
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,paypal
Supply Ability :
1,000,000 pcs per 30 days
Delivery Time :
5-8 work days
Packaging Details :
1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement.
Product name :
Galvanized Steel Duct Liner Pins 2 Inch For Air Duct Fiberglass Insulation
Brand :
HUIHAO CUSTOM
Material :
Carbon Steel
Base Size :
25mm or 30mm is standard
Surface :
Copper plated, galvanized
Nail Diameter :
1.8mm, 2.0mm, 2.7mm, 3.0mm, 3.4mm
Samples :
Support
Nail Length :
As your requirement
Description

Galvanized Steel Duct Liner Pins 2 Inch For Air Duct Fiberglass Insulation


Description Of Duct Liner Pins For Air Duct Fiberglass Insulation :


Duct Liner Pins are widely used to fasten insulation materials onto steel duct work or other steel surfaces. Used with a duct liner pin welder, the duct liner pins are directly welded to the metal after they pierce through the insulaton and make contact with the metal surface. It save a lot labor cost for the fiberglass insulation ductwork.


Duct Liner Pins have a paper washer or can be plastic coated to prevent sparking.


Item Duct Liner Pins
Brand Huihao Custom
Material Carbon Steel
Plating Copper coating for the nails Zinc coating for the head
Bevel Head edge is beveled to prevent cutting of insulation material
Head Size 1-3/16" (30mm)
Head Thickness 0.5mm
Nail Diameter 10Gauge/3.4mm, 11Gauge/3.0mm, 12Gauge/2.7mm
Nail Length 25-300mm
Features

1. Nail is strongly riveted on the base

2. Well welding performance

3. Samples are free

4. Size is customizable


Images Of Duct Liner Pins For Air Duct Fiberglass Insulation:


Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation

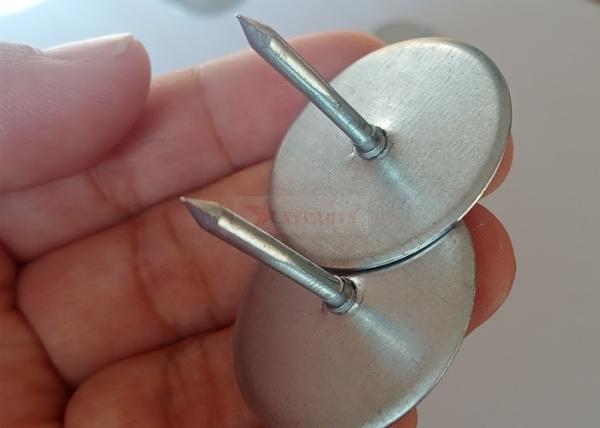

Item: Duct Liner Pins

Material: Galvanized Steel

Base Size: 30mm

Nail Diameter: 2.7mm

Nail Length: 25mm


If special requirement for the size and material, it could be customized according to your requirement.

Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation

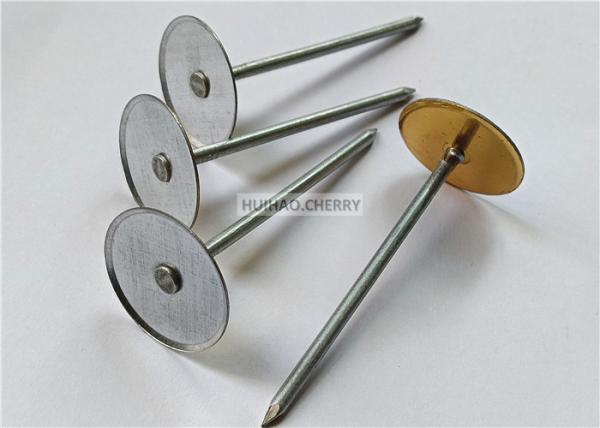

Item: Duct Liner Weld Pins

Material: Galvanized Steel

Base Size: 30mm

Nail Diameter: 3.4mm

Nail Length: 105mm


If special requirement for the size and material, it could be customized according to your requirement.
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation

Item: Duct Liner Weld Pins

Base Material: Galvanized Steel

Base Size: 30mm

Nail Material: Copper Coated Mild Steel Material

Nail Diameter: 2.7mm

Nail Length: 125mm


If special requirement for the size and material, it could be customized according to your requirement.


Application Of Duct Liner Pins For Air Duct Fiberglass Insulation:


Duct liner pins are usually applied with a capacitor discharge stud welder.


The method of application for the duct liner weld pins is to place the insulation onto a metal surface, push the weld pins through the insulation, and weld affix (mount) the entire fabrication in one step.


Duct liner pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets primarily for commercial and industrial application.


Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation

Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation


Package Of Duct Liner Pins For Air Duct Fiberglass Insulation:


1. 1000 pcs / 2000 pcs/ 3000 pcs per carton

2. 48 cartons per pallet
3. or according to your requirement.
Galvanized Steel Duct Liner Pins 4 Inch For Air Duct Fiberglass Insulation


FAQ Of Huihao Hardware Mesh Product Limited.


1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm is supported.

4. Can you accept small orders?

Yes, for common size, we could accept small orders.

5. How do you control and ensure product quality?

1) Confirm with you every details before quoting.

2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.

4) We will send you videos and pictures during the production and shipment process.
