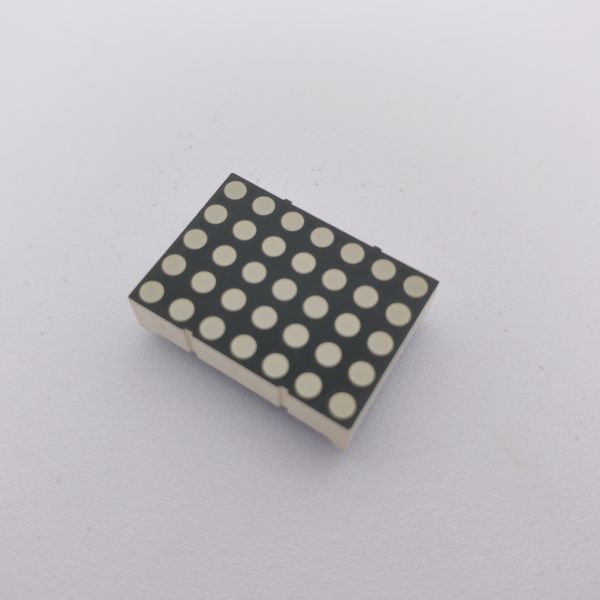

3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
Specifications
Application :
Electronic Displays
Interface :
Direct drive or via driver IC
Description :
3mm 5 x 7 Dot Matrix Led Display
Reverse Voltage :
5v
Emitting Dot Diameters :
3MM
Dot Diameter :
Approximately 2mm
Emitting Colour :
Ultra bright white
Forward Voltage :
1.8-2.3V/led
Brightness :
High
Wavelength :
60-625NM
Current Per Dot :
Approximately 20mA
Led Color :
Ultra Bright Blue
Luminous Intensity :
100-120mcd
Type :
Standard
Features :
competitive price with high quality
Polarity :
Row Anode Column Cathode
Brand Name :
LIGHT-BO
Model Number :
LB03572EBH1S
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Outer Dimensions :
22.75 x 31.8 X 8.5mm
Size :
5x7
Description
3mm DOT Matrix LED Display 5*7 for Digital Time Zone Clock Indicator
High-performance 5*7 dot matrix LED display designed for digital time zone clock indicators and various industrial applications.
Product Specifications
Emitting dot diameter: 22.75 * 31.8 * 8.5mm
Outer dimensions: Row Cathode Column anode
Connection: Ultra Bright Blue
Emitting color: 460-470NM
Wavelength: 100-120MCD
Luminous Intensity: 2.6-3.0V/LED
Forward Voltage: red, blue, yellow, green, orange, white and amber
Available colors: 3mm
Quality Assurance
  • Raw material inspection
  • Process verification and full inspection after chip & wire bonding
  • Comprehensive testing before packaging and partial verification before shipment

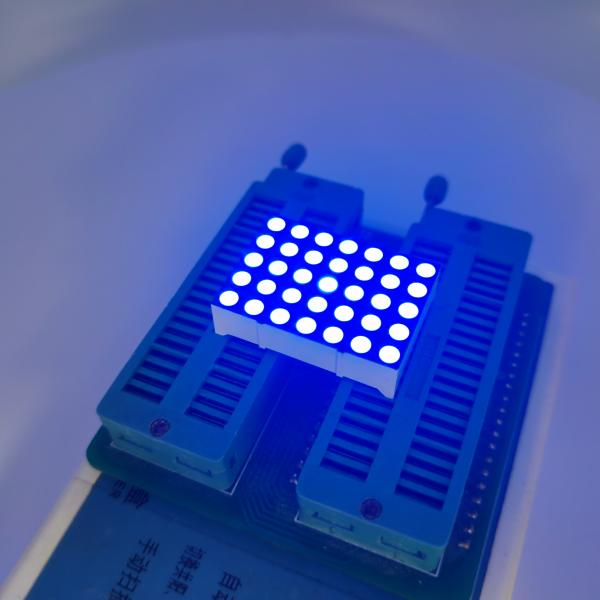

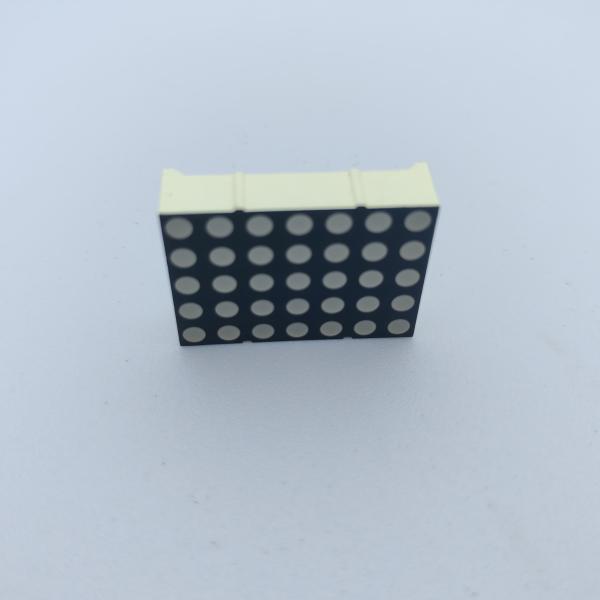

Product Images
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
Technical Parameters
Yellow Green - J/JU
Vibrant yellow-green color option for enhanced visual appeal and design flexibility.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA3040mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA569574nm
Amber/Yellow - Y
Warm amber/yellow hue providing comfortable illumination and visual attraction.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.5V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA585595nm
Orange - F
Energetic orange color for dynamic visual displays with enhanced visibility.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA600605nm
Super Bright Red - R
High-intensity red for maximum visibility and attention-commanding displays.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA5060mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA630635nm
Ultra Bright Red - UR
Maximum luminosity red for superior visibility and display impact.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA80100mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA625635nm
Pure Green
Crisp green color ideal for eco-friendly designs and natural visual appeal.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.63.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120180mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA515525nm
Ultra Bright Blue - BH
Vibrant blue for modern, sophisticated display applications.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA460465nm
Ultra Bright White - WH
Pure white for exceptional clarity and elegant display performance.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
LED Color TemperatureKIf=10mA5500206800K
Chromaticity CoordinatesX/YIf=10mA0.29,0.320.30,0.33nm
Absolute Maximum Ratings (Ta=25ºC)
Performance specifications ensuring optimal reliability under demanding conditions.
ParameterSymbolRatingsUnit
Forward Current (per dice)Ipm20mA
Reverse Voltage (per dice)Vr5V
Power Dissipation (per dice)Pm80mW
Operating Temperature RangeTopr-40~+85ºC
Storage Temperature RangeTstg-40~+85ºC
Solder Temperature (≤3 seconds)Th260ºC
Manufacturer Profile
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions built on a foundation of trust and technical expertise.
LIGHTBO provides cost-effective custom solutions that enhance competitive advantages in global markets, empowering clients to succeed in dynamic industry landscapes.
Applications
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
Our cutting-edge Ultra Red 5*7 DOT Matrix Display, along with 7 Segment LED Display, Customized LED Display, and Numeric LED Display products, are engineered for seamless integration into diverse applications including:
  • Household appliances modernization
  • Precise temperature and humidity monitoring
  • Refrigerator controllers and thermostats
  • HVAC systems and industrial controls

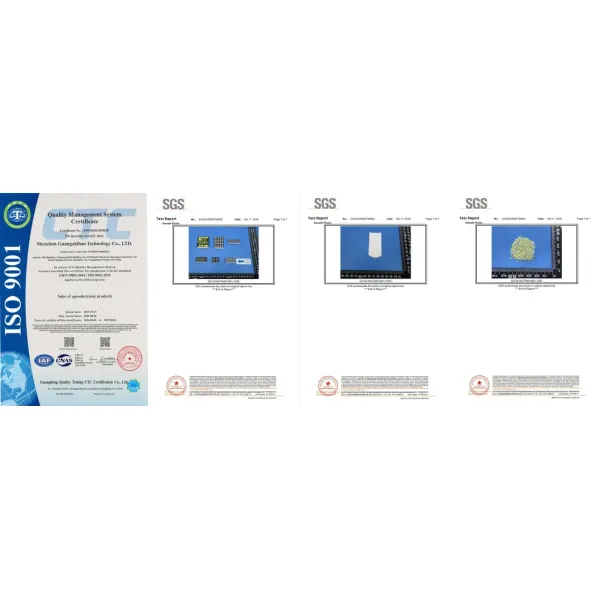

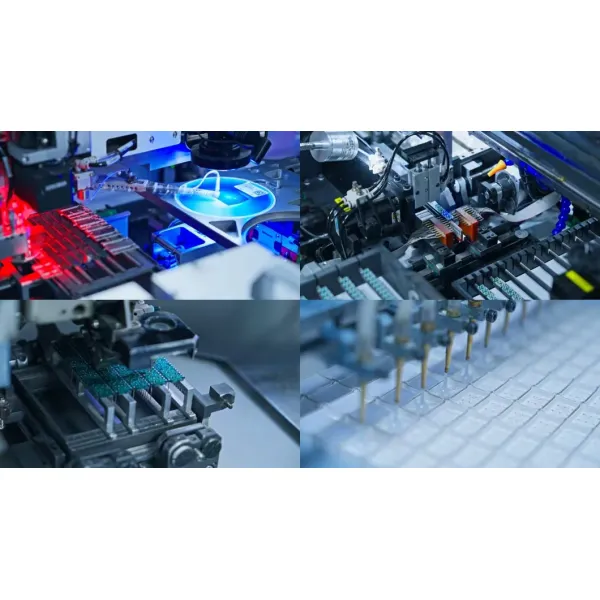

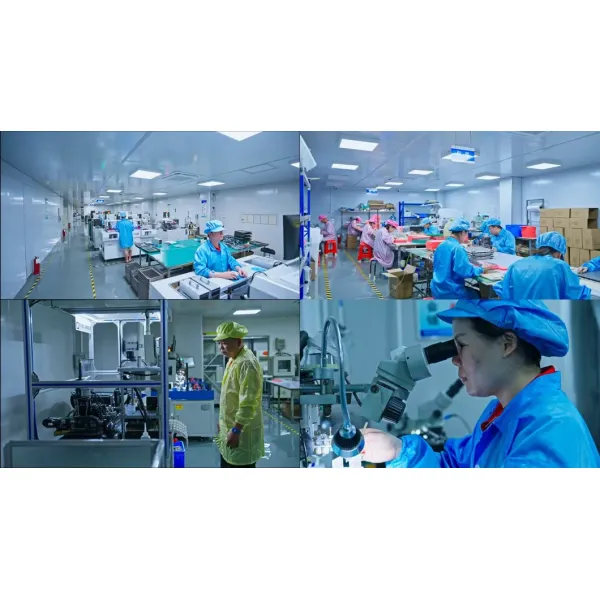

Certifications & Facilities
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
Company Exhibitions
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
Shipping & Logistics
3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
We support multiple shipping methods including DHL, FEDEX, UPS, EMS, air freight, and sea freight to meet your specific requirements.
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are the original manufacturer with over 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our product range includes 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.
Q3: What is your minimum order quantity (MOQ)?
A: Our standard MOQ is 1000 pieces, but we accept sample orders and smaller quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
A: Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: What is your delivery time?
A: Standard delivery is 10-20 days, depending on order quantity and material availability. Urgent orders with available materials can be completed in 7-10 days.
Q6: What are your payment terms?
A: We accept bank transfer, T/T, Western Union, and PayPal for smaller amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
A: Yes, we quote prices based on incoterms including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
A: Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
A: Yes, we consider discounts for bulk orders.
Q10: How much are shipping charges?
A: Shipping costs depend on shipment size and method. We provide quotes based on your requirements.
Q11: Do you offer custom design services?
A: Yes, we provide comprehensive OEM & ODM services, customizing sizes, LED colors, and functional icons to your specifications.
Q12: Will my custom design remain confidential?
A: Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for custom product samples?
A: Custom samples typically require 20-25 working days after receiving mold costs and design approval.
Q14: What shipping methods do you use?
A: We ship via DHL, FEDEX, UPS, EMS, air freight, and sea freight. You can choose the method that best suits your needs.
Q15: How do you ensure product quality?
A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct comprehensive 100% testing of all products before shipment.
