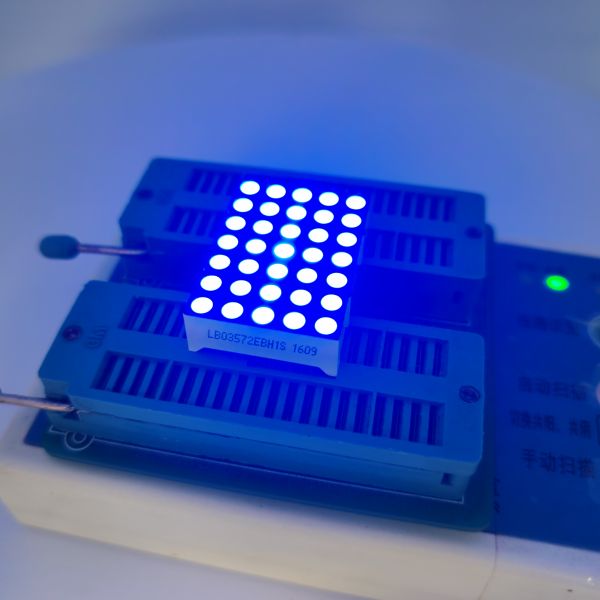

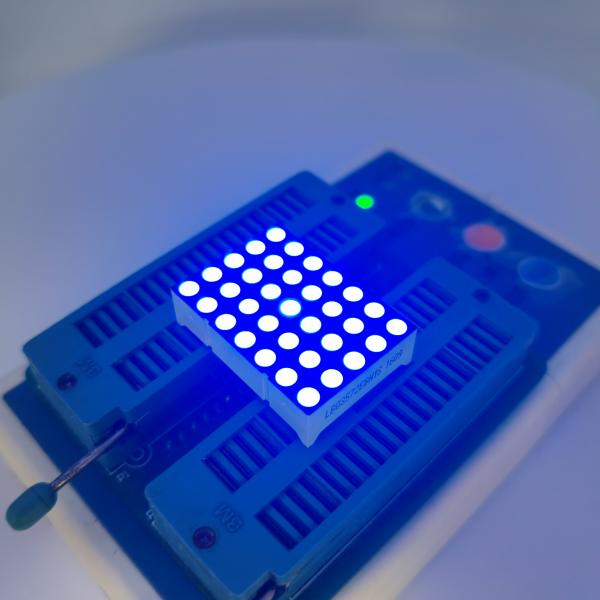

DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB03572BBH1S
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Outer Dimensions :
22.75 x 31.8 X 8.5MM
Application :
Electronic Displays
Led Color :
Ultra Blue
Luminous Intensity :
100-120MCD
Description :
3MM 5 x 7 Dot Matrix Led Display
Brightness :
High
Description
5×7 Dot Matrix LED Display for Digital Time Zone Clock Indicators
Product Overview

High-performance 5×7 dot matrix LED display with 3mm emitting dot diameter, designed for digital time zone clock indicators and various display applications.

  • 5×7 dot matrix LED display configuration
  • Emitting dot diameter: 3mm
  • Outer dimensions: 22.75 × 31.8 × 8.5mm
  • Connection: Row anode, Column cathode
  • Available in multiple colors: red, blue, yellow, green, orange, white, and amber
Ultra Bright Blue Specifications
  • Emitting color: Ultra Bright Blue
  • Wavelength: 460-470nm
  • Luminous intensity: 100-120mcd
  • Forward voltage: 2.6-3.0V/LED
Detailed Technical Parameters
Yellow Green (Code: J/JU)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA3040mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA569574nm
Amber/Yellow (Code: Y)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.5V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA585595nm
Orange (Code: F)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA600605nm
Super Bright Red (Code: R)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA5060mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA630635nm
Ultra Bright Red (Code: UR)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA80100mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA625635nm
Pure Green
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.63.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120180mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA515525nm
Ultra Bright Blue (Code: BH)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
Spectrum Width of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA460465nm
Ultra Bright White (Code: WH)
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
LED Color TemperatureKIf=10mA5500206800K
Chromaticity CoordinatesX/YIf=10mA0.29,0.320.30,0.33nm
Absolute Maximum Ratings (Ta=25ºC)
ParameterSymbolRatingsUnit
Forward Current (per dice)Ipm20mA
Reverse Voltage (per dice)Vr5V
Power Dissipation (per dice)Pm80mW
Operating Temperature RangeTopr-40~+85ºC
Storage Temperature RangeTstg-40~+85ºC
Solder Temperature (≤3 seconds)Th260ºC
Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with competitive pricing.

Applications

Our 5×7 dot matrix LED displays are engineered for seamless integration into various applications including household appliances, temperature and humidity displays, refrigerator controllers, thermostats, and HVAC systems.

DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
Certifications & Facilities
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
Company Exhibitions
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
Shipping & Logistics
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
Product Showcase
DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator DOT Matrix LED Display 5 X 7 3mm for Digital Time Zone Clock Indicator
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our main products include 7 Segment LED displays, SMD LED displays, Dot matrix LED displays, Arrow LED displays, Custom Design LED displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.
Q3: What is your MOQ?
A: Our MOQ is 1000 pieces, but we also accept sample orders and small orders with quantities less than our MOQ.
Q4: Can I get samples for testing before placing an order?
A: Yes, we can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. For urgent orders with available raw materials, we can adjust production to deliver within 7-10 days.
Q6: What are your payment terms?
A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment method details are negotiable.
Q7: Can you provide FOB prices?
A: Yes, we can quote prices based on incoterms EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
A: Please provide your email address or contact us directly through our website for our catalog and price list.
Q9: Can I negotiate prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much are the shipping charges?
A: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q11: Can you do custom design products?
A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: If I send my design, will you keep it confidential?
A: Yes, we will not show or sell your design to others without your authorization.
Q13: What is the sample lead time for customized products?
A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What shipping methods do you use?
A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
A: We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
