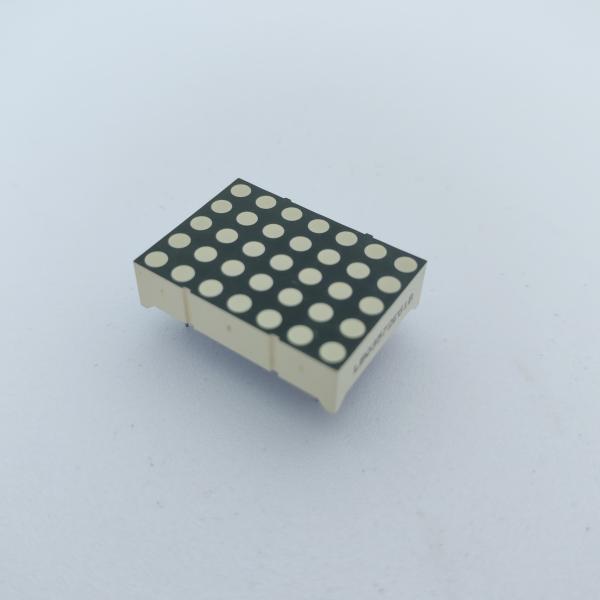

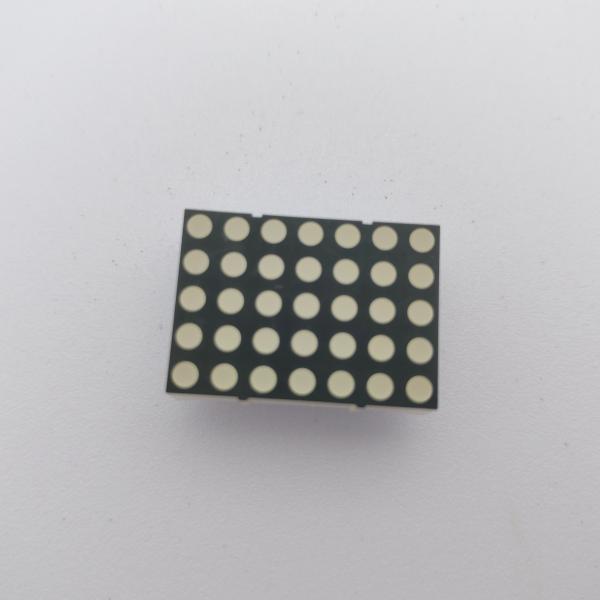

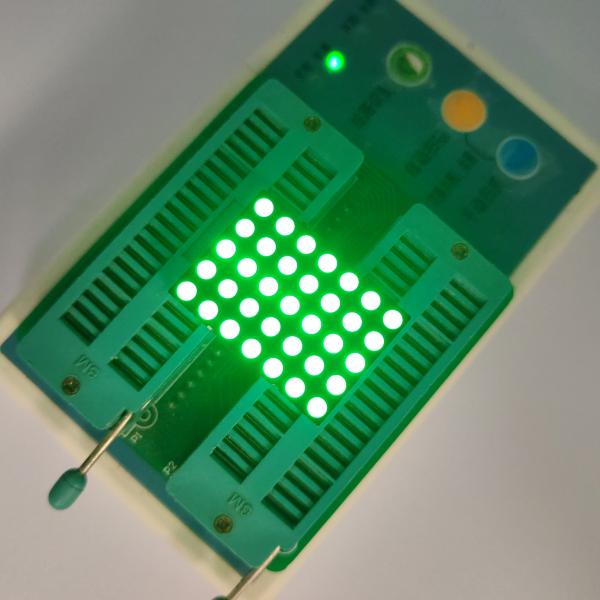

3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator
3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator
3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator
3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator
3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator
3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB03572EG1B
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Application :
Information Display
Features :
Competitive Price with high quality
Shape :
Dot Matrix
Pixel Pitch :
3 mm
Reverse Voltage :
5V
Ip Rating :
IP54
Description

3mm 5 X 7 DOT Matrix Pure Green LED Display for Digital Time Zone Clock Indicator

Product Descriptions:
5*7 dot matrix led display
Emitting dot diameter:3mm
Outer dimensions:22.75 x 31.8 X 8.5mm
Connection:Row Cathode column anode
Emitting color:Pure Green
620-625NM
120-160MCD
2.5-3.0V/LED
Available in red,blue,yellow,green,orange,white and amber

Code:Ultra Bright White -WH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm

Color:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.5 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 120 160 mcd
Spectrum With Of Half Value λ If=20mA 20 nm
Wavelength Dλ If=20mA 515 525 nm

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

​

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ℃
Storage Temperature Range Tstg -40~+120 ℃
Solder Temperature(3 sec) Th 260 ℃

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
