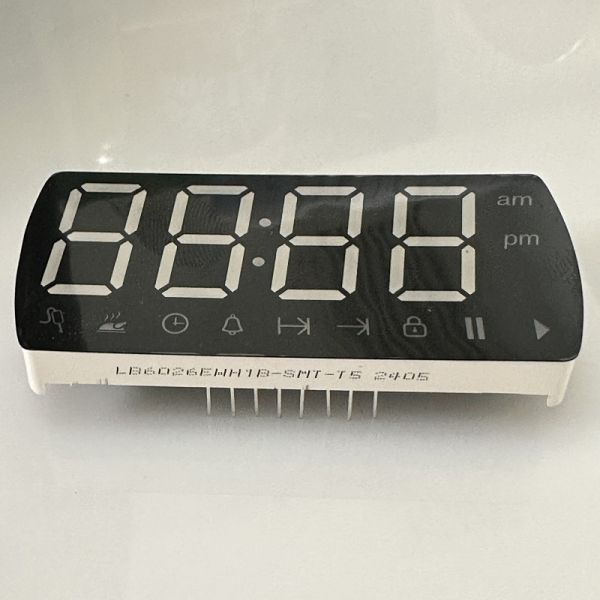

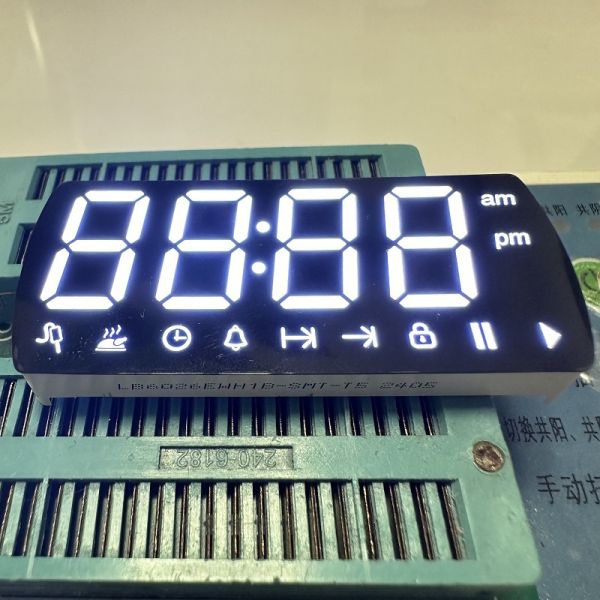

Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Customized Ultra Bright 4 Digit LED Display for Ovens
Specifications
Brand Name :
LIGHTBO
Model Number :
LB6026EWH1B-SMT-T5
Certification :
ISO9001&ROHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT,Western Union
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Polarity :
Common Anode
Pixels :
10mm,6mm,8mm,2.5mm,No
Screen dimension :
Customized Size,496x496mm,40.5*16.0mm,Custom Made,50 cm long
Tube chip color :
Full Color,Red,Green,Blue,Customized color
Usage :
Indoor,Outdoor,Semi-outdoor,counter,washing machine
Display function :
Video,Graphics,Animation,Picture,Image
Warranty :
2 Years,3 years,5 years,2-3 Years,Two Years
Product name :
P5 Indoor LED Display,HQ-CP50 digits Led Numeric Display,buy countdown clock,Led Video Display Panel,rgb led display
Brightness :
5000cd/sqm,6000 cd/m2,400-1000cd/sqm,High Brightness,1800CD
Life span :
100000hours,100,000 Hours,000 hrs
Module size :
160x160 mm,320mm*160mm,288*120mm,576mm*576mm,512*512mm
Led chip :
Epistar,Nation star,Sanan,Cree + Nichia + Epistar + Opto + Silan
Color :
Full-color,1R1G1B,Customized
Cabinet size :
496x496x62mm,500mm x 500mm,512*5120mm,500*500 mm,Customized
Pixel pitch :
6mm,P3.91mm P4.81mm rental led display,4,2.5mm
Application :
Outdoor / indoor advertising panel,Indoor,Outdoor Advertising Led,Home appliance/meter/taxi,countdown event
Pixel density :
27777 dots/m2,65536,16000dots/sqm
Item :
full color led display flexible,Anode 0.56 Inch custom led display,4 digits led display
Power supply :
G-energy,CL,AC power or 12V DC,MeanWell or same quality brand,MeanWell
Cabinet material :
iron,Die Cast Aluminum,magnesium & Aluminum alloy
Description
Customized Ultra Bright 4 Digit LED Display for Ovens
Product Features
  • Forward voltage (high luminous intensity output)
  • Low power consumption
  • Extremely low current
  • Luminous evenly distributed on each segment
  • Industrial standard size
  • Provides excellent reliability in bright ambient light
  • Stable performance
  • Long lifetime
  • Meet RoHS/REACH compliant
Applications
  • Audio equipment or instrument panels
  • Home electronic appliances
  • Numeric displays
  • Multimedia products
  • General use for digital indicators, temperature indicators, humidity indicators, process indicators, and more
Technical Specifications
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Code:Yellow Green- J
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 30
40 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 569
574 nm
Code:Amber/Yellow -Y
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.5 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 585
595 nm
Code:Orange -F
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 600
605 nm
Code:Super Bright Red -R
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 50
60 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 630
635 nm
Code:Ultra Bright Red -UR
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 80
100 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 625
635 nm
Code:Pure Green -G
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
180 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 515
525 nm
Code:Ultra Bright Blue -BH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
140 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 460
465 nm
Code:Ultra Bright White -WH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32
0.30,0.33 nm

Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications
Customized Ultra Bright 4 Digit LED Display for Ovens

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications
Customized Ultra Bright 4 Digit LED Display for Ovens
Office and Factory Overview
Customized Ultra Bright 4 Digit LED Display for Ovens Customized Ultra Bright 4 Digit LED Display for Ovens Customized Ultra Bright 4 Digit LED Display for Ovens Customized Ultra Bright 4 Digit LED Display for Ovens
Company Exhibitions
Customized Ultra Bright 4 Digit LED Display for Ovens Customized Ultra Bright 4 Digit LED Display for Ovens
Shipping Services
Customized Ultra Bright 4 Digit LED Display for Ovens Customized Ultra Bright 4 Digit LED Display for Ovens
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What are your main products?
Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: How long is your delivery time?
Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
Q6: What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
Yes, we offer discounts for bulk orders.
Q10: How much are shipping charges?
Shipping costs depend on shipment size and method. We provide quotes upon request.
Q11: Do you offer custom design services?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: Will you keep my custom design confidential?
Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for customized product samples?
Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
Q14: What shipping methods do you use?
We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
