Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller
Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller
Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller
Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller
Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller
Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB2929IB1B
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Supply Ability :
20000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Package Dimensions :
28.6*28.6*9mm
Display Brightness :
Ultra Blue
Forward Voltage :
2.6-3.0v/led
Warranty :
3 years
Face Colour :
black
Application :
indoor/outdoor Advertising
Description

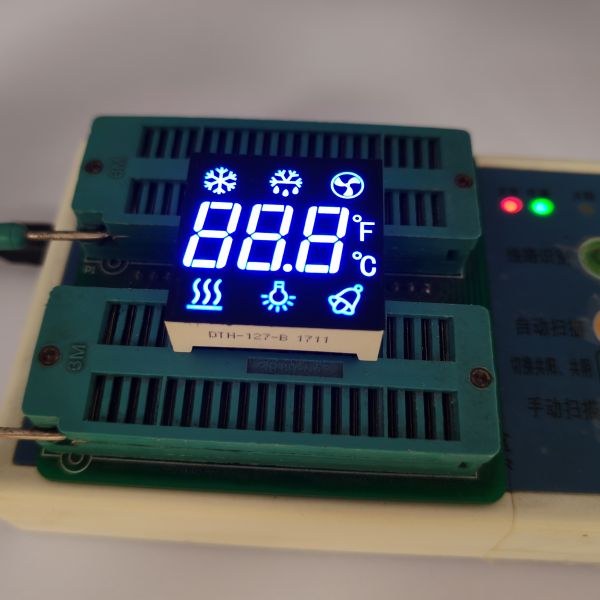

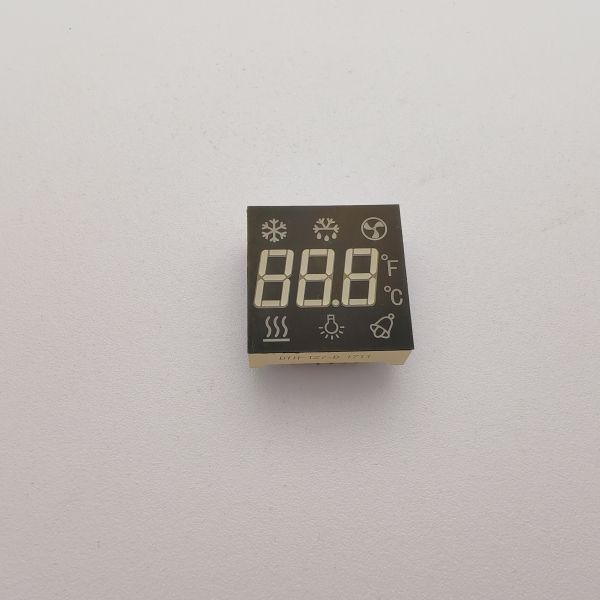

Customized blue 3-digit 7-segment refrigerator controller

Product Descripition

Digit number 3 digit 2digits,3digits, 4digits,5digits,6 digits
Color Ultra Bright Blue White, blue,pure green, yellow-green, orange,etc.
Size 28.6*28.6*9MM Other size are supported
Polarity Common anode Common Cathode
Life span 80000hours
Free Samples supported
Lead time for sample 5-7 working days Tooling samples are 15-20 working days
Lead time for formal order 15-20 working days According to order quantity
OEM&ODM Support Based on customer's drawing or idea
LOGO printing Support Based on customer's drawing or idea
MOQ 1000PCS Can accept 100-500pcs for first order

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 90 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 620 625 nm

Code:Ultra Bright Blue -BH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 100 120 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 460 470 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ℃
Storage Temperature Range Tstg -40~+120 ℃
Solder Temperature(3 sec) Th 260 ℃

Product Feature

High-efficiency forward voltage design ensures superior luminous intensity output

Ultra-low power consumption with minimal operating current

Uniform brightness distribution across all display segments

Compact industrial-standard dimensions for easy integration

Maintains outstanding visibility even in high-ambient-light environments

Delivers consistent, stable performance

Extended operational lifespan

Fully compliant with RoHS and REACH environmental standards

Applications:

Elevator and lift position indicators

Floor display panels

Digital signage and moving message boards

Home appliance interfaces

Industrial and commercial information displays

Our company offers a comprehensive range of LED display solutions, including LED segment displays, dot-matrix LED displays, LED display modules, and classic 7-segment LED displays.
