4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Specifications
Character height :
14.2mm (0.56 inch)
Polarity :
Common anode/common cathode
Brand Name :
LIGHTBO
Model Number :
LB40562FR1B
Certification :
RoHS&SGS&ISO
Place of Origin :
Shenzhen,China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
TT in advance& Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
10-15Days
Packaging Details :
EPE+CARTON
Emitting Colour :
Super red
Package dimensions :
50.3 x 19 x 8mm
Description
Instrument Panel 4 Digit 7 Segment LED Display 14.2mm Size 50.3 x 19 x 8mm
Product Overview

Instrument Panel 7 Segment 4 Digit Display 14.2mm Size 50.3 x 19 x 8mm

Outer dimensions: 50.3 x 19 x 8mm

Digit height: 14.2mm (0.56 inch)

Polarity: Common anode/common cathode

Color: Super red

Available colors: Red, yellow green, pure green, blue, white, amber, orange

4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Applications

Widely used in set-top boxes, home appliances, instrument panels, temperature indicators, humidity indicators, electric meters, digital indicators and more.

Why Choose Us
  • Key raw materials sourced from the US, Japan and Taiwan
  • Full-automation ASM with automatic dice bonding and wire soldering machines
  • Specializing in full range, full color LED digital tubes, especially blue, green and white
  • Over 10 years of OEM and ODM experience
  • Customizable according to customer requirements for various sizes and colors
  • Excellent pre-sale and after-sale services
  • Stable performance, reasonable prices, quick delivery
Product Feature
  • Inquiry response within 24 hours
  • Experienced English-speaking staff
  • Over 10 years of OEM and ODM service experience
  • Protection of your sales area, design ideas and private information
  • Best quality and service for all order sizes
  • Advanced equipment and quality materials: ASM machines, good chips and epoxy resin
  • High brightness and low power consumption
  • Free replacements for any product problems caused by us
Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40～+85 ℃
Storage Temperature Range Tstg -40～+85 ℃
Solder Temperature (3 sec) Th 260 ℃
Technical Specifications (R-Super Red)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage (Per dice) Vf If=20mA 1.8
2.5 V
Reverse Voltage (Per dice) Vr Ir=10uA 5

V
Luminous Intensity (Per dice) Iv If=20mA 50
60 mcd
Spectrum Width Of Half Value △λ If=20mA
20
nm
Wavelength Dλ If=20mA 630
635 nm

LED working lifetime: 100,000 hours

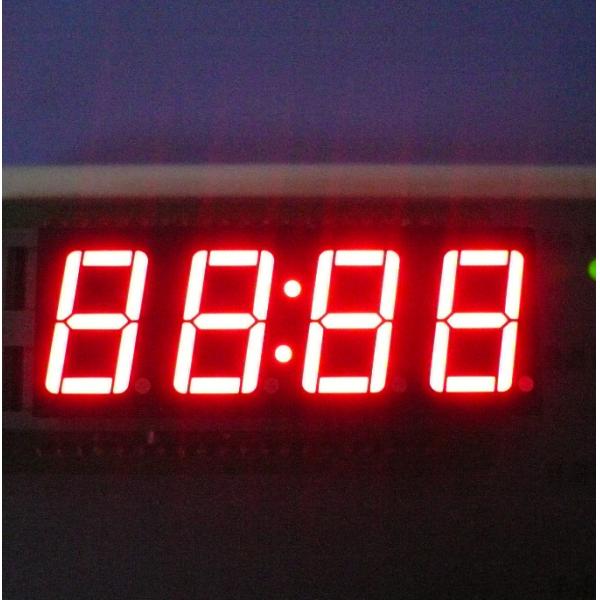

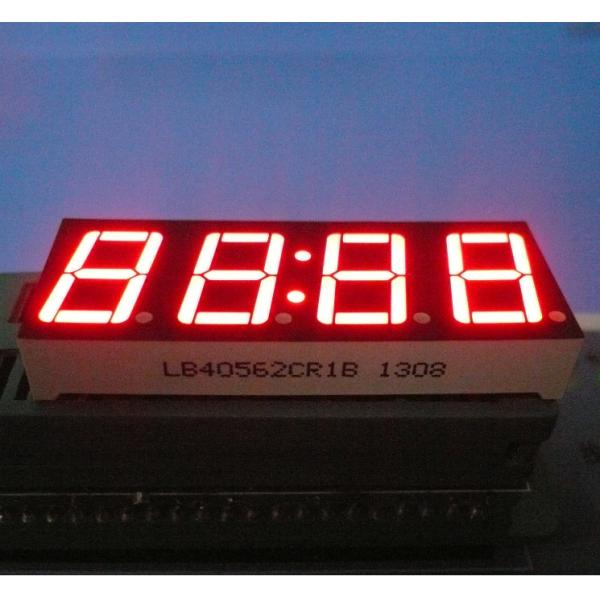

Product Images
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel 4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Competitive Advantages
  • Stable quality
  • Prompt delivery
  • Long lifespan
  • Cost competitive
  • Excellent pre-sale and after-sale service
  • No minimum order quantity (MOQ)
  • Various colors available
  • OEM / ODM acceptable
Manufacturing Facilities
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel 4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel 4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Company Exhibitions
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel 4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Quality Certifications
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Shipping & Logistics
4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel 4 Digit 7 Segment LED Display 14.2mm (0.56 inch) Common Anode/Cathode Super Red for Instrument Panel
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays (7 Segment LED display, 4 Digit LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, and more).
Q2: What are your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.
Q4: Before placing an order, can I get some samples for testing?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time: About 10-20 days; according to order quantity and raw materials. If you have an urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.
Q6: What are your terms of payment?
A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Details of payment methods are negotiable.
Q7: Can you quote me FOB prices?
A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.
Q8: How can I get your catalogue and price list?
A: Please let us know your email address or contact us from our website directly for our catalogue and price list.
Q9: Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will provide the charge to you as requested.
Q11: Can you do custom design products?
A: Yes, OEM & ODM services are available. We can customize the sizes, LED color and functional icons according to your requirements.
Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?
A: Yes, we will not show it or sell to others without your authorization.
Q13: What is the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What are the shipping methods?
A: We usually ship goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can also choose other methods that work best for you.
Q15: How do you ensure the quality of your products?
A: We are ISO 9001 QMS certified manufacturers with more than 20 years of experience. We conduct twice 100% testing for all our products before shipment.
