Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Super Red Digital Clock Led Display 0.56 4 Digit 80-100mcd Lumious Intensity
Specifications
Brand Name :
LIGHTBO
Model Number :
LB40562CUR1A
Certification :
RoHS&SGS&ISO
Place of Origin :
Shenzhen,China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
TT in advance& Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
10-15Days
Packaging Details :
EPE+CARTON
Digit height :
14.2mm (0.56 inch)
Packing size :
50.3 x 19 x 8mm
Polarity :
Common anode
Color :
super bright red
Digital height :
14.2mm
Forward voltage :
1.8-2.3V/led
Description

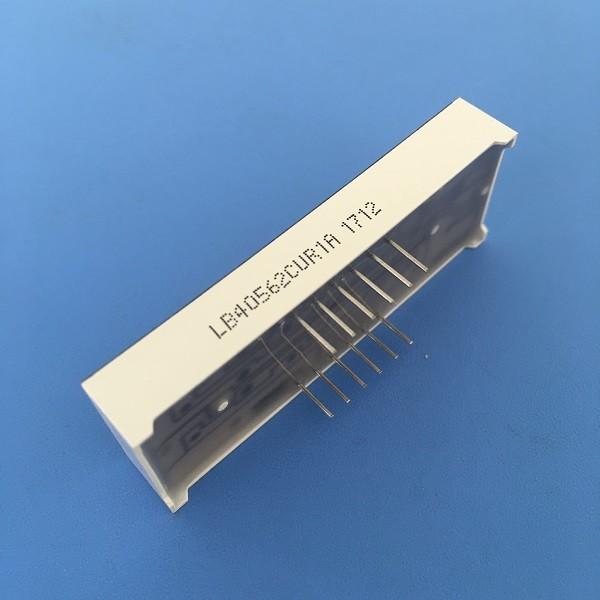

Super red common anode 0.56" 4 Digit LED Clock display for digital clock indicator


Product Descriptions:

  • Digital height: 14.2mm (0.56 inch)
  • Packing size: 50.3 x 19 x 8mm
  • Polarity: Common anode
  • white segments blacksurface
  • LED Color:Super bright red
  • Wavelegnth:630-635nm
  • Lumious intensity:80-100mcd
  • Forward voltage:1.8-2.5V/led
  • Forward current:10-15mA/led
  • Emittinf Colors: red, blue, green, amber, orange, white and yellow


Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 50 mW
Operating Temperature Range Topr -40～+85 ℃
Storage Temperature Range Tstg -40～+85 ℃
Solder Temperature(3 sec) Th 260 ℃


Code:R(Super Red)

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8 2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5 V
Luminous Intensty(Per dice) Iv If=20mA 50 60 mcd
Spectrum With Of Half Value △λ If=20mA 20 nm
Wavelength Dλ If=20mA 630 635 nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃
