Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OLED-T55-PG6B
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Type of backlight :
OLED
Resolution :
1080*3840
refresh rate :
120Hz
Panel transparency :
43%（Typ.）
Standard colours :
10bit(R),1.07 billon colors
Appearance Color :
White/Black/Customization
Brightness :
150-400nit
Contrast ratio :
135000：1
Viewing Angle :
178 °, 178 °
Audio system :
Built-in 10 W X 2 Speakers
Built-in wifi :
150Mbps 802.11n wifi integate
OS :
Android or Windows optional
Touchscreen type :
Projected Capacitive Touch screen
Touch points :
10 points
CPU :
14th Gen Intel I9－14900KF Proceesor
RAM :
16GB
SSD :
512GB
Discrete Graphics card :
12GB GIGABYTE 4070
Input Voltage :
AC 100~240V, 50hz-60hz
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype :
Desktop / Floor standing / Interactive(Optional)
Description

Hot Sale Digital Sign 55 Inch Ultra-thin High-definition 2x2 spliced Transparent OLED Screen

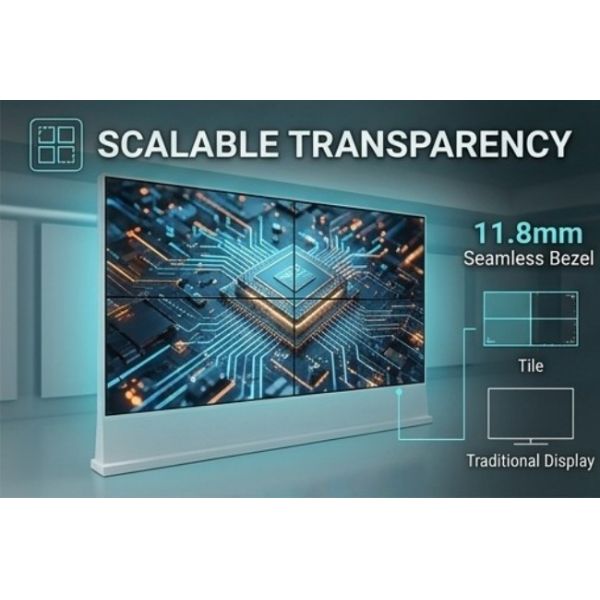

A 2x2 transparent OLED video wall combines two transparent OLED displays to form a 2x2 display area. Transparent OLED is an emerging display technology characterized by high brightness, high contrast, and wide viewing angles, while allowing the viewer to see objects behind the screen.


By combining two transparent OLED displays, a larger display area can be achieved, providing users with a richer visual experience. This splicing method allows for the creation of larger displays while maintaining transparency, enabling the displayed content to blend seamlessly with the environment and create a more immersive effect.

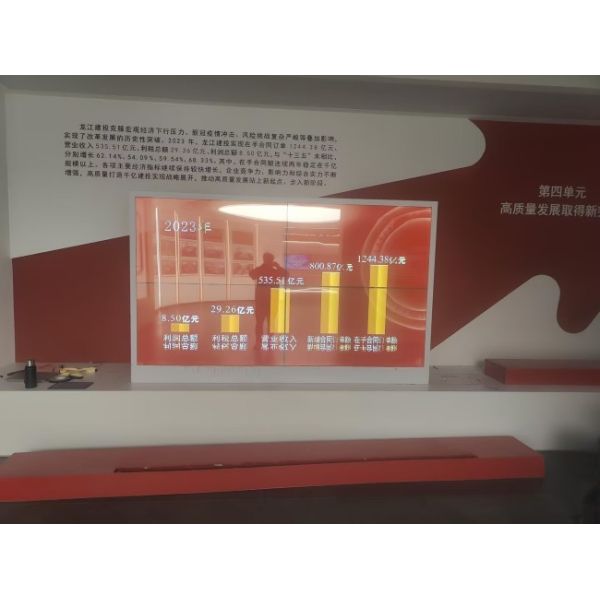

The 2x2 transparent OLED video wall has applications in various fields. For example, in the retail industry, it can be used as a product display window to attract customer attention.

In the smart home field, it can be used on display panels or mirrors to provide information display and intelligent control functions. In the advertising industry, the 2x2 transparent OLED video wall can be used for outdoor billboards to attract more attention.

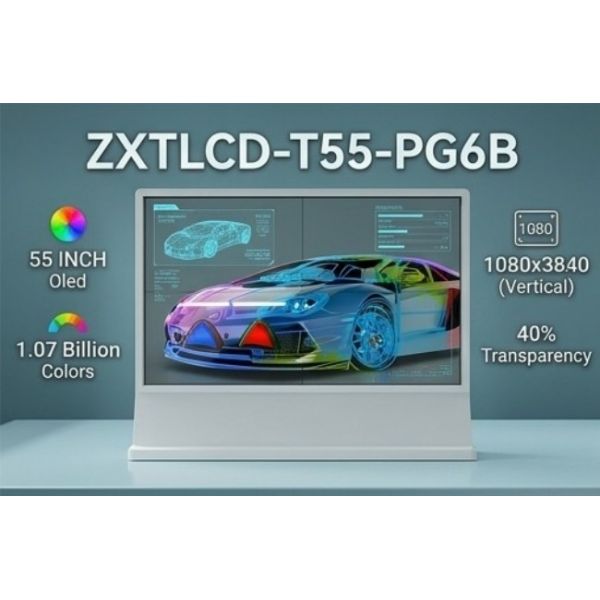

55-inch 2x2 spliced OLED transparent screen(ZXTLCD-T55-PG6B)
LCD Panel Parameters
Screen Size 55 inch
Panel type OLED
Resolution 1080*3840
Brightness 150-400nit

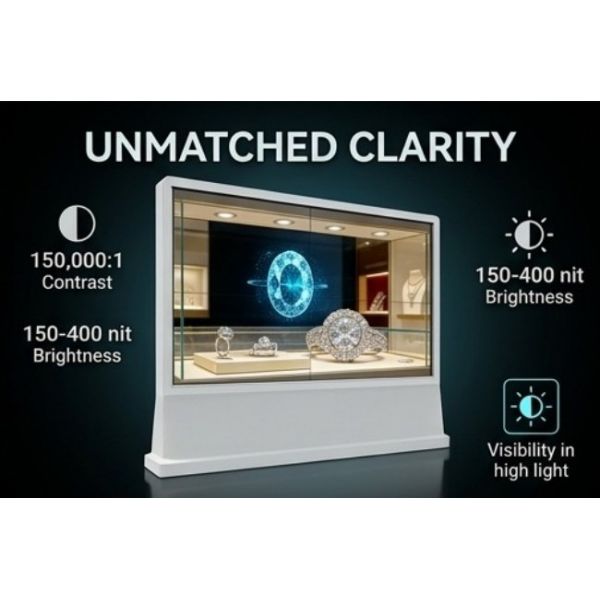

Contrast Ratio 150000:1
Viewing angle(up/down/left/right) 178°(H)/178°(V)
Response Time 0.1ms(Gray To Gray)
Display color 10bit(R),1.07 billon colors
Onboard interface

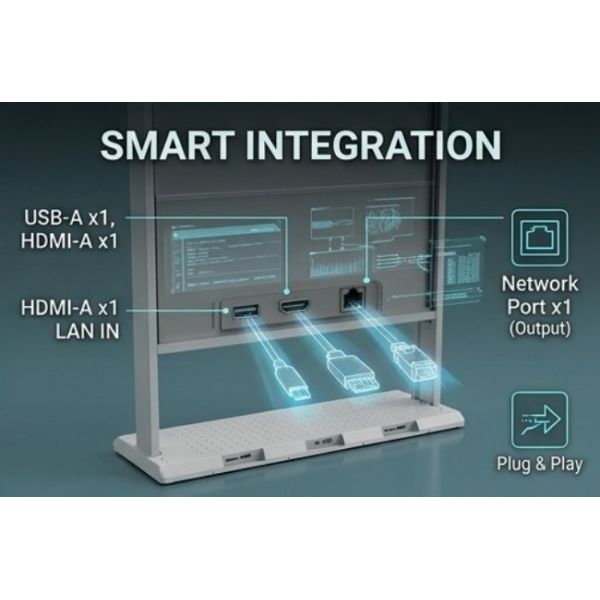

Input Interface USB*1 + HDMI*1 +network port*1
Output interface network port*1
Touch Method
Capacitive Touch screen Default 10 points Capacitive Touch
Power Specifications
Power supply AC 100-240V
Total System Power Consumption <100W
Machine Operating Parameters

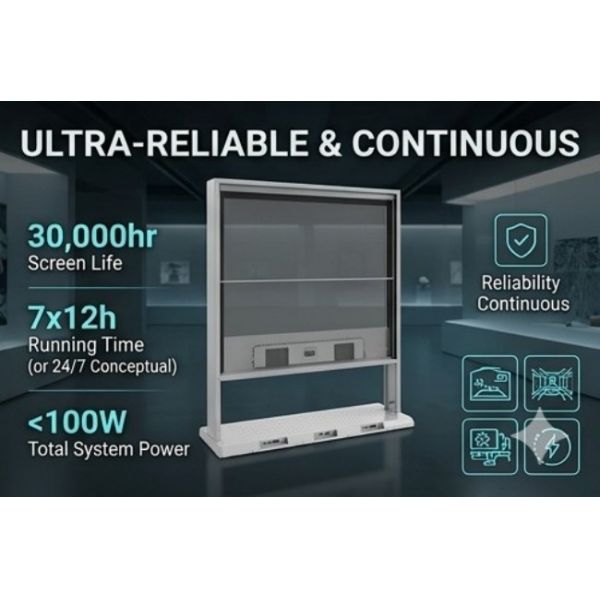

running time 7*12h
Screen life 30000h
Operating temperature 0℃~40℃
Operating Humidity 20%~80%
structure
Material Aluminum+Tempered Glass+Metal
external dimensions 1263*1912(mm)
Overall dimensions TBD
Installation Method Base installation
Net weight / Gross weight TBD
Accessories
Base, power cord, remote control, certificate of conformity and warranty card
other
After-Sales Service 1-Year Warranty
