Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OLED-055-MP6A
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Type of backlight :
OLED
Resolution :
1920*1080
refresh rate :
120Hz
Panel transparency :
43%（Typ.）
Standard colours :
1.07B(10bit)
Appearance Color :
White/Black/Customization
Brightness :
200-600cd/㎡
Contrast ratio :
100000：1
Viewing Angle :
178 °, 178 °
Audio system :
Built-in 10 W X 2 Speakers
Built-in wifi :
150Mbps 802.11n wifi integate
OS :
Android or Windows optional
Touchscreen type :
Projected Capacitive Touch screen
Touch points :
10 points
CPU :
14th Gen Intel I9－14900KF Proceesor
RAM :
16GB
SSD :
512GB
Discrete Graphics card :
12GB GIGABYTE 4070
Input Voltage :
AC 100~240V, 50hz-60hz
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype :
Desktop / Floor standing / Interactive(Optional)
Description

Factory Direct Selling Indoor HD 55 Inch Touch transparent oled screen


I. Why Use Transparent OLED Displays?


Transparent OLED displays, being self-emissive, offer high transparency and superior image quality, providing new value to consumers.


II. Application Scenarios of Transparent OLED Displays?


Transparent OLED displays can be adapted to various fields, creating new markets and providing greater new value to customers.


Application Scenarios of Transparent OLED Displays—Transportation, Retail, Enterprise, Home

Using transparent OLED displays in vehicles will make designs more technologically advanced and save space;


Transparent OLED displays will provide customers with more convenient services;


Transparent OLED displays will provide a sense of openness, save space, and improve work efficiency;


Transparent OLEDs will give home decoration a high-end feel and enhance the value of buildings.


III. The Value of Transparent OLED Displays


1. Displays that integrate seamlessly with interior design


2. Displays that encourage customers to visit stores


3. Displays that provide customers with a comfortable experience

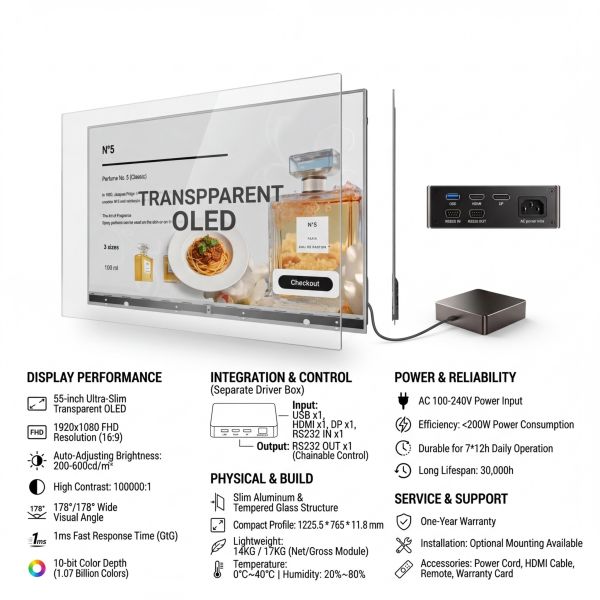

55 inch OLED module transparent display(ZXTLCD-055-MP6A)
LCD Panel Parameters
Screen Size 55 inch
Panel type OLED
Resolution 1920*1080
Brightness 200-600cd/㎡
Contrast Ratio 100000:1
Viewing angle(up/down/left/right) 178°/178
Onboard interface
Input Interface USB*1 + HDMI*1+DP*1 + RS232 IN*1
Output interface RS232 OUT*1
Touch Method
Capacitive Touch screen Default 10 points Capacitive Touch
Power Specifications
Power supply AC 100-240V
Total System Power Consumption ＜200W
Machine Operating Parameters
running time 7*12h
Screen life 30000h
Operating temperature 0℃~40℃
Operating Humidity 20%~80%
structure
Material Aluminum+Tempered Glass

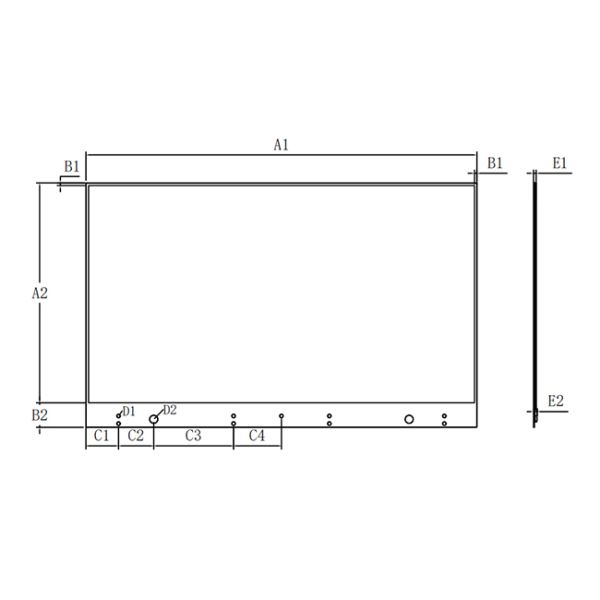

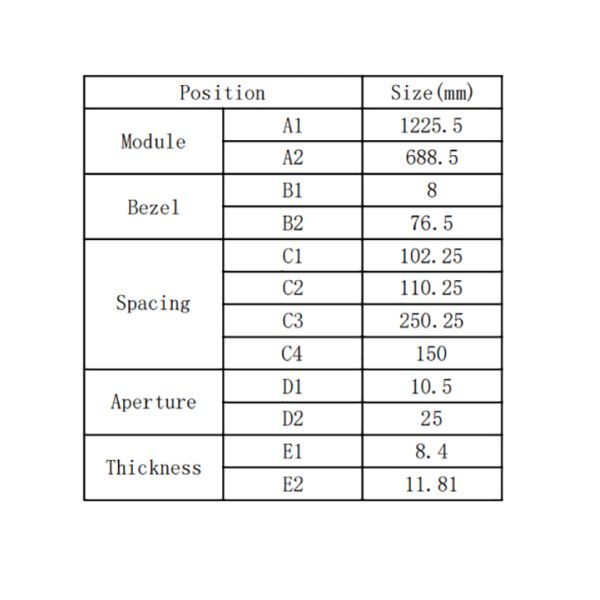

external dimensions 1225.5*765*11.8(mm)
Overall dimensions TBD
Installation Method Optional
Net weight 14KG/17KG
Accessories
Adapter, HDMI cable, certificate of conformity and warranty card
other
After-Sales Service 1-Year Warranty
