Brand New 55-inch flexible HD Liftable Transparent OLED Screen
Brand New 55-inch flexible HD Liftable Transparent OLED Screen
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OLED055V005
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Type of backlight :
OLED self-luminous
Resolution :
1920*1080
refresh rate :
120Hz
Panel transparency :
43%
Standard colours :
1.07B 10Bit
Appearance Color :
White/Black/Customization
Brightness :
200-600 (nits)
Contrast ratio :
8ms
Viewing Angle :
178 °, 178 °
Audio system :
Built-in 10 W X 2 Speakers
Built-in wifi :
150Mbps 802.11n wifi integate
OS :
Android or Windows optional
Touchscreen type :
Projected Capacitive Touch screen
Touch points :
10 points
CPU :
14th Gen Intel I9－14900KF Proceesor
RAM :
16GB
SSD :
512GB
Discrete Graphics card :
12GB GIGABYTE 4070
Input Voltage :
AC 100~240V, 50hz-60hz
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype :
Desktop / Floor standing / Interactive(Optional)
Description

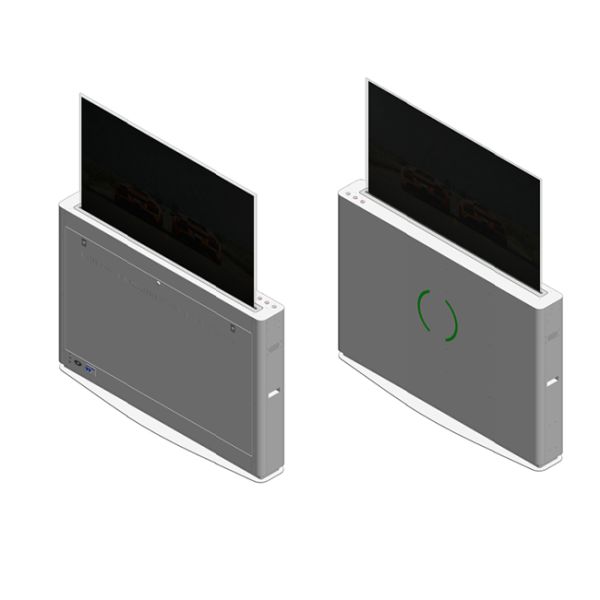

Brand New 55-inch flexible HD Liftable Transparent OLED Screen


The 55-inch Liftable Transparent OLED Screen: More Than Just a Display—It’s a "Digital Window"


When OLED meets an exceptional 43% transparency, images and physical objects merge to create an unprecedented sense of immersion. With effortless lifting and seamless retraction—when not in use, the tabletop remains pristine; when needed, a single touch raises the screen to unlock a new dimension of interaction between the virtual and the real.


Why Choose the 55-inch Liftable Transparent OLED Screen?


Transparent, Yet Uncompromising on Image Quality


Featuring 43% transmittance, 1920×1080 resolution, and a 100,000:1 contrast ratio, text and visuals appear to float above the background, making information delivery more vivid and engaging.


Lifting Functionality: More Than Just a Gimmick


Powered by a miniature motor and a precision rack-and-pinion guide rail system, the mechanism operates smoothly and silently. It supports multiple control methods—including remote control, RS232, and physical buttons—allowing for seamless integration into centralized control systems.


Touch Interaction: Instant Response for Effortless Writing


Equipped with 10-point capacitive touch technology, the screen boasts a response time of ≤5ms and requires no driver installation for immediate use. Protected by 5–8mm tempered glass, it offers a smooth writing experience, making it perfectly suited for exhibitions, educational settings, and interactive guided tours.


Slim and Sleek: Sophistication in Simplicity


The display panel measures a mere 1.78mm in thickness and features a three-sided narrow-bezel design. With a brushed silver finish on the top and bottom edges, and a matte black finish on the sides, it blends harmoniously into any high-end interior space without looking out of place.


Built to Last: Reliability You Can Trust


Incorporating an intelligent anti-image retention engine, the screen is protected against ghosting and burn-in effects. Designed for continuous operation—running 18 hours a day, 7 days a week—it boasts a service life of over 30,000 hours.


screen parameters

Panel size

55 inches.

Panel type

OLED

display area

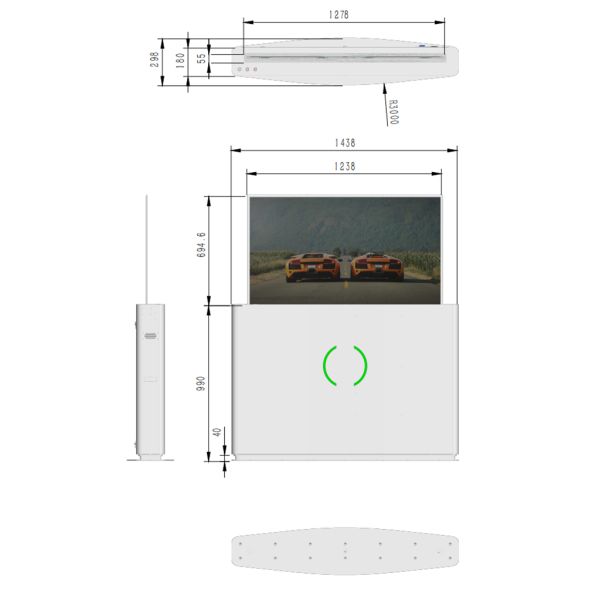

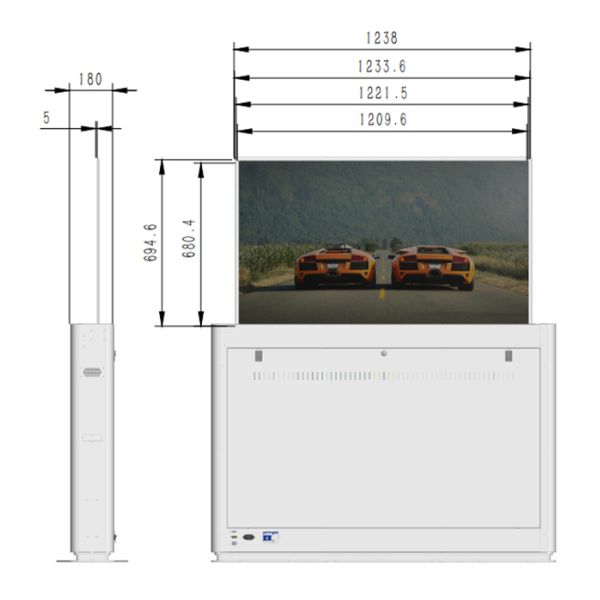

1209.6 X 680.4mm

external dimensions

1221.5Mm × 699.35mm × 1.78mm (width × height × thickness)

transmittance

43%

viewing angle

178 °, 178 °

static contrast

100000:1 (Typ.) Transmission

Dynamic Contrast

200000:1 (Typ.) Transmission

patchwork

Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom)

screen scale

16:9

brightness

200-600 (nits)

Best resolution

1920*1080

Screen life

≥ 30000 hours

power

≤ 190W

Display color

10-Bit, 1.07B (1B = 1 billion)

Speaker

8Ω/5W * 2

screen gross weight

Screen weight 2.4kg

Gross weight of the whole machine

to be determined

environment

Working temperature 1 ℃~ 45 ℃

working humidity

30%~80%

running time

18 hours x 7 days

Ambient height

(Altitude) 0~ 5000m

response time

8ms

working voltage

100V-240VAC, 50/60Hz

Fitting method

frame sticker

Fitting method (optional)

Full fit

Driver Board

input interface

HDMI IN

USB

USB 2.0

DP

DP IN

weight

0.4Kg

Control signal IN

RS232 serial port (RJ45)

Control signal OUT

RS232 serial port (RJ45)

function

With splicing function

protect

Anti-afterimage, anti-burn, repair function

Touch screen parameters: capacitance optional

touch technology

Capacitive touch technology

positioning accuracy

3Mm

Installation method

Built-in integrated

writing method

Finger ≥ 5mm

touch points

10 touch writing

Writing screen medium

5-8Mm tempered high transparency glass

response speed

≤ 5ms

computer driven

drive-free

mode of communication

USB

service life

≥ 60 million times

PC configuration (optional)

main board

Intel Core

CPU

4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional)

Memory

4G/8G/16G-DDR3 (optional)

Hard disk

SSD120G/240G/480-HDD500G/1T/2T (optional)

nuclear display

Intel HD Graphics 4000

Backplane I/O

1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output)

Operating System

Windows 7/Windows 10 operating system

Android configuration (optional)

Main board model

3568/3288/3588

Memory

2G/4G/8G optional

storage

16G/32G/64G/128G optional

interface

1 × USB2.0, 1 × USB3.0,1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket

Packing and packing list

Package size

Honeycomb box: 148 * 22 * 170CM

Air box:/

Weight information

Bare metal weight: 80KG

Packing weight (bare metal + honeycomb box): 145KG

name

With PC/Android

Specifications

quantity

Remarks

transparent display

55 inch OLED transparent screen

1 piece

system

Customized according to actual needs (built-in)

1 set

remote control

Universal version (without battery)

1

Power cord

National standard 1.5 meters

Article 1

HDMI extension cable Note ②

optional

Article 1

Touch the USB extension cable Note ②

optional

Article 1

HDMI signal cable Note ②

optional

Article 1

Warranty card certificate

Chinese version

1 sheet

Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment.
