Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-LD550LA
Certification :
CE/Rohs/FCC
Place of Origin :
ShenZhen, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Waterproof grade :
IP65
Brightness :
2000nits
Resolution :
1920 X 1080 / 3840 X 2160
Panel type :
TFT-LCD with WLED backlight
Touchscreen Type :
Capacitive
Ventilation Cooling system :
Built-in Fan or Air Conditioner
Cabinet material :
1.5mm zinc coated steel, waterproof and anti-dust design
Protection Glass :
with 6mm Tempered explosion-proof Glass
Input Voltage :
AC 100~240V, 50hz-60hz
Network support :
Wifi /3G/4G/Ethernet Optional
Leakage protective device :
Defend Electricity Leakage
Operating system :
Android / Windows Optional
Description

Manufacturer wholesales 55-inch multimedia canopy-style vertical outdoor waterproof advertising machine

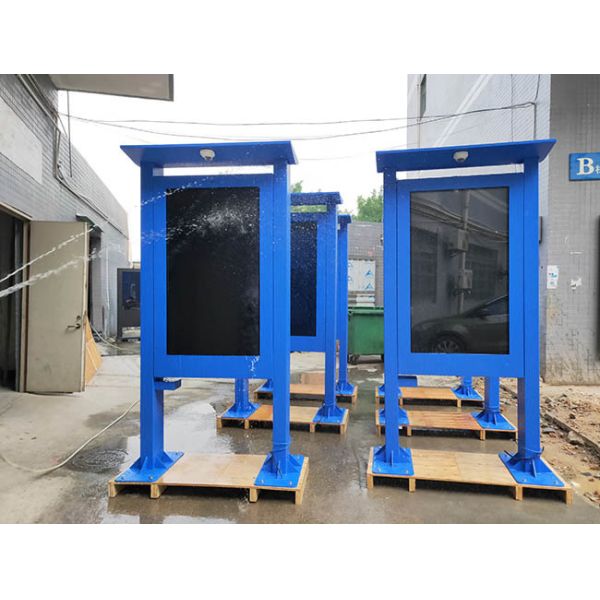

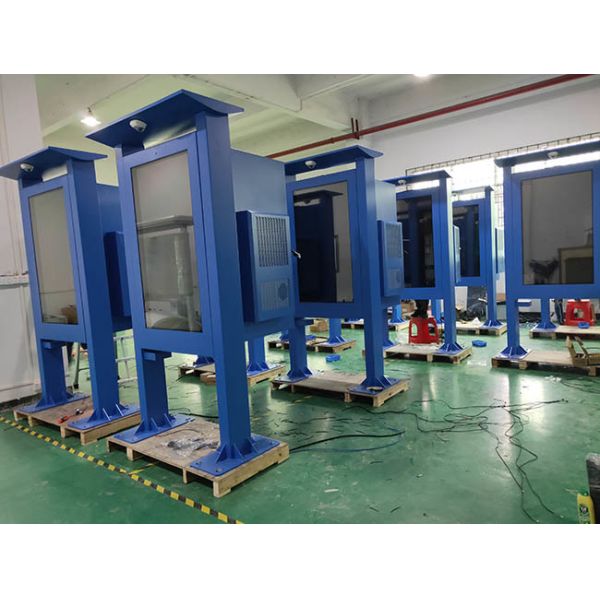

This 55-inch vertical outdoor lcd display panel with a built-in rain canopy perfectly combines a multimedia LCD display with a waterproof canopy, making your advertising information more eye-catching and durable, providing strong support for your brand promotion.


Manufacturer wholesales 55-inch multimedia canopy-style vertical outdoor lcd display panel


Features of Outdoor Digital Signage:


1: The world's first adoption of intelligent variable-frequency air conditioning temperature control, constant temperature, energy-saving, and long lifespan on wide voltage startup;


2: All-weather, high resolution, high contrast, high brightness, visible in strong light, greatly enhancing the sense of image hierarchy. Even under scorching sun in the summer, it does not affect your visual experience at all;


3: Automatic light-sensing control, automatically adjusts brightness according to the surrounding environment, energy-saving and environmentally friendly, particularly suitable for working in harsh environments (maximizes energy efficiency);


Manufacturer wholesales 55-inch multimedia canopy-style vertical outdoor lcd display panel


55-inch vertical outdoor lcd display panel with multimedia LCD display makes your advertisements more eye-catching!

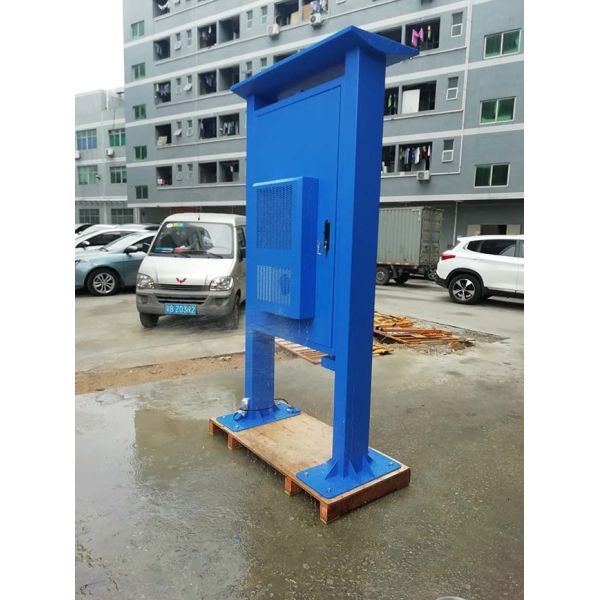

Outdoor rain canopy design, rain and sun protection: The equipment is equipped with an outdoor rain canopy, effectively protecting the advertising display in rainy weather or under hot sunlight, ensuring the continuous display of advertising content.


Multimedia LCD display, high-definition and stunning: The multimedia LCD screen provides high-definition picture quality, making advertising content more impactful, attracting the attention of passersby, and strengthening brand image promotion.


Manufacturer wholesales 55-inch multimedia canopy-style vertical outdoor lcd display panel


All-in-one design, simple and beautiful: The equipment adopts an all-in-one design, with a simple and beautiful appearance, not taking up too much space, suitable for advertising displays in various outdoor occasions.


Electronic advertising screen, easy updates: Through remote control and network connection, you can easily update advertising content, adjust promotional information at any time, and keep the information timely.


Manufacturer wholesales 55-inch multimedia canopy-style vertical outdoor lcd display panel


Waterproof, sun-resistant, and durable for optimal display: The equipment is designed to be waterproof and sun-resistant, ensuring excellent durability and adaptability to various outdoor environments, guaranteeing the continuous display of your advertising content.


This 55-inch vertical outdoor lcd display panel, with its integrated outdoor canopy, ensures your advertising information is clearly displayed in any weather. Whether in commercial plazas, community gates, public transportation stops, or exhibition venues, it will significantly enhance your brand promotion. Let the multimedia LCD screen add the finishing touch to your advertising information and enhance your promotional effectiveness.


55 inch Android outdoor all-in-one machine (air conditioning model) specification sheet (English version)
Specications
The containment structure The material and feature of shell IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design.
Glass feature with 6mm Tempered explosion-proof Glass above the screen panel
LCD Panel Screen Size 55 inch
Display area 1214mm(H) X 684mm(V)
Aspect Ratio 9:16
LCD Type TFT-LCD
Max Resolution 1920X 1080
Display color 16.7M
Brightness 2000cd/~2500 cd/
Contrast Ratio 4000:1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
Field Frequency 60Hz
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Touch Overlay for Interactivity Touch style Projected Capacitive Touch screen
Touch points 10 points
Ambient light sensor auto dimming, with light sensor, automatically adjust the brightness.
Drawer-type Android Media Player box Configuration Processor Chip RK3399, six core
RAM 4GB
Flash Memory Card 32GB
Wifi and 4G Yes
Version Android 9.0
Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Onboard interface Network port RJ45, 10M/100M Adaptive Ethernet
HDMI 1
USB 2
Camera Built-in 5 Megapixel Camera with 1920X1080 Resolution
Speakers Dual side speakers for Audio
ECU Switch power supply Industrial Power supply
Waterproof speaker High quality waterproof 10W speaker
Thunder Preventer The tree-level lightning protection
Leakage protective device Defend Electricity Leakage
Timer Set up on/off time on day/week/month
Outdoor OMC system(optional) inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
Problem and staus monitoring software included.
Touble shooting by software included.
Use softwae Remote Check key working performance by Group
Unnormal work alarm generation

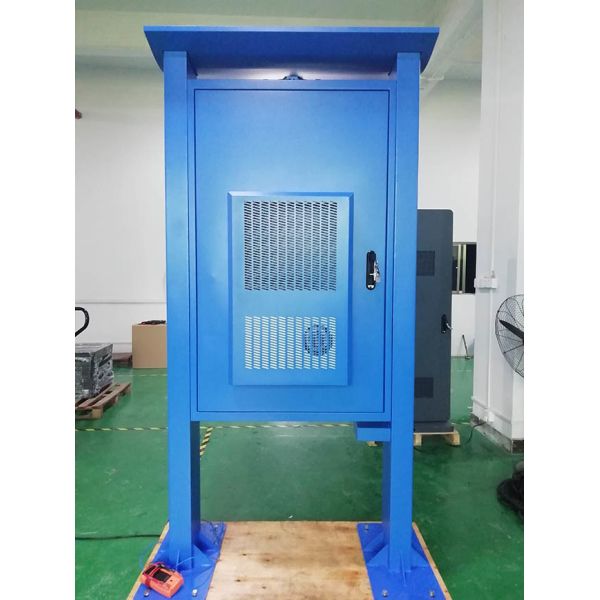

Built-in Air conditioner for Ventilation Intelligent Straight ventilation Cooling system Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically
Environment Working temperature 0 ~ 50
Working humidity 5% ~ 95%
Working Voltage AC 100 ~240v , 50Hz
Max Power Consumption 280W
Product size / Net weight To be determined
Outer Package size and Gross weight


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
