Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OF430WD
Certification :
CE/Rohs/FCC
Place of Origin :
ShenZhen, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
43 inch
Waterproof grade :
IP65
Resolution :
1920 X 1080 / 3840 X 2160
Brightness :
2000nits
Panel type :
TFT-LCD with WLED backlight
Touchscreen Type :
Capacitive
Ventilation Cooling system :
Built-in Fan or Air Conditioner
Cabinet material :
1.5mm zinc coated steel, waterproof and anti-dust design
Protection Glass :
with 6mm Tempered explosion-proof Glass
Input Voltage :
AC 100~240V, 50hz-60hz
Timer :
Set up on/off time on day/week/month
Operating system :
Android / Windows Optional
Network support :
Wifi /3G/4G/Ethernet Optional
Thunder Preventer :
The tree-level lightning protection
Description

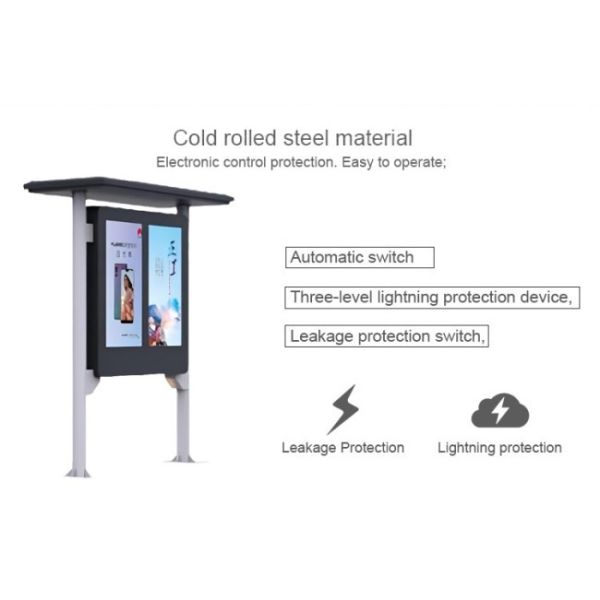

43 inch multimedia canopy display screen, outdoor lcd display panel, waterproof player


In a highly competitive market, the 43-inch outdoor lcd display panel with dual screens and a canopy stands out with its unique design and powerful features. As an innovative multimedia advertising machine, it combines the features of a canopy and dual-screen display, bringing a brand-new experience to your advertising display.


43 inch multimedia canopy display screen, outdoor lcd display panel waterproof player

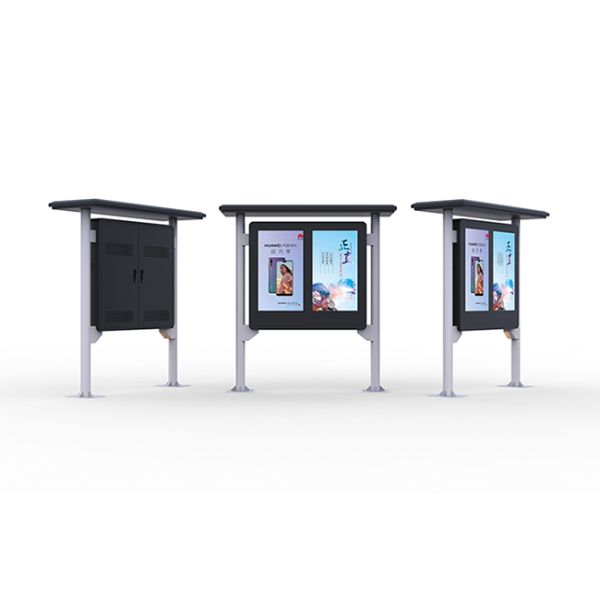

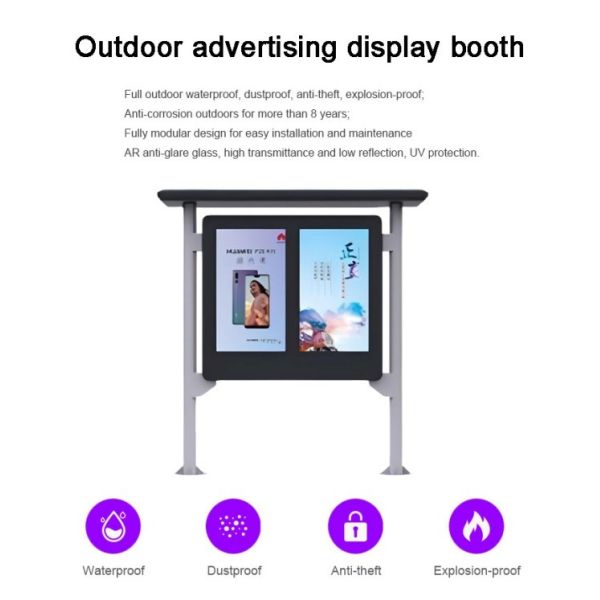

Creative Column Canopy Version, Stunning Dual Screens: 43-inch outdoor lcd display panel


Eye-catching and Unique:


This dual-screen canopy advertising machine boasts an eye-catching design. Two advertising machines are cleverly spliced ​​together to form a dual-screen display, making the advertising content more impactful. It is also installed under a large canopy, providing rain and sun protection for passersby, balancing practicality and visual appeal.


43 inch multimedia canopy display screen, outdoor lcd display panel waterproof player


Multiple Displays, Endless Brilliance:


The dual-screen design allows your advertising content to be displayed more vividly. You can play multiple advertisements simultaneously, attracting the attention of different audiences and increasing brand exposure. Furthermore, this advertising machine supports the playback of multimedia formats such as images and videos, making your advertising content more creative and diverse.


43 inch multimedia canopy display screen, outdoor lcd display panel waterproof player



Powerful Hardware, Stable Operation:

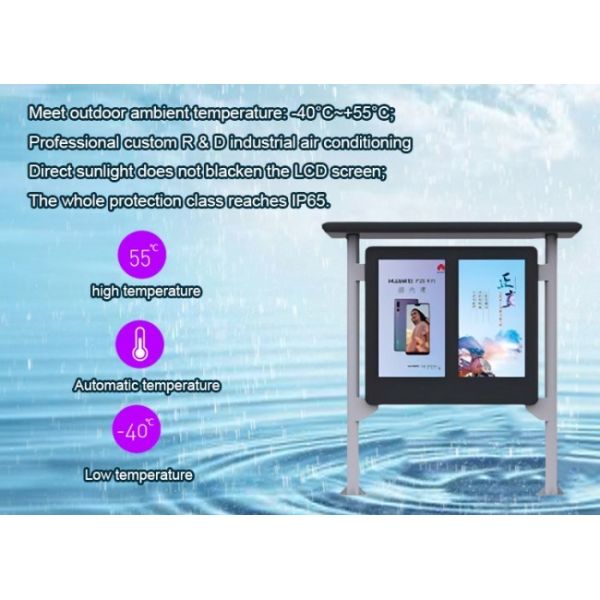

The 43-inch outdoor lcd display panel with dual screens and a canopy is equipped with powerful hardware, ensuring stable operation and high-definition display of advertising content. Whether in the sweltering summer or the windy autumn, its waterproof design and canopy protection guarantee normal operation, keeping your advertisement at its best.


43 inch multimedia canopy display screen, outdoor lcd display panel waterproof player

43 inch multimedia canopy display screen, outdoor lcd display panel waterproof player


Wide Application, Exquisite Charm:


This product is suitable for multiple scenarios, showcasing its unique charm in everything from busy transportation hubs to quiet parks. Through the creative design of the dual-screen canopy version, your advertisement not only attracts attention but also provides practical functionality for passersby, gaining more focus and attention.


43 inch multimedia canopy display screen, outdoor lcd display panel waterproof player


With its creative design, multiple display options, and stable performance, the 43-inch outdoor lcd display panel with dual screens and a canopy brings unlimited possibilities to your advertising, allowing your brand to shine continuously in various scenarios and achieve greater marketing value!


43-inch Standalone Outdoor All-in-One Air Conditioner (Air-cooled) Specification Sheet
Specications
The containment structure The material and feature of shell IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design.
Glass feature with 6mm Tempered explosion-proof Glass above the screen panel
LCD Panel Screen Size 43 inch
Display area 530mm(H) X 938mm(V)
Aspect Ratio 9:16
LCD Type TFT-LCD
Max Resolution 1080 X 1920
Display color 16.7M
Brightness 1500 cd/ ~ 2000cd/
Contrast Ratio 1000:1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
Field Frequency 60Hz
Buit-in Media Player Ads updated type USB copy by manual operation
RAM 2GB
Flash memory card 16GB
Plug-and-Play Plug-and-play /No windows OS, Auto loop play when power on
Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Interface HDMI 1
USB 2
SD cassette TF(Micro SD )card, scalable 32G
ECU Switch power supply Industrial Power supply
Waterproof speaker High quality waterproof 10W speaker
Thunder Preventer The tree-level lightning protection
Leakage protective device Defend Electricity Leakage
Timer Set up on/off time on day/week/month
Built-in Fan for Ventilation Intelligent Straight ventilation Cooling system Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically
Environment Working temperature below 40 ~ + 55
Working humidity 5% ~ 95%
Working Voltage AC 100 ~240v , 50Hz
Max Power Consumption 280W
The dimension of machine To be determined
Outer Package size and Gross weight


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
