Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OF550BD
Certification :
CE/Rohs/FCC
Place of Origin :
ShenZhen, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Waterproof grade :
IP65
Brightness :
2000nits
Resolution :
1920 X 1080 / 3840 X 2160
Panel type :
TFT-LCD with WLED backlight
Touchscreen Type :
Capacitive
Ventilation Cooling system :
Built-in Fan or Air Conditioner
Cabinet material :
1.5mm zinc coated steel, waterproof and anti-dust design
Protection Glass :
with 6mm Tempered explosion-proof Glass
Input Voltage :
AC 100~240V, 50hz-60hz
Leakage protective device :
Defend Electricity Leakage
Timer :
Set up on/off time on day/week/month
Appearance Color :
White/Black/Customization
Network support :
Wifi /3G/4G/Ethernet Optional
Description

55 inch vertical high brightness waterproof outdoor canopy advertising machine


In modern society, advertising has become an indispensable method for brand promotion and information dissemination. The 55-inch outdoor lcd digital signage, with its practical design and reliable hardware, has become an ideal choice for advertising and display in various locations.


55 inch vertical high brightness waterproof outdoor canopy advertising machine


Smart Advertising, Multi-Scenario Application: 55-inch outdoor lcd digital signage


Unique Appearance, Eye-Catching:

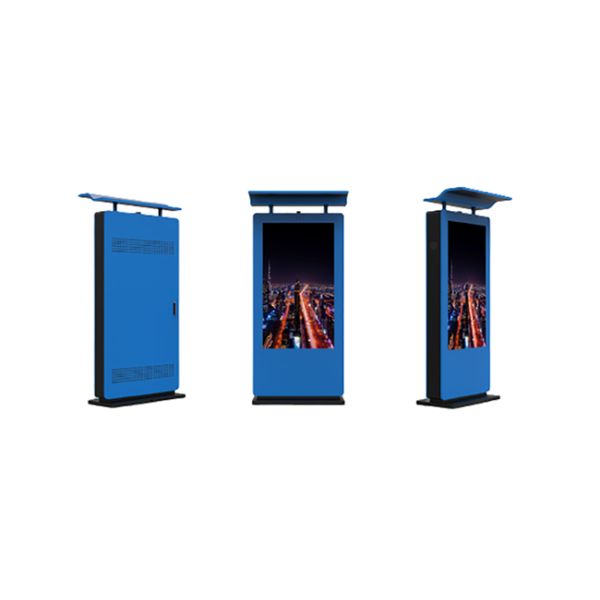

This advertising machine features a vertical design combined with a canopy exterior, providing waterproofing and adding a unique touch to the advertising content. Its stylish and sophisticated appearance attracts attention and interest from passersby in commercial areas, plazas, and pedestrian streets.


55 inch vertical high brightness waterproof outdoor canopy advertising machine

55 inch vertical high brightness waterproof outdoor canopy advertising machine


High Brightness and High Definition, Vivid Images:


Equipped with a high-brightness, high-definition LCD screen, advertising content is displayed more vividly and clearly. Whether it's images, videos, or dynamic advertisements, they all demonstrate excellent effects in outdoor environments, attracting viewers' attention.


Multi-functional, Meeting Needs:


This advertising machine has multiple functions and can be used for advertising and display needs in different locations. Whether in commercial plazas, public transportation stations, community centers, or high-speed rail platforms, it provides strong support for brand promotion and event promotion.


55 inch vertical high brightness waterproof outdoor canopy advertising machine

55 inch vertical high brightness waterproof outdoor canopy advertising machine


Reliable and Durable, Adaptable to Multiple Environments:


The unpredictable outdoor environment demands stable performance from equipment. The 55-inch outdoor lcd digital signage boasts hardware advantages such as waterproofing, high brightness, and lightning protection, ensuring stable operation in various weather conditions and providing reliable support for advertising displays.


Multi-Scenario Applications, Wide Impact:


Whether in a bustling downtown commercial district or in public places such as communities and parks, the 55-inch outdoor lcd digital signage can fully leverage its promotional effectiveness, providing strong support for brand promotion, information dissemination, and event advertising.


55 inch vertical high brightness waterproof outdoor canopy advertising machine

55 inch vertical high brightness waterproof outdoor canopy advertising machine

55 inch vertical high brightness waterproof outdoor canopy advertising machine


With its unique appearance, high-brightness, high-definition display, and multi-functional features, the 55-inch outdoor lcd digital signage is an ideal choice for advertising in various locations. Whether for commercial advertising or community information displays, it delivers superior results, empowering your promotional activities!


55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet
Specications
The containment structure The material and feature of shell IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design.
Glass feature with 6mm Tempered explosion-proof Glass above the screen panel
LCD Panel Screen Size 55 inch
Display area 1214mm(H) X 684mm(V)
Aspect Ratio 9:16
LCD Type TFT-LCD
Max Resolution 1920X 1080
Display color 16.7M
Brightness 2000cd/~2500 cd/
Contrast Ratio 4000:1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
Field Frequency 60Hz
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Touch Overlay for Interactivity Touch style Projected Capacitive Touch screen
Touch points 10 points
Ambient light sensor auto dimming, with light sensor, automatically adjust the brightness.
Drawer-type Android Media Player box Configuration Processor Chip RK3399, six core
RAM 4GB
Flash Memory Card 32GB
Wifi and 4G Yes
Version Android 9.0
Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Onboard interface Network port RJ45, 10M/100M Adaptive Ethernet
HDMI 1
USB 2
Camera Built-in 5 Megapixel Camera with 1920X1080 Resolution
Speakers Dual side speakers for Audio
ECU Switch power supply Industrial Power supply
Waterproof speaker High quality waterproof 10W speaker
Thunder Preventer The tree-level lightning protection
Leakage protective device Defend Electricity Leakage
Timer Set up on/off time on day/week/month
Outdoor OMC system(optional) inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
Problem and staus monitoring software included.
Touble shooting by software included.
Use softwae Remote Check key working performance by Group
Unnormal work alarm generation
Built-in Air conditioner for Ventilation Intelligent Straight ventilation Cooling system Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically
Environment Working temperature 0 ~ 50
Working humidity 5% ~ 95%
Working Voltage AC 100 ~240v , 50Hz
Max Power Consumption 280W
Product size / Net weight To be determined
Outer Package size and Gross weight
