Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OF320PP
Certification :
CE/Rohs/FCC
Place of Origin :
ShenZhen, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
32 inch
Waterproof grade :
IP65
Resolution :
1920 X 1080 / 3840 X 2160
Brightness :
2000nits
Panel type :
TFT-LCD with WLED backlight
Touchscreen Type :
Capacitive
Ventilation Cooling system :
Built-in Fan or Air Conditioner
Cabinet material :
1.5mm zinc coated steel, waterproof and anti-dust design
Protection Glass :
with 6mm Tempered explosion-proof Glass
Input Voltage :
AC 100~240V, 50hz-60hz
Timer :
Set up on/off time on day/week/month
OSD language :
Multi-language Support
Thunder Preventer :
The tree-level lightning protection
Leakage protective device :
Defend Electricity Leakage
Description

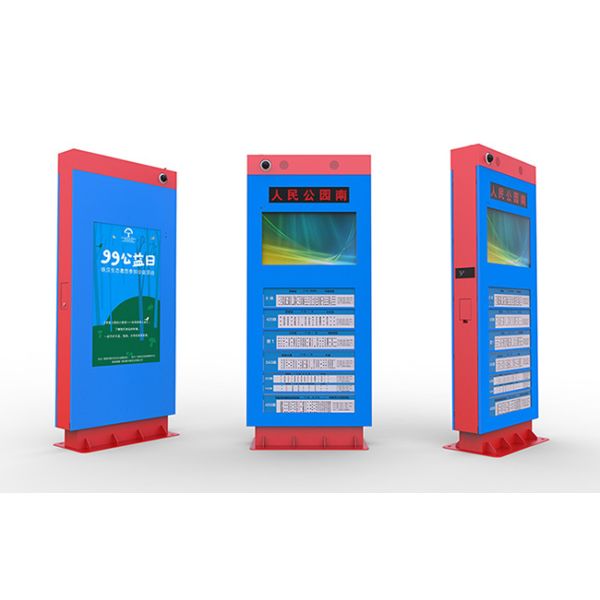

32 inch interactive intelligent electronic station sign outdoor lcd display panel


In today's digital age, bus stops are no longer just simple waiting areas, but intelligent hubs for urban information transmission. The 32-inch outdoor lcd display panel for bus stops is specifically designed for bus stops, dedicated to bringing an unprecedented experience to your advertising.


32 inch interactive intelligent electronic station sign outdoor lcd display panel


Leading Technology: The 32-inch outdoor lcd display panel Empowers Intelligent Bus Stop Displays

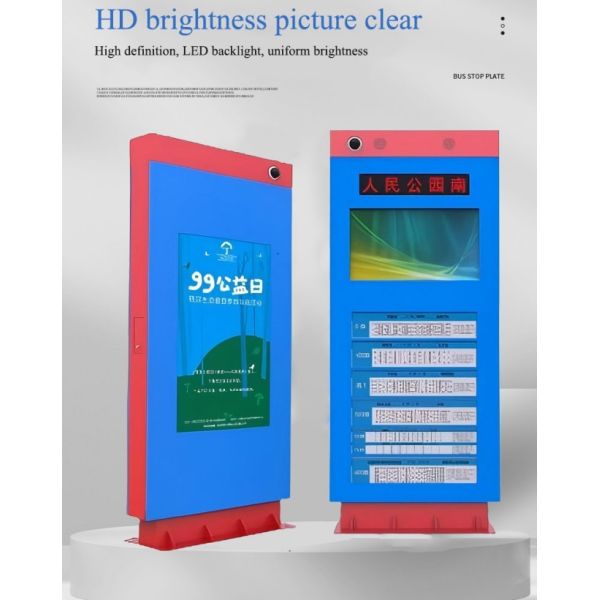

High-Definition LCD Screen, Leading a New Trend in Advertising


The 32-inch outdoor lcd display panel is equipped with a high-definition LCD screen, offering both clarity and brightness, ensuring that the advertising image remains clearly visible even in strong sunlight. Whether it's images or videos, they are presented with optimal effect, attracting the attention of passersby.


32 inch interactive intelligent electronic station sign outdoor lcd display panel


Waterproof Design, Stable and Reliable


Bus stops often face various weather challenges, but our vertical outdoor advertising display features an IP65 protection design, maintaining stable operation in wind and rain, ensuring that advertising information is consistently displayed and unaffected by severe weather.

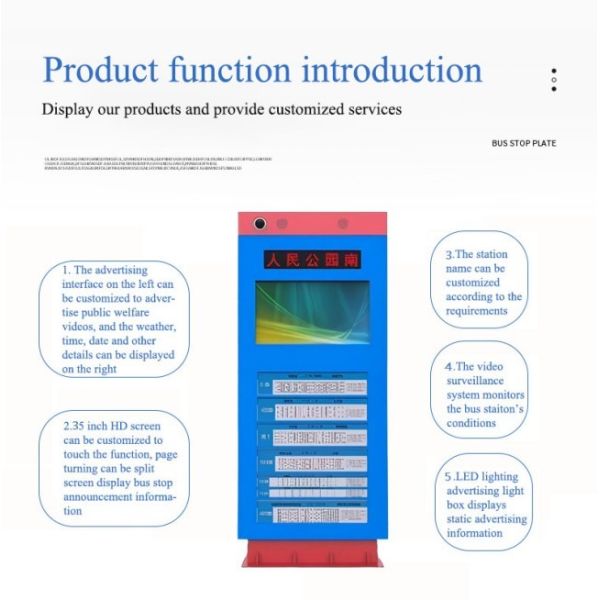

Intelligent Interaction, Enhancing User Experience


In addition to delivering advertising information, the 32-inch outdoor lcd display panel also features intelligent interactive functions. Passengers can access practical information such as bus routes and arrival times via touchscreen, enhancing their experience at bus stops.


32 inch interactive intelligent electronic station sign outdoor lcd display panel

32 inch interactive intelligent electronic station sign outdoor lcd display panel


Multi-Scenario Application, Conveying Brand Value


Outdoor lcd display panel are not only suitable for bus stops but also deliver excellent advertising results in commercial districts, community squares, and other locations. Brand information will be conveyed in different scenarios, helping you establish a superior brand image.


32 inch interactive intelligent electronic station sign outdoor lcd display panel


In the digital age, the 32-inch outdoor lcd display panel for transportation adds a technological and interactive element to your advertising, conveying brand value to a wider audience. Whether at bus stops or other locations, vertical outdoor advertising displays can reliably display advertising information, further enhancing your brand promotion.


32-inch Standalone Outdoor All-in-One Air Conditioner (Air-cooled) Specification Sheet
Specications
The containment structure The material and feature of shell IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design.
Glass feature with 6mm Tempered explosion-proof Glass above the screen panel
LCD Panel Screen Size 32 inch
Display area 697mm(H) X 392mm(V)
Aspect Ratio 9:16
LCD Type TFT-LCD
Max Resolution 1080 X 1920
Display color 16.7M
Brightness 1000 cd/ ~ 1500cd/
Contrast Ratio 2000:1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
Field Frequency 60Hz
Buit-in Media Player Ads updated type USB copy by manual operation
RAM 2GB
Flash memory card 16GB
Plug-and-Play Plug-and-play /No windows OS, Auto loop play when power on
Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Interface HDMI 1
USB 2
SD cassette TF(Micro SD )card, scalable 32G
ECU Switch power supply Industrial Power supply
Waterproof speaker High quality waterproof 10W speaker
Thunder Preventer The tree-level lightning protection
Leakage protective device Defend Electricity Leakage
Timer Set up on/off time on day/week/month
Built-in Fan for Ventilation Intelligent Straight ventilation Cooling system Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically
Environment Working temperature below 40 ~ + 55
Working humidity 5% ~ 95%
Working Voltage AC 100 ~240v , 50Hz
Max Power Consumption 280W
The dimension of machine To be determined
Outer Package size and Gross weight


Upgrade your city's bus stops with the ZXTLCD 32-inch LCD Bus Stop outdoor computer monitor. Provide commuters with real-time information and advertisers with a powerful platform to engage their audience. Revolutionize the way people experience public transportation and make your city smarter and more connected than ever before.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
