1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
Specifications
Brand Name :
Qijie
Model Number :
Crimped Wire Mesh
Certification :
Crimped Wire Mesh
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T
Supply Ability :
1000rolls/month
Delivery Time :
15-18days
Packaging Details :
wood case
Aperture :
25mm
Application :
Security Screen
Color :
Silver
Features :
High Strength, Corrosion Resistance
Length :
15m
Material :
aluminum
wire diameter :
2mm
Description

Product Description

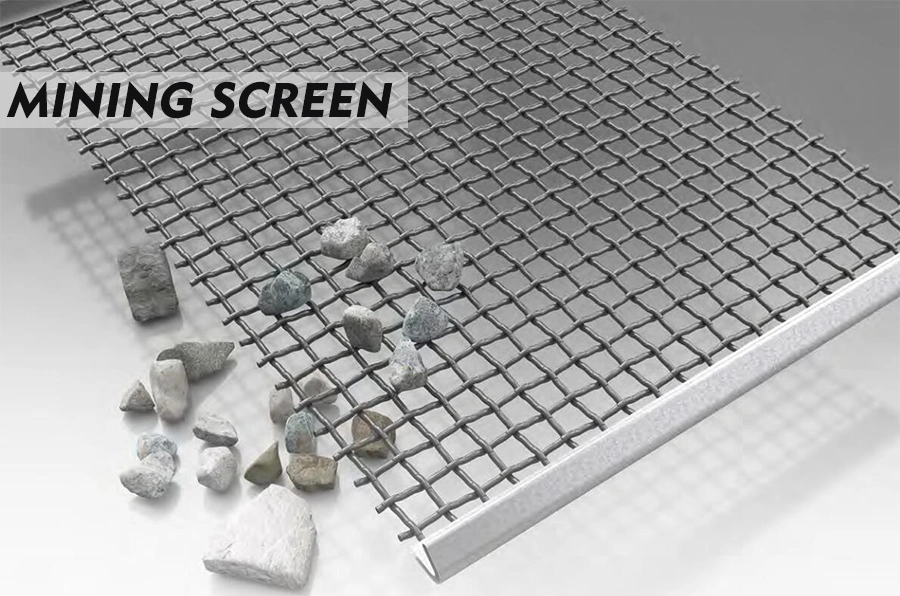

Mining screen, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most
important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups
depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.
1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.
MATERIALS & PARAMETERS
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
Grade Chemical Composition(%)
C Si Mn
45 0.42-0.50


0.52-0.60

0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.15-0.75 0.15-0.75 0.30-0.60

Technical Parameters of Stainless Steel Wire
Grade Chemical Composition(%)
C Si Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.0-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0
PRODUCT RANGES
1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
Our woven wire meshes are divided into two categories as shown below.
1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
ADVANTAGE OF MINING SCREEN
High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

1.5mm-50mm Hole Size 316 Stainless Steel Crimped Wire Screen Mesh
