High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T
Supply Ability :
1000rolls/month
Delivery Time :
15-18days
Packaging Details :
wood case
Aperture :
2.5mm
Application :
Security Screen
Color :
Silver
Features :
High Strength, Corrosion Resistance
Length :
30m
Material :
Stainless Steel
Mesh Size :
2.5mm x 2.5mm
Open Area :
45%
Packing :
Rolls
Surface Treatment :
Polished
Weave Type :
Plain Weave
Width :
1m
Wire Diameter :
0.5mm
Description

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh

Product Description

Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.
1. Angle: 30 degrees, 45 degrees
2. Crimped wire mesh Shape: v-shaped, u-shaped
3. Hook crimped woven wire mesh Hook type: positive check, positive check
4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire.
5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped
6 .Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.
7 . Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.

Specification of Crimped Screen Mesh
Product Name
Crimped wire mesh, also known as crimped screen mesh, vibrating screen mesh, quarry screen mesh, mining screen wire mesh
Materials
Mild steel/Low carbon steel, carbon iron wire, 65Mn steel wire, galvanized steel wire or stainless steel wire.
Weaving
Pre-crimping before weaving
Wire diameter
0.8mm-12.7mm
Mesh hole
2mm to 100mm or as your requested
Width
0.5-1.5m
Length
1-30m or as your requestd
Certification
SGS standard,ISO9001:2008
Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type:Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.

Chemical Composition as Below:

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh

Products Show

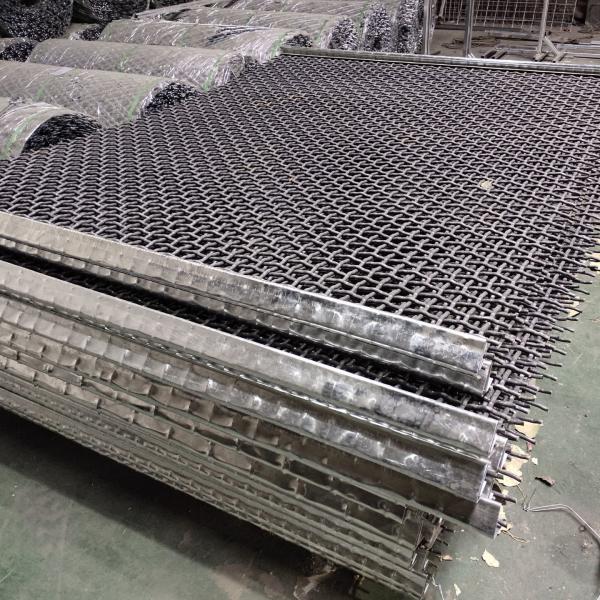

65Mn Woven vibrating screen mesh for stone quarry

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
