Durable Inox T Tend Stainless Steel Rope Mesh 4.0mm Zoo Enclosure Mesh
Durable Inox T Tend Stainless Steel Rope Mesh 4.0mm Zoo Enclosure Mesh
Durable Inox T Tend Stainless Steel Rope Mesh 4.0mm Zoo Enclosure Mesh
Durable Inox T Tend Stainless Steel Rope Mesh 4.0mm Zoo Enclosure Mesh
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Cable Webnet-018
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
10pcs
Price :
USD2.35-3.58/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and wooden case packing
Product name :
Stainless Steel Cable Mesh
Material :
Stainless Steel 316L
Wire Rope :
4.0mm
Rope Constructions :
7 X 19
Mesh Orientation :
Horizontal
Mesh Shape :
Diamond
Mesh Angle :
60 Degree
Color :
Silver
Feature :
Safety
Application :
For Tiger Cages
Description

Architectural Durable Inox T Tend Cable Webnet Wire Rope Factory For Tiger Cages

Stainless Steel Cable Mesh Introduction:

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the modern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designers and clients all over the world.

What need to know for design ?

316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.

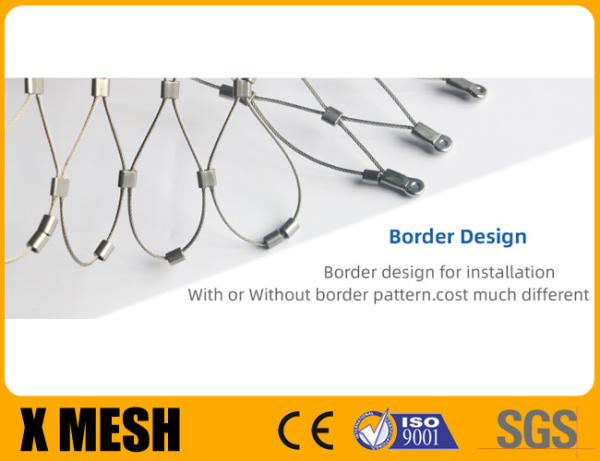

Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.

Stainless Steel Cable Mesh Specification:

Material:

Stainless Steel 304 , 316 , 316L

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Finished:

Ultrasonic Bath / Black Oxide

Mesh Orientation:

Horizontal , Vertical

Product Name:

Inox X-tend Cable Mesh Webnet

Mesh Shape:

Rhombus , Diamond

Application:

Staircase Security , Balustrade Infill , Railing Safety

Panel Size:

Customized In Width And Length

Mesh Angle:

60 Degree

Mesh Style:

X-tend In Ferruled Type

Rope Construction

Rope Diameter

Aperture

Breaking Force

inch

mm

mm

kn

7 × 19

1/8

3.2

120 × 208

7.38

7 × 19

1/8

3.2

100 × 173

7.38

7 × 19

1/8

3.2

90 × 156

7.38

7 × 7

3/32

2.4

100 × 173

4.18

7 × 7

3/32

2.4

90 × 156

4.18

7 × 7

3/32

2.4

80 × 139

4.18

7 × 7

3/32

2.4

70 × 121

4.18

7 × 7

5/64

2.0

100 × 173

3.17

7 × 7

5/64

2.0

90 × 156

3.17

7 × 7

5/64

2.0

80 × 139

3.17

7 × 7

5/64

2.0

70 × 121

3.17

7 × 7

1/16

1.6

80 × 139

2.17

7 × 7

1/16

1.6

70 × 121

2.17

7 × 7

1/16

1.6

60 × 104

2.17

7 × 7

1/16

1.6

51 × 87

2.17

7 × 7

3/64

1.2

80 × 139

1.22

7 × 7

3/64

1.2

60 × 104

1.22

7 × 7

3/64

1.2

50 × 87

1.22

7 × 7

3/64

1.2

40 × 69

1.22

Wire rope structure
diameter(mm)
Breaking force(KN)

7*7
1.2
0.63

7*7
1.5
1.67

7*7
2.0
2.94

7*7
2.5
4.61

7*19
2.5
4.82

7*7
3.0
6.37

7*19
3.0
6.57

mesh25*43
weight

0.9kg

1.29kg

mesh30*55
weight

0.72kg

1.01kg

mesh40*69
weight

0.5kg

0.71kg

1.33kg

mesh50*87
weight

0.62kg

1.0kg

1.65kg

1.65kg

2.54kg

2.54kg

mesh60*104
weight

0.5kg

0.83kg

1.31kg

1.31kg

2.02kg

2.02kg

mesh70*121
weight

0.4kg

0.68kg

1.11kg

1.11kg

1.68kg

1.68kg

mesh80*139
weight

0.35kg

0.63kg

0.93kg

0.93kg

1.42kg

1.42kg

mesh100*175
weight

0.45kg

0.73kg

0.73kg

1.1kg

1.1kg

Stainless Steel Cable Mesh Feature:

Handle Made
Environmental Protection
Extensive Use
Premium Quality
Direct from Factory
Product Life Cycle
Lifetime Support

Stainless Steel Cable Mesh Application:

In combination with architectural ropes Webnet is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.

Stainless Steel Cable Mesh Packing:

The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.
