AISI304 316 Architectural Flexible Stainless Steel Rope Mesh Netting Anticorrosive
AISI304 316 Architectural Flexible Stainless Steel Rope Mesh Netting Anticorrosive
AISI304 316 Architectural Flexible Stainless Steel Rope Mesh Netting Anticorrosive
AISI304 316 Architectural Flexible Stainless Steel Rope Mesh Netting Anticorrosive
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Cable Webnet-021
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
10pcs
Price :
USD2.35-3.58/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and wooden case packing
Product name :
Stainless Steel Cable Mesh
Material :
Stainless Steel 316L
Wire Rope :
1.5mm
Rope Constructions :
7 X 7
Mesh Orientation :
Horizontal
Mesh Shape :
Diamond
Mesh Angle :
60 Degree
Color :
Silver
Feature :
Lifetime Support
Application :
For Decoration
Description

AISI 304 316 Architectural Flexible Webnet Stainless Steel Ferrule Rope Mesh for Decoration

Stainless Steel Cable Mesh Introduction:

Balustrade Infill Cable Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architecture application ; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ;Diagonal and irregular shapes can also be supplied.

What need to know for design ?

316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.

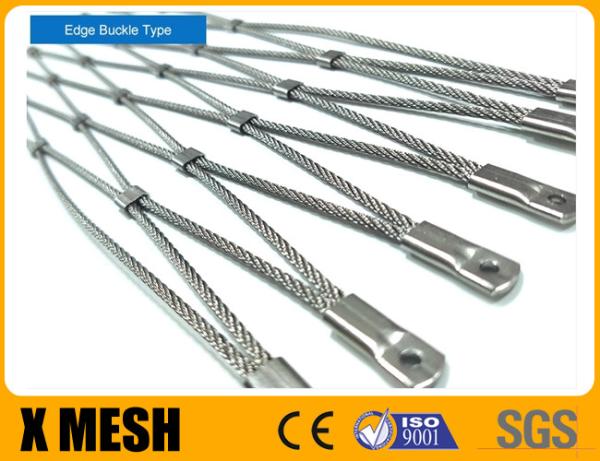

Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.

Stainless Steel Cable Mesh Specification:

Material:

Stainless Steel 304 , 316 , 316L

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Finished:

Ultrasonic Bath / Black Oxide

Mesh Orientation:

Horizontal , Vertical

Product Name:

Inox X-tend Cable Mesh Webnet

Mesh Shape:

Rhombus , Diamond

Application:

Staircase Security , Balustrade Infill , Railing Safety

Panel Size:

Customized In Width And Length

Mesh Angle:

60 Degree

Mesh Style:

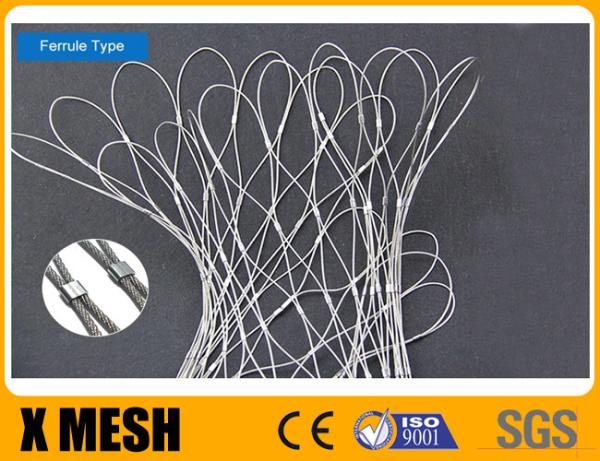

X-tend In Ferruled Type

Rope Construction

Rope Diameter

Aperture

Breaking Force

inch

mm

mm

kn

7 × 19

1/8

3.2

120 × 208

7.38

7 × 19

1/8

3.2

100 × 173

7.38

7 × 19

1/8

3.2

90 × 156

7.38

7 × 7

3/32

2.4

100 × 173

4.18

7 × 7

3/32

2.4

90 × 156

4.18

7 × 7

3/32

2.4

80 × 139

4.18

7 × 7

3/32

2.4

70 × 121

4.18

7 × 7

5/64

2.0

100 × 173

3.17

7 × 7

5/64

2.0

90 × 156

3.17

7 × 7

5/64

2.0

80 × 139

3.17

7 × 7

5/64

2.0

70 × 121

3.17

7 × 7

1/16

1.6

80 × 139

2.17

7 × 7

1/16

1.6

70 × 121

2.17

7 × 7

1/16

1.6

60 × 104

2.17

7 × 7

1/16

1.6

51 × 87

2.17

7 × 7

3/64

1.2

80 × 139

1.22

7 × 7

3/64

1.2

60 × 104

1.22

7 × 7

3/64

1.2

50 × 87

1.22

7 × 7

3/64

1.2

40 × 69

1.22

Wire rope structure
diameter(mm)
Breaking force(KN)

7*7
1.2
0.63

7*7
1.5
1.67

7*7
2.0
2.94

7*7
2.5
4.61

7*19
2.5
4.82

7*7
3.0
6.37

7*19
3.0
6.57

mesh25*43
weight

0.9kg

1.29kg

mesh30*55
weight

0.72kg

1.01kg

mesh40*69
weight

0.5kg

0.71kg

1.33kg

mesh50*87
weight

0.62kg

1.0kg

1.65kg

1.65kg

2.54kg

2.54kg

mesh60*104
weight

0.5kg

0.83kg

1.31kg

1.31kg

2.02kg

2.02kg

mesh70*121
weight

0.4kg

0.68kg

1.11kg

1.11kg

1.68kg

1.68kg

mesh80*139
weight

0.35kg

0.63kg

0.93kg

0.93kg

1.42kg

1.42kg

mesh100*175
weight

0.45kg

0.73kg

0.73kg

1.1kg

1.1kg

Stainless Steel Cable Mesh Feature:

1. Good flexibility, Anti-corrosion,Excellent visibility

2. Long service life, close to nature, green and environmental protection

Stainless Steel Cable Mesh Application:

In combination with architectural ropes Webnet is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.

Stainless Steel Cable Mesh Packing:

The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.
