Specifications
Brand Name :
Kelong
Model Number :
KL65
Certification :
ISO9001 / IRIS
Place of Origin :
China
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
100,000 pcs /months
Delivery Time :
7-15 work days
Packaging Details :
Opp bags
Name :
Hydraulic Guide Ring
Material :
Carbon Steel POM
Temperature (max) °C :
-40/+110
Style :
Hydraulic Guiding Elements
Application :
Applications with high radial load
Sliding Speed (max)- m/s :
2.0 (Grease Lubrication) 2.0 (Continuous Lubrication)
Description

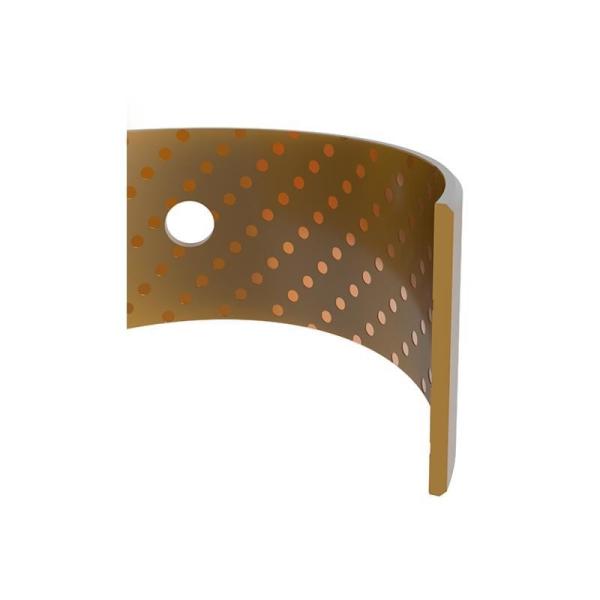

KL65 Is A Composite Bushing From High Quality Steel, Bronze Middle Layer And POM, With Self Lubrication Properties

KL65 is a composite bushing, produced from high quality steel, bronze middle layer and POM, with self lubrication properties. KL65 provides low friction, silent operation and high abrasion resistance in many hydraulic applications

Advantages

• Suitable for dry applications

• Abrasion Resistance

• Low friction

• Long service life

• Good thermal properties and dimensional stability

• Optimum oil film

• Superior load bearing capacity

Area of Application

• Hydraulic and Pneumatic Cylinders


• Applications with high radial load

KL65 Hydraulic Guide Ring Bronze Middle Layer POM Composite Bushings

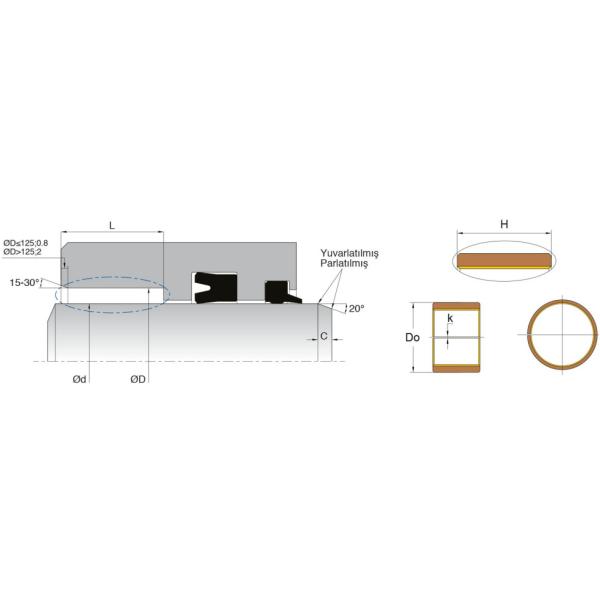

d (f7) D (H7) L (+0.2/-0) MATERIAL
KL65-k014 14 16 20 Steel - POM - Bushing
KL65-k028 28 32 30 Steel - POM - Bushing
KL65-k028/1 28 32 50 Steel - POM - Bushing
KL65-k030 30 34 25 Steel - POM - Bushing
KL65-k030/1 30 34 30 Steel - POM - Bushing
KL65-k030/2 30 34 50 Steel - POM - Bushing
KL65-k030/3 30 34 60 Steel - POM - Bushing
KL65-k032 32 36 20 Steel - POM - Bushing
KL65-k035 35 39 20 Steel - POM - Bushing
KL65-k035/1 35 39 30 Steel - POM - Bushing
KL65-k035/2 35 39 35 Steel - POM - Bushing
KL65-k040 40 44 40 Steel - POM - Bushing
KL65-k040/1 40 44 50 Steel - POM - Bushing
KL65-k040/2 40 45 20 Steel - POM - Bushing
KL65-k040/3 40 45 30 Steel - POM - Bushing
KL65-k045 45 50 40 Steel - POM - Bushing
KL65-k045/1 45 50 50 Steel - POM - Bushing
KL65-k050 50 55 30 Steel - POM - Bushing
KL65-k050/1 50 55 40 Steel - POM - Bushing
KL65-k050/2 50 55 45 Steel - POM - Bushing
KL65-k050/3 50 55 50 Steel - POM - Bushing
KL65-k050/4 50 55 60 Steel - POM - Bushing
KL65-k060 60 65 40 Steel - POM - Bushing
KL65-k060/1 60 65 50 Steel - POM - Bushing
KL65-k060/2 60 65 60 Steel - POM - Bushing
KL65-k070 70 75 40 Steel - POM - Bushing
KL65-k070/1 70 75 50 Steel - POM - Bushing
KL65-k070/2 70 75 58 Steel - POM - Bushing
KL65-k070/3 70 75 60 Steel - POM - Bushing
KL65-k070/4 70 75 90 Steel - POM - Bushing
KL65-k075 75 80 40 Steel - POM - Bushing
KL65-k075/1 75 80 60 Steel - POM - Bushing
KL65-k075/2 75 80 80 Steel - POM - Bushing
KL65-k075/3 75 80 90 Steel - POM - Bushing
KL65-k080 80 85 40 Steel - POM - Bushing
KL65-k080/1 80 85 50 Steel - POM - Bushing
KL65-k080/2 80 85 60 Steel - POM - Bushing
KL65-k085 85 90 60 Steel - POM - Bushing
KL65-k090 90 95 50 Steel - POM - Bushing
KL65-k090/1 90 95 60 Steel - POM - Bushing
KL65-k090/2 90 95 90 Steel - POM - Bushing
KL65-k095 95 100 45 Steel - POM - Bushing
KL65-k095/1 95 100 60 Steel - POM - Bushing
KL65-k100 100 105 50 Steel - POM - Bushing
KL65-k100/1 100 105 60 Steel - POM - Bushing
KL65-k100/2 100 105 90 Steel - POM - Bushing
KL65-k110 110 115 60 Steel - POM - Bushing
KL65-k110/1 110 115 80 Steel - POM - Bushing
KL65-k120 120 125 100 Steel - POM - Bushing
KL65-k120/1 120 125 60 Steel - POM - Bushing
KL65-k130 130 135 100 Steel - POM - Bushing
