KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
Specifications
Brand Name :
Kelong
Model Number :
KLSB
Certification :
ISO9001 / IRIS
Place of Origin :
China
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
100,000 pcs /months
Delivery Time :
7-15 work days
Packaging Details :
Opp bags
Name :
Hydraulic Piston Rings
Material :
POLYESTER FIBER, PHENOLIC RESIN
Temperature (max) °C :
-40/+120
Sliding Speed (max)- m/s :
1.0
Style :
Hydraulic Guiding Elements
Application :
Excavators / Heavy duty cylinders
Description

KLSB Produced From Synthetic Fabric And Phenolic Resin To Be Used In Rod And Piston Applications In Hydraulic Systems

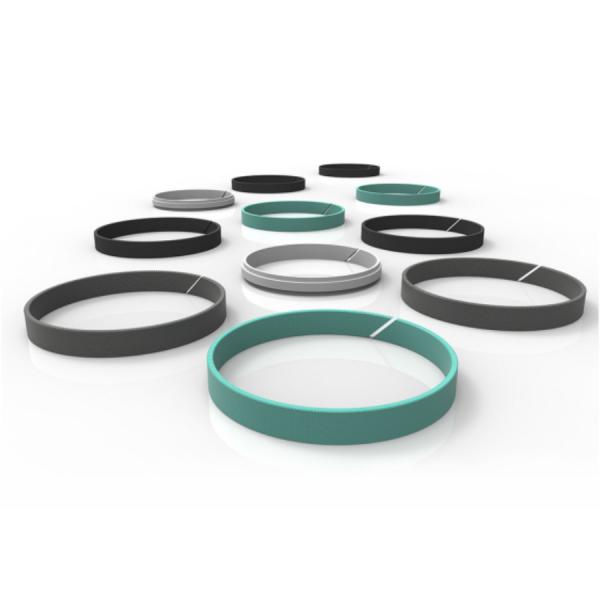

KLSB piston-rod guide rings are composite guiding elements, produced from syntetic fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Can be used in heavy and medium duty applications

• The high form stability at operating temperature range

• Easy installation

• Wide range of standard products

Area of Application

• Mobile machinery


• Mining industry


• Excavators


• Presses


• Heavy duty cylinders

KLSB Hydraulic Guide Ring Custom For Rod / Piston Application

a L (+0.2/-0) H MATERIAL
KLSB-2X10 2 10 9.8 PHENOLIC
RESIN
KLSB-2X15 2 15 14.8 PHENOLIC
RESIN
KLSB-2X20 2 20 19.8 PHENOLIC
RESIN
KLSB-2X25 2 25 24.8 PHENOLIC
RESIN
KLSB-2.5X5.6 2.5 5.6 5.5 PHENOLIC
RESIN
KLSB-2.5X9.7 2.5 9.7 9.5 PHENOLIC
RESIN
KLSB-2.5X10 2.5 10 9.8 PHENOLIC
RESIN
KLSB-2.5X15 2.5 15 14.8 PHENOLIC
RESIN
KLSB-2.5X20 2.5 20 19.8 PHENOLIC
RESIN
KLSB-2.5X25 2.5 25 24.8 PHENOLIC
RESIN
KLSB-3X15 3 15 14.8 PHENOLIC
RESIN
KLSB-3X20 3 20 19.8 PHENOLIC
RESIN
KLSB-3X25 3 25 24.8 PHENOLIC
RESIN
KLSB-4X15 4 15 14.8 PHENOLIC
RESIN
KLSB-4X20 4 20 19.8 PHENOLIC
RESIN
KLSB-4X25 4 25 24.8 PHENOLIC
RESIN
KLSB-4X30 4 30 29.8 PHENOLIC
RESIN
