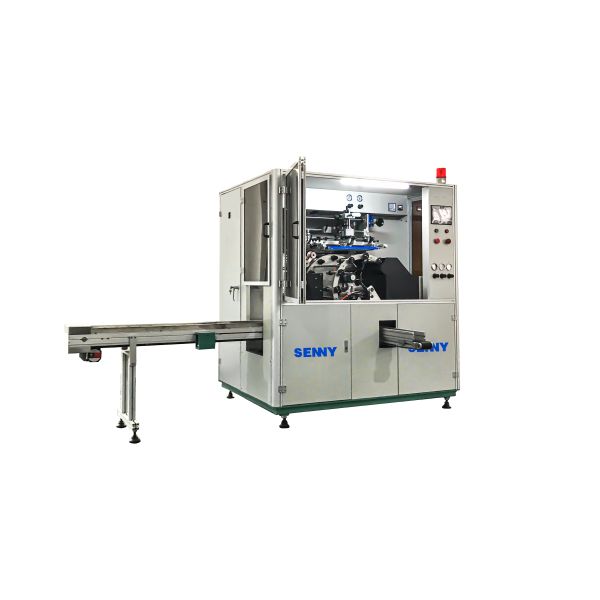

Caps Printing Machine three color offset printing unit and flame heads for surface treatment
Caps Printing Machine three color offset printing unit and flame heads for surface treatment
Caps Printing Machine three color offset printing unit and flame heads for surface treatment
Caps Printing Machine three color offset printing unit and flame heads for surface treatment
Caps Printing Machine three color offset printing unit and flame heads for surface treatment
Caps Printing Machine three color offset printing unit and flame heads for surface treatment
Specifications
Payment Terms :
T/T, L/C
Printing Quality :
High Quality
Printed Colors :
1-4 colors
Machine Type :
Automatic
Packaging Details :
Plywood package
Certification :
CE SGS
Price :
Negotiation
Delivery Time :
one month
Plate Type :
screen printing machine
Warranty :
1 year
Brand Name :
SENNY
Cercification :
CE SGS
Model Number :
SOS2022
Supply Ability :
10pcs/month
Control System :
PLC control with touchscreen interface
MOQ :
1PC
Driven :
Servo Motor
Place of Origin :
Dongguan China
Description

Caps Printing Machine three color offset printing unit and flame heads for surface treatment

It is specially designed for customers who need bottle cap printing with high-speed, lower cost and simple operation. Machine design is based on the principle of dryoffset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units and one set of vanishing unit, it can achleve image printing with accurate registration and overlap. Control by PLC with touch screen interface, it organizes a high efficiency production line.

1. Features:

  • Equipped with two automatic escalators, it can store a large volume of caps and feed the correct number of caps into the unscrambler.
  • Two unscrambler are used for guide the caps to the correct direction and feed to the main printing machine.
  • 2 flame heads, which make the surface treatment more efficiently.
  • The jig mandrel will be made according to the samples' specification given to us, and delivered together with the machine.
  • The Fusion UV system has automatic temperature control and extraction system which avoid the lamp over-heated & maximized the lamp efficiency.

2. Technical Specifications

Machine running speed Up to 1600pcs/min
Gas supply 0.15mpa
Air pressure requires 6-7 BAR
Voltage requirement 3-phase 5-wire 380V 50/60Hz

3. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.
