Fully Automatic Caps Printing Machine
Fully Automatic Caps Printing Machine
Specifications
Brand Name :
SENNY
Model Number :
SOS2022
Certification :
CE SGS
Place of Origin :
Dongguan China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
TT or LC
Supply Ability :
10pcs/month
Delivery Time :
one month
Packaging Details :
Plywood package
Auto Grade :
Fully Automatic
Plate type :
Screen Printer
After-sales service :
Video or on-line
Printed colors :
2
Brand :
Senny or OEM
Driven :
Servo Motor
Description

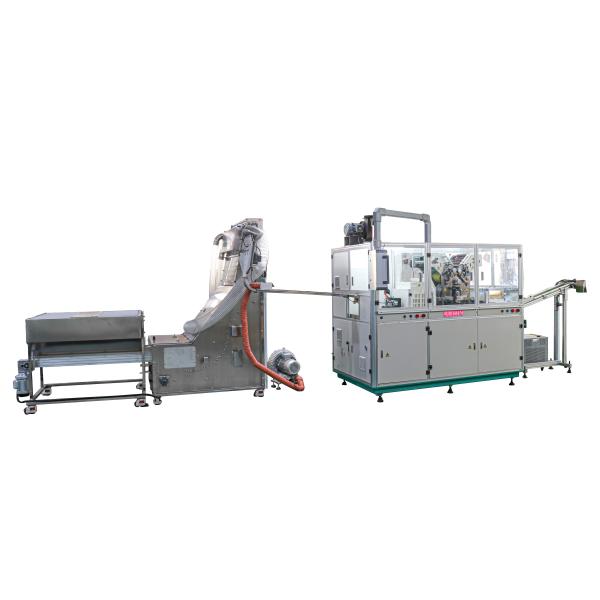

Water Bottle Cap 2-Col Offset Printing Machine For Flat Closures Printing Speed 100,000pcs Per Hour

It is specially designed for customers who need bottle cap printing with high-speed, lower cost and simple operation. Machine design is based on the principle of dryoffset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units and one set of vanishing unit, it can achleve image printing with accurate registration and overlap. Control by PLC with touch screen interface, it organizes a high efficiency production line.

1. Features:

  • Equipped with two automatic escalators, it can store a large volume of caps and feed the correct number of caps into the unscrambler.
  • Two unscrambler are used for guide the caps to the correct direction and feed to the main printing machine.
  • This cap printing machine equipped with 1 set of 3-color offset printing unit
  • Standard using LPG gas for surface treatment before printing.
  • 2 flame heads, which make the surface treatment more efficiently.
  • The jig mandrel will be made according to the samples' specification given to us, and delivered together with the machine.
  • The Fusion UV system has automatic temperature control and extraction system which avoid the lamp over-heated & maximized the lamp efficiency.
  • This system composed by bottle cap counter and printing detection system.

2. Technical Specifications

Machine running speed Up to 1600pcs/min
Gas supply 0.15mpa
Air pressure requires 6-7 BAR
Voltage requirement 3-phase 5-wire 380V 50/60Hz

3. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.

Fully Automatic Caps Printing Machine

Fully Automatic Caps Printing Machine
