Specifications
Brand Name :
Senny
Model Number :
SOC2268
Certification :
CE SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10pcs/month
Delivery Time :
60 days
Packaging Details :
Plywood package
Printing Speed :
3200pcs/min
Printing Colors :
2 Colors
Printing Durability :
High Durability
Condition :
New
Warranty :
1 Year
After-Sales Service :
Video Or On-line
Payment Terms :
T/T
Package Details :
Plywood Package
Description

High Speed 2 Color Bottle Caps Printing Machine with 24-34mm Printing Area


Offset printing machine for plastic caps.pdf

Machine Features:

  • The machine is suitable for printing UV inks of various colors on the top of plastic bottle caps.Optional 2-4 color variable speed printing system, accurate color registration.

  • The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.

  • The machine can be connected with cap making machine, cap slitting machine and quality inspection machine.

  • Multiple models to choose from to meet the needs of various users

  • The machine adopts well-known brand electrical components with reliable performance.
Advantages:

2-Flame treatment:
A safer plasma treatment option is available
Plasma treatment produces no carbon dioxide or heat emissions.
UV-LED Curing
Energy saving 70
No ozone or hot gas emissions.

Optional Configuration:

  • Solving and feeding machines.
  • LED-UV curing system.
  • Quality Inspection Machines
  • Cap slitting machine
  • Plasma surface treatment (standard configuration is flame surface treatment).
Machine Parameters:
Machine ModelSOC2268
Caps Diameter28-42mm
Printing Area24-34mm
Printing SpeedUp to 2400pcs/min
Printing Colors2-4 colors
Gas Consumption150L/Min
Air Consumption600L/Min
Air5-7 Bar
Power3P 380V 50/60Hz

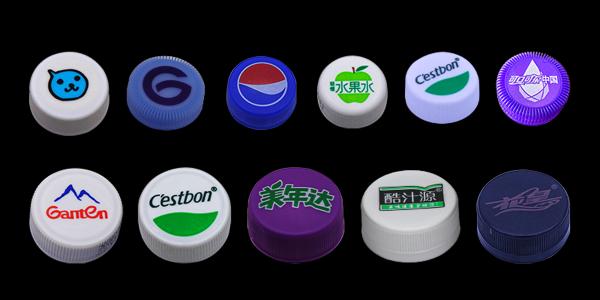

Printing sample
2 Color Bottle Caps Printing Machine 3200pcs/min High Speed

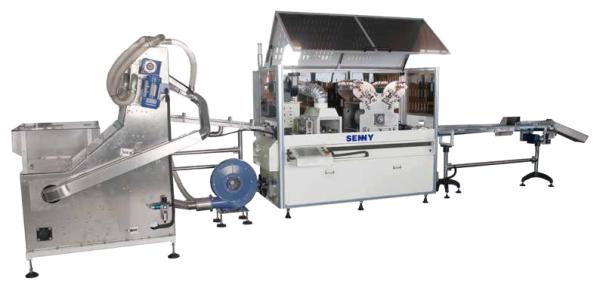

Printing device

2 Color Bottle Caps Printing Machine 3200pcs/min High Speed

Applications

SOC2268 Automatic Bottle Cap Two-Color UV Offset Printing Machine is an automatic offset printing machine dedicated to bottle cap printing.Run faster and produce higher efficiency It has a wide application range and can be used for offset printing on various bottle caps (e.g., plastic caps, aluminum caps, tinplate caps) in industries including beverage, wine, condiment, and cosmetics. Equipped with a UV curing system, it can rapidly cure inks, ensuring sharp and abrasion-resistant printed patterns on bottle caps.

Printing sample

2 Color Bottle Caps Printing Machine 3200pcs/min High Speed2 Color Bottle Caps Printing Machine 3200pcs/min High Speed

2 Color Bottle Caps Printing Machine 3200pcs/min High Speed

About us:


SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
