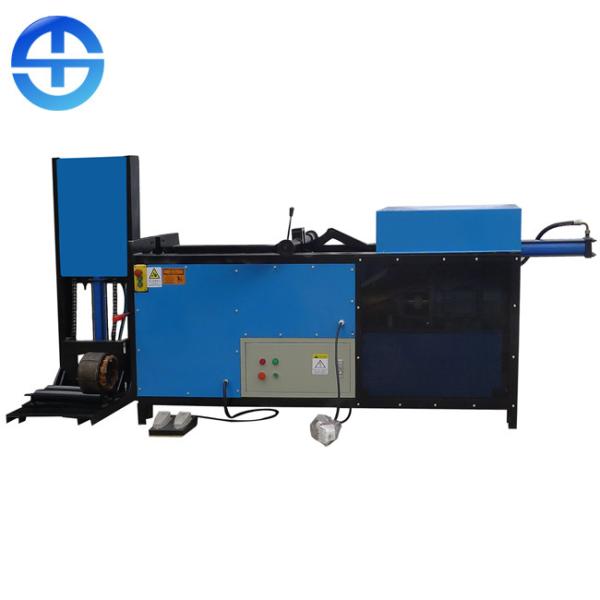

Blue Color Copper Wire Recycling Machine 5.5 KW With High Torque Cylinder
Blue Color Copper Wire Recycling Machine 5.5 KW With High Torque Cylinder
Blue Color Copper Wire Recycling Machine 5.5 KW With High Torque Cylinder
Blue Color Copper Wire Recycling Machine 5.5 KW With High Torque Cylinder
Specifications
Brand Name :
TMS
Model Number :
TMS-5
Certification :
ISO, CE, CO
Place of Origin :
China
MOQ :
1 set
Price :
USD 4000-6500 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
10 work days
Packaging Details :
Ply wooden case. The package size is 920 *2950*1380 mm. The package weight is 780 kg
Name :
Copper wire pulling machine
Function :
Pull the copper out from stator
Application :
Φ60 - Φ500 mm
Power :
5.5 kw
Dimension :
3000*1000*1250 mm
Speed :
15-100 pieces/hour
Weight :
530 kg
Color :
Blue
Description

5.5 KW CE Certified Motor Stator Recycling Machine Copper Wire Pulling Machine

Product Description

The motor stator is controlled by a manual switch to rise to the positioning plate. The positioning plate limits the stator of the motor, and then the foot switch controls the pulling clamp to bite the copper coil. The copper coil is pulled out from the stator to complete the stator disassembly. The user can recover the copper coil and the stator core (silicon steel sheet) according to the actual situation. Copper wire pulling machine can disassemble motors of different specifications, with stator inner diameter 60-500 mm. The purpose of recycling copper coil (enameled wire) and stator core (silicon steel sheet) can be achieved by replacing manual automatic disassembly of the spent motor stator or or the discarded motor stator.

Advantages

1. Nice appearance with reasonable structure.

2. Using high torque cylinder, which can withstand high loads of high intensity running.

3. Using international brands for hydraulic components, with air cooling system to prevent the oil temperature from too high during operation

4. We use SCHNEIDER, SIEMENS, and CHNT for electrical control system.

5. The claw is made of chisel tool steel, which is high strength and wear-resistant.

6. The processing of equipment is without metal loss, with improved recycling value, and environmental friendly.

7. The equipment is designed with access door, emergency stop switch to ensure safety. And adopted CE Certificate, in line with European Safety Standards.

Technical Parameters

Dimension (L*W*H)

3000*1000*1250mm
Speed 15-100 pieces/hour
Power 5.5kw/380V/50HZ
Net Weight 530kg
Package size (L*W*H)

920*2950*1380mm
Gross Weight 780kg
