Hydraulic Motor Stator Recycling Machine Scrap Motor Stator Cutting And Pulling Machine100-250 Mm
Hydraulic Motor Stator Recycling Machine Scrap Motor Stator Cutting And Pulling Machine100-250 Mm
Hydraulic Motor Stator Recycling Machine Scrap Motor Stator Cutting And Pulling Machine100-250 Mm
Hydraulic Motor Stator Recycling Machine Scrap Motor Stator Cutting And Pulling Machine100-250 Mm
Specifications
Brand Name :
TMS
Model Number :
TMS-003
Certification :
CO, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
10 work days
Packaging Details :
Standard exported ply wooden case or Full container for large quantity
Name :
Motor cutting and pulling machine
Function :
Cutting and Pulling copper from stator
Stator diameter :
100-250 mm
Power :
4.5 kw
Capacity :
30-50 pieces/h
Size :
1470*740*2040 mm
Weight :
1050 kg
Voltage :
380V or Customized
Description

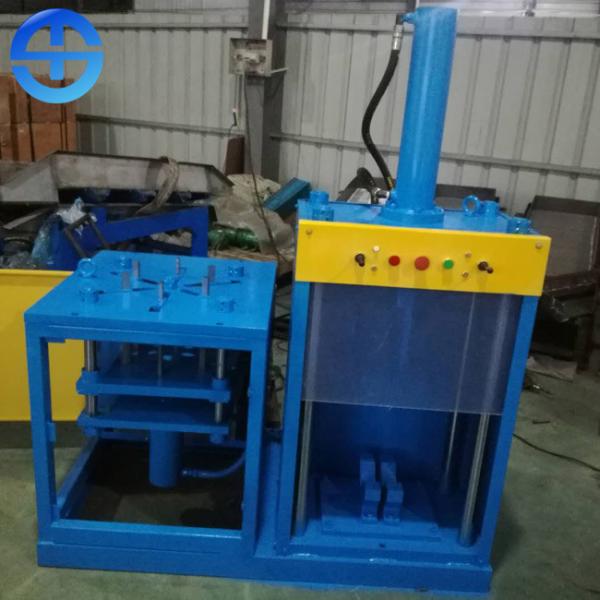

Hydraulic scrap motor stator cutting and pulling machine for stator 100-250 mm


Introduction

The motor cutting and pulling machine is used for cutting and pulling copper out from stator. It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times.

Product character

1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.

2. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.

3. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.

4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

Specifications

Model Power Capacity External diameter Size Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040mm 1050kg
