Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Specifications
MOQ :
1 Set
Price :
1000
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXCF
Max Diameter of Workpiece :
900mm
Mass Scope of Workpiece :
<900kg
Type :
Strength Testing Machine
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
LCD Display
Control :
Computer Control
Weight :
0-100Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Application and Testing1 :
Dielectric Withstand Test
Application and Testing2 :
Breakdown Voltage Test
Application and Testing3 :
Impulse Withstand Test
Application and Testing4 :
Surge Arrester Test
Application and Testing5 :
Insulation Strength Test
Application and Testing6 :
Transformer Impulse Test
Application and Testing7 :
Gas Insulated Switchgear (Gis) Test
Application and Testing8 :
High-Voltage Cable Test
Transport Package :
Plywood Case
Specification :
1000mm*600mm*560mm
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description

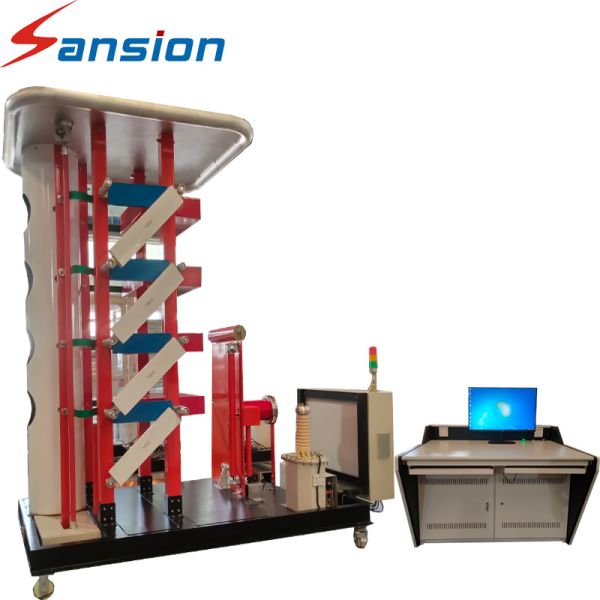

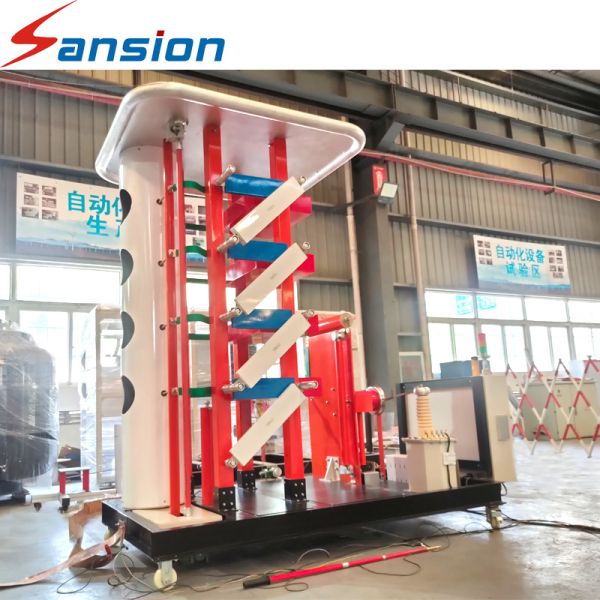

10kA Impulse Current Generator Lightning Arrester Testing Equipment

General Information:
SXCF Series Lightning Arrester Testing Equipment can produce a wide range of voltage and energy to simulate waveform such as lightning impulse, lightning chopped wave,switching impulse,to carry out impulse test for high voltage power equipment.When using steep device,it can make steep wave test for insulators(insulator string).
Features:
1. Spring pressure type for the connector, easy to plug when adjusting wave.
2. Unified connector is used for connecting rod of the main body, easy connection.
3. Optical fiber isolated ethernet port communication between the computer control system and the main body.
4. Full wave and chopped wave are electronic circuit,to adjust delaying ignition triggering.
5. Trigger mode of three-gaps ball discharge,to ensure the reliability of the trigger.
6. Plate structure for adjustable wave resistor, non-inductive winding.
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment

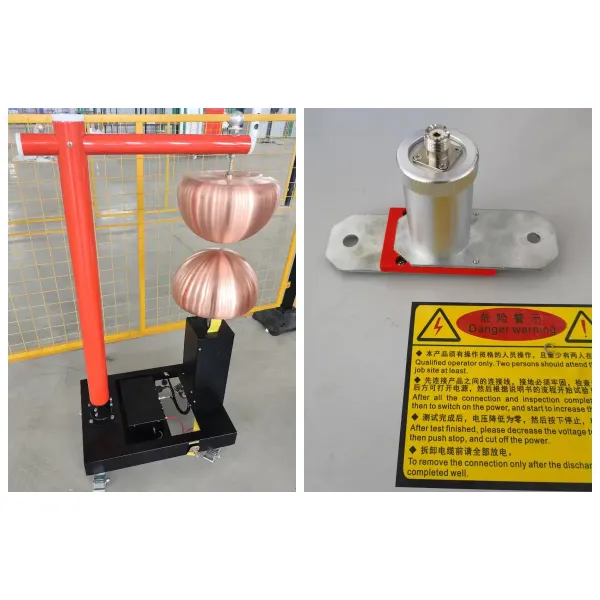

Chopping gap, performing cut-wave tests.
Shunt resistor,the current waveform can be correctly recorded in the tests.
Specifications:
1
Impulse voltage grade
100kV-7200kV
2
Standard lightning wave
1.2±30%/50±20%µS
3
Peak oscillation
5%
4
Standard switching wave
250±20%/2500±60%µS
5
Virtual front time of oscillating lightning wave
15µS
6
Virtual front time of oscillating switching wave and virtual front time of oscillating switching impulse wave
15µS-1µS
7
The minimum output voltage
10%Un
8
Charging voltage instability
1%
9
Synchronizing range
20%
10
Synchronous discharge error rate
2%
11
Ignition range
10%-100%
12
Working time
70%UN Discontinuous work(charge-discharge 300s/time)
70%nn Continuous work(charge-discharge 120s/time)
13
Generator efficiency
lightning wave (no load)-----90%
14
Time to chopping
2-5µS
Company Profile
About Sansion
Sansion Power Electric Co., Ltd was established in 2005, a technocrat who have rich experience of more than 10 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Main products:
HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Customer Visit
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Certifications
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
Packing & Delivery
Precision 10ka Impulse Current Generator Lightning Arrester Testing Equipment
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
Q6:In which fields can your product be applied?
A: Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Many of our products incorporate advanced international technologies and rank among the best in China. They have consistently excelled in national high-voltage testing competitions and earned widespread acclaim from our partners.
