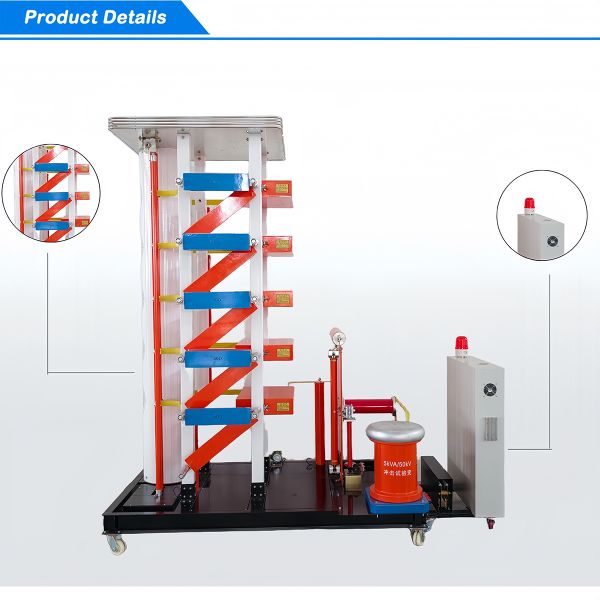

High Voltage HV Multi-stage Lightning Impulse Voltage Generator for Transformer ,insulator Test

I. Product Description

HV lightning impulse generator is one of the basic projects of high-voltage test ingress of electric power equipment, which requires impact testing to be verified or tested after design, manufacture and repair. Common power equipment includes power transformers, power transformers, high-voltage switches, combined electrical appliances, lightning protection, power cables and accessories, casings and insulators, etc.

Impact voltage test is also one of the basic projects of high-voltage test research, which needs to be tested in many aspects, such as insulation cooperation research, electromagnetic compatibility research and discharge mechanism research.

Therefore, hv lightning impulse generator has a wide range of applications, in factories, research institutions and universities in the high-voltage laboratory can be seen in different specifications of impact test equipment

II.Waveforms of various shapes

The impulse voltage generator can emit pulse waveforms of various shapes, but according to the needs of the test study, according to the relevant international standards and national standards, the main generation of the following impact voltage waveforms:

• standard lightning impact waveform
• standard operating impact waveform
• other special impact voltage waveforms, such as special operation shock waves

III.Specification

1. Rated Charging voltage:

Normally ±100kV

2. Nominal energy:

Can be customized,such as 10KJ, 20KJ, 30KJ, etc.

3. Total impact capacitance:

Can be customized according to tested object

4. Impulse voltage waveform parameters

• Standard lightning impulse voltage full wave: 1.2±30%ms /50±20%ms,The amplitude is ±3%, The oscillation at the wave head is not more than 5% of the amplitude
• Standard operating impact waveform
• 250±20%ms /2500±60%ms;Chopper waveform time :2~6mS
• Impulse voltage waveform: Impulse voltage waveform>10%Un, synchronizing range ≤20%,Instability rate of output voltage ≤1.5%,Error rate of synchronous discharge <2%
