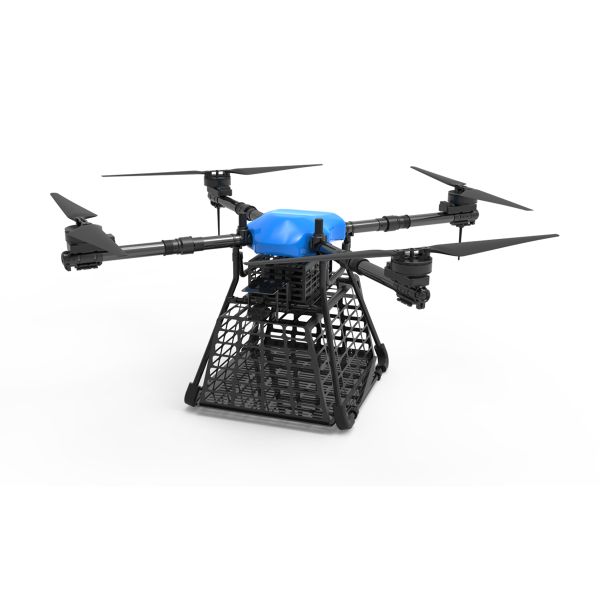

Heavy Lift Cargo Drone FT-20
Heavy Lift Cargo Drone FT-20
Specifications
Description

Heavy Lift Cargo Drone FT-20 Stable Edition features a wrap-around folding design, equipped with a suspended battery and transport cargo bay. Its center-mounted fuselage connection enhances overall frame strength while providing dust and water resistance.

Powered by a robust 36-inch propulsion system, this lightweight drone offers simple operation and versatile transport modes.

Maximum payload capacity: 20kg. (Extended endurance available upon request)

SPEC:

Product Wheelbase 1339mm
Product Dimensions

1063x1063x652mm(Expand)

683x683x652mm(Fold)
Cargo Box Dimensions 592x427(Max Width)/300(Min Width)x311(H)
Product Weight

8.2kg(Rack weight including cargo hold)

16.2kg(Top configuration, excluding battery)

33.2kg(Takeoff weight: 10 kg payload)
Arm Dimensions 37x40mm
Maximum Payload 10~20kg
Flight Speed 10~20/s
Flight Controller boying/KX
Remote Controller H12/H16/MK32/G20
Power System

X9PLUS 100rpm/V(Electric motor)

150A(Electronic control)

3619(propeller)
Platform Quick-release battery compartment/mounting structure/
Hatch-type cargo bay
Battery 14S 35000mAh

Full Load Range(10kg)

 35-40min
No Load Range 70min
