SA-10 Industry-Specific Application Drone-Entry-level version
SA-10 Industry-Specific Application Drone-Entry-level version
Specifications
Description

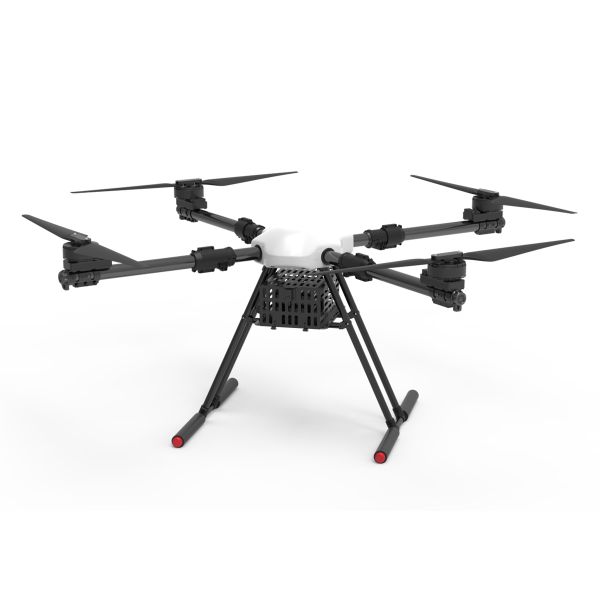

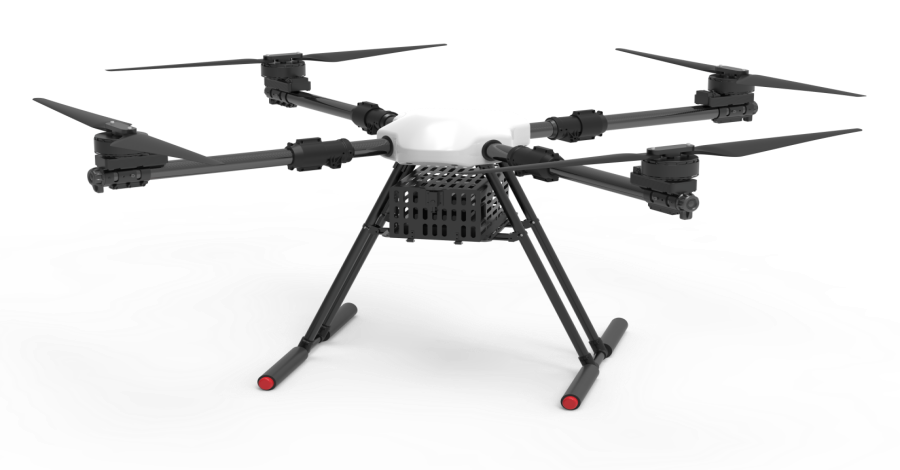

Heavy Lift Cargo Drone SA-10 Transport Drone Stable Edition features a downward-folding design with a suspended battery and transport platform. Its center-mounted fuselage connection enhances overall frame strength while providing dust and water resistance.

Powered by a robust 36-inch propulsion system, this lightweight drone offers simple operation and versatile transport modes.

Maximum payload capacity: 20kg. (Extended endurance available upon request)

SPEC:

Product Wheelbase 1478mm
Product Dimensions

1162x1162x691mm(Expand)

679x683x655mm(Fold)
Product Weight

4.2kg(Rack weight including cargo hold)

12.5kg(Top configuration, excluding battery)

22.5kg(Takeoff weight: 10 kg payload)
Arm Dimensions 37x40mm
Maximum Payload 20kg
Flight Speed 10~15/s
Flight Controller boying/KX
Remote Controller H12/H16/MK32/G20
Power System

X9PLUS 100rpm/V(Electric motor)

150A(Electronic control)

3619(propeller)
Platform Quick-release battery compartment/mounting structure
Battery 14S 28000mAh

Full Load Range(10kg)

 25min(15% battery remaining)
No Load Range 40min(15% battery remaining)
