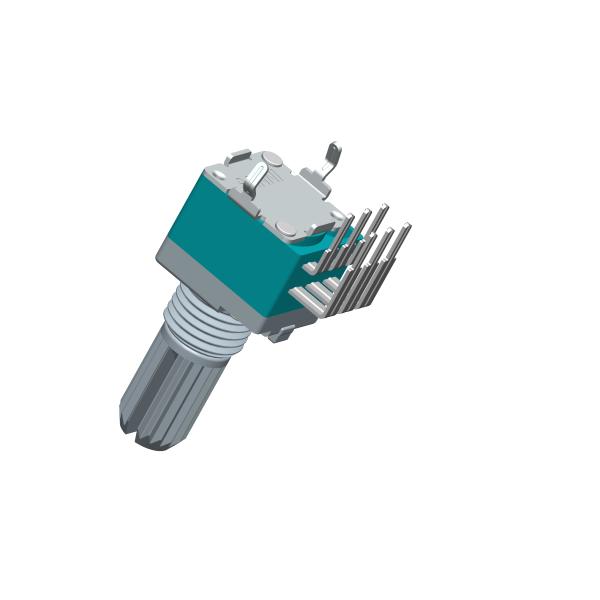

Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
Specifications
Brand Name :
Sanni
Model Number :
RV9312G0-KA15D8.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
2000
Price :
0.3USD
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Delivery Time :
35days
Packaging Details :
carton box
Control part orientation :
Horizontal
Actuator configuration :
Knurled
Actuator length :
20mm
Operating temperature range :
'-20℃ ～ +85℃
Total resistance :
300Ω-2MΩ
Rated Power :
Linear taper:0.05W
Voltage proof :
100V AC for 1 minute
Operating life :
10,000 cycles
Description

Manufacturer 9mm Horizontal Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application

Product Description:

A rotating potentiometer is a tunable resistor that slides over the resistor by a brush and obtains an output voltage related to the input voltage in the circuit. Mainly used in communication products, walkie-talkies, automotive power amplifier, multimedia audio, smart home, computer peripherals and so on.

Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application

Features of Rotary Potentiometer

  • Using plastic sealing structure, can effectively deal with wave welding.
  • Good sealing performance meet IP65 standard.
  • Have 1,11,21,41 detents options.
  • Push-pull switch or rotating switch options.
  • Shaft length and shape can be customized.
  • A variety of mounting methods for choice.

Application of Rotary Potentiometer

Rotary potentiometer is mainly suitable for communication products, walkie-talkies, multimedia audio, automotive power amplifier and other electronic equipment, can also be used in household appliances, medical equipment, its main functions are: volume adjustment, light emphasis section, menu selection, speed adjustment, temperature adjustment, etc.

Technical Parameters:

1.Electrical Characteristics
Total resistance 200Ω-2MΩ
Total resistance tolerance ±20%
Insulation resistance 100MΩ min. 250V DC
Residual resistance 20ΩMax.
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Noise 100mV Max
Voltage proof 100V AC for 1 minute
Maximum operation voltage 50V AC/20V DC
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength Min:4Kgf
Total rotation angle 300o±5o
Totational torque 10-150gf.cm
Key push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
Key Wobble Max: 0.6*L/20mm P-P
3.Switch Characteristics
Switch Type SPST
Rated Power 1A 16V DC
Switch Torque 500gf.cm Max
Switch Angle 40o Max
Operating Life without load 15000 cycles 100mΩ Max
Operating life with load:as rating 15000 cycles 200mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 350oC±10oC/3+1S
Wave Soldering 260oC±5oC/10±1S

Manufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio ApplicationManufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio ApplicationManufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio ApplicationManufacturer 9mm Vertical Type Rotary Potentiometer Dual Gang Potentiometer For Audio Application
