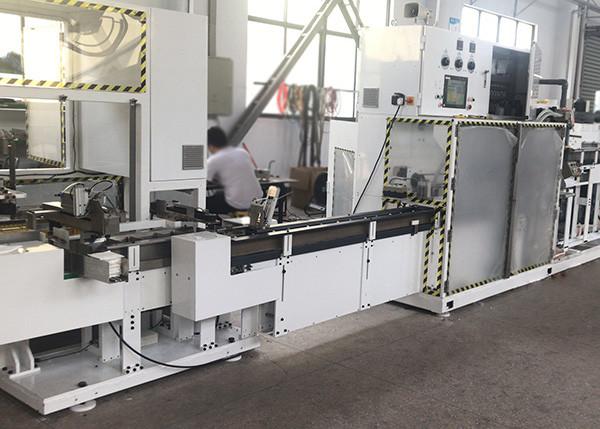

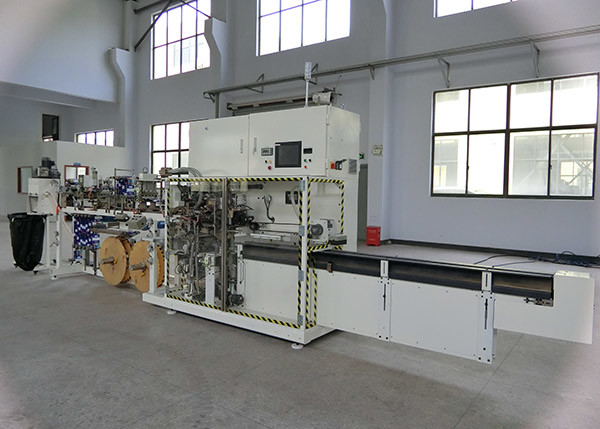

Labor Saving Multirow 25KW Sanitary Baby Diaper Packing Machine
Labor Saving Multirow 25KW Sanitary Baby Diaper Packing Machine
Labor Saving Multirow 25KW Sanitary Baby Diaper Packing Machine
Labor Saving Multirow 25KW Sanitary Baby Diaper Packing Machine
Labor Saving Multirow 25KW Sanitary Baby Diaper Packing Machine
Labor Saving Multirow 25KW Sanitary Baby Diaper Packing Machine
Specifications
Brand Name :
JSX
Model Number :
QB-100
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10pcs/month
Delivery Time :
90 working days
Packaging Details :
Carton & aluminum paper
Product Name :
Sanitary Napkin Packing Machine
Model :
QB-100
Usage :
Menstrual Napkin
Speed :
55-60 bags/min
Power Supply :
3 phase,380V+N+PE, ±5%,50HZ
Capacity :
25KW
Air Consumption :
0.5 m³/min
Pneumatic :
0.6Mpa
Description

High-speed good package Sanitary Napkin Packing Machine for European style bag

Description of Sanitary Napkin Packing Machine:

It can be located at the rear of the production line and the forth of the boxing machine.

The machine is highly efficient. It can run at the fastest speed of 70 bags/min.

It greatly improves the productivity of sanitary pads. Besides,

Beautiful Bags with neat sealing are usually considered the key to attracting customers.

The packages from this packing line are beautiful and identical.

It is the best choice to match with the production line of 600-800 pads/min.

Characteristic of Sanitary Napkin Packing Machine:

1. Full servo drive to protect packing machine and extend the service life

2. Capable of packing Inserted pads, including the multi-row or straight type

3. Order tracking plan, keep up to date with the production process

4. Project upgrade plan, worry-free packaging for future development

5. Save labor costs and improve the quality of packing.

6. Capable of Hygiene products such as sanitary pad and panty liner

Sepcification of Sanitary Napkin Packing Machine:

Model QB-100
Package Speed 55-60 bags/min
Material PE/ Aluminum film
Bag Process Roll type tube bag
Package Range L(80-130)*W(30-90)*H(80-200)mm
Machine Dimension L(6000)*W(950)*H(2000)mm
Weight 950KG
Power Supply 3 phase,380V+N+PE, ±5%,50HZ
Capacity 25KW
Air Consumption 0.5 m³/min
Pneumatic 0.6Mpa
Noise ≤80dba

Configuration of Sanitary Napkin Packing Machine:

No. Name Brand
1. Service Motor Mitsubishi Tamagawa
2. HMI Mitsubishi
3. Reducer Shimpo
4. Temperature controller Omron
5. VFD Mitsubishi
6. Air cylinder SMC
7. PLC Mitsubishi
8. Heating device Ropex
