Bilingual Sanitary Napkin Packing Machine With Online Bag Making Device
Bilingual Sanitary Napkin Packing Machine With Online Bag Making Device
Bilingual Sanitary Napkin Packing Machine With Online Bag Making Device
Bilingual Sanitary Napkin Packing Machine With Online Bag Making Device
Bilingual Sanitary Napkin Packing Machine With Online Bag Making Device
Bilingual Sanitary Napkin Packing Machine With Online Bag Making Device
Specifications
Brand Name :
JSX
Model Number :
QB-100G
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5pcs/month
Delivery Time :
90-120days
Packaging Details :
Standard package
Product Name :
Sanitary Napkin Packing Machine
Automatic Grade :
Automatic
Bag Format :
Bottom Gusset
Bag Material :
Plastic (PE)
Language :
Dual language (Chinese/English)
Dimension :
L(6000)*W(950)*H(2000)mm
Weight :
2000 kg
Key selling point :
Online bag making device
Speed :
60 bags/min
Condition :
New
Description

Bottom Gusset Plastic Bag Sanitary Napkin Packing Machine with online bag making device

Description of Sanitary Napkin Packing Machine:

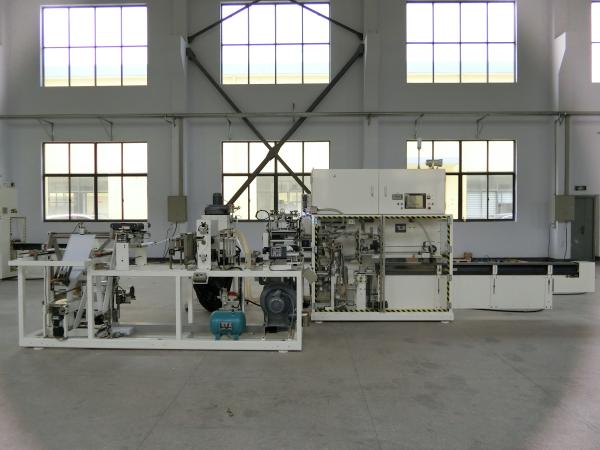

JSX QB-100G is an automatic sanitary napkin packing machine driven by fully-servo.

It can be for different kinds of sanitary napkins and sanitary towels. This is special for a Bottom Gusset PE bag, which can run at 60 bags/min.

With sanitary napkin counting stacker, it can realize that one packing machine can do with many products' specifications.

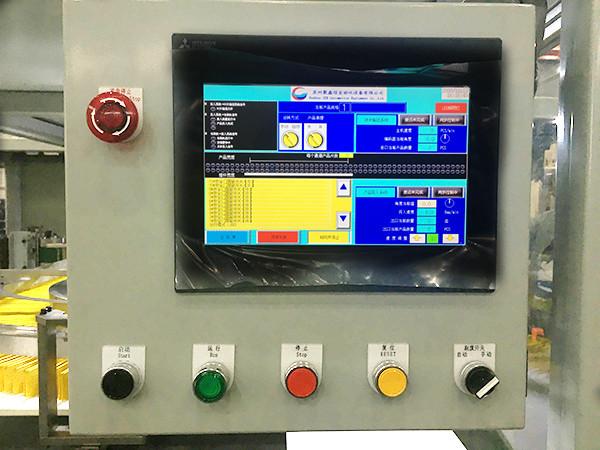

It also has a simple operation on the HMI to switch between different products.

Besides, the online bag making device is one of the important advantages. It can directly make bags while the machine is packing.

Specification of Sanitary Napkin Packing Machine:

Technical Specification Description
Automatic Grade Automatic
Packing Speed: 60 bags/min
Packing range for bag length 80-120 mm
Packing range for bag width 30-90 mm
Packing range for bag height 80-180 mm
Tube bag material Plastic (PE)
Bag Format Bottom Gusset
Bag thickness More than 50mic
Power supply 380 V , 3 Phase , +/-5%, 50HZ
Voltage 25KW
Pneumatic system 0.6Mpa
Air consumption 0.5M³/min
Machine Space 6000*950*2000mm
Weight 1000 KG
Machine color white(customized color also acceptable )
Noise ≤80dba

Characteristic:

1. Simple operation, with HMI monitor, easy to learn and operate the machine.

2. High speed, to improve productivity as the packing movement is accurate under PLC controller

3. Good package, all the packaging process can be finished by the machine itself after putting pads into the input part

4. Sensor limit protection, to stay long service life and protect the worker from danger.

After-sale service:

1. Order production track, master every step of the production process

2. Easy worn parts outfit, make sure to repair at emergency in time and not to delay the production.

3. Professional operation train, with dual language instruction manual, facing and fixing the problem easily.
