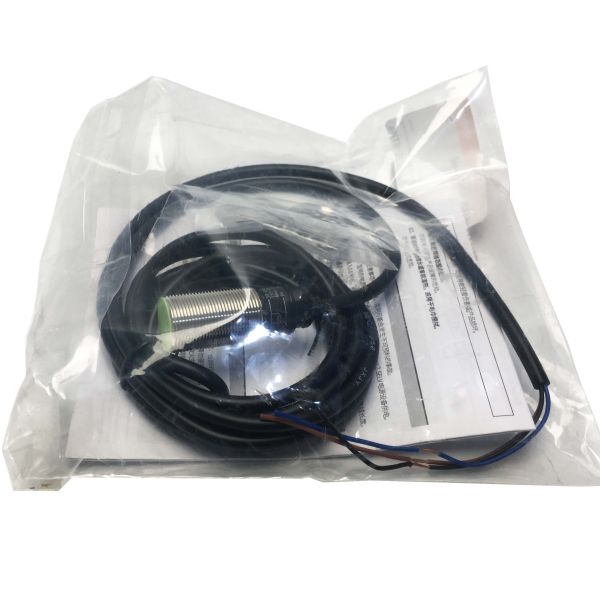

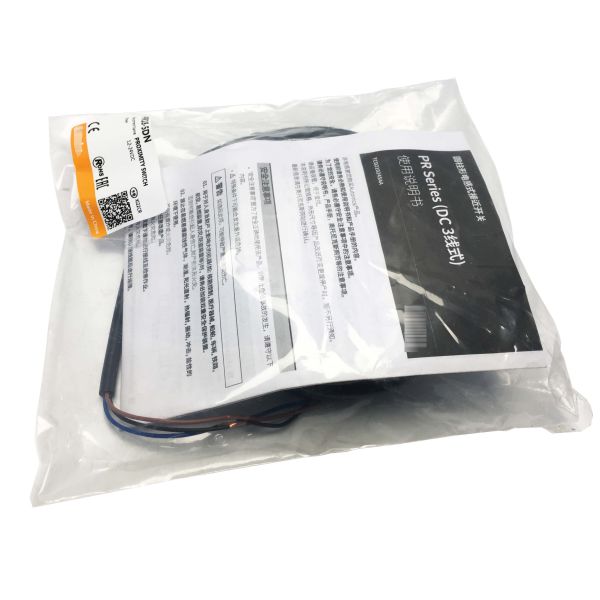

PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
Specifications
Brand Name :
AUTONICS
Model Number :
PR18-5DN
Place of Origin :
China
MOQ :
1
Price :
USD 8-15 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 pcs per day
Delivery Time :
2 days
Packaging Details :
Original packaging
Standard sensing target :
18×18×1mm(iron)
Response frequency :
500Hz
Indicator :
Operation indicator (red LED)
Current specification :
Current consumption: Max. 10mA
Control output :
≤ 200 mA
Residual voltage :
Max. 1.5V
Warranty :
One year
Condition :
New Original
Description

PR18-5DN Autonics Inductive Proximity Switch — M18 NPN NO Sensor (Factory Sealed)

The PR18-5DN from Autonics is a cylindrical inductive Proximity Sensor with pigtail cable. PR Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of diverse range of line-ups in terms of size and sensing distance.

  • DC 3 wire type
  • Integrated overload and short protection circuit
  • Integrated reverse polarity protection circuit
  • Integrated surge protection
  • Improved noise resistance with dedicated IC
  • Red LED status indication
  • IP67 Protection degree
  • Replaceable for micro switches and limit switches

Technical Specifications

Parameter Specification
Brand AUTONICS
Model PR18-5DN
Supply Voltage 10–30 VDC
Output Type NPN
Output Mode Normally Open (NO)
Nominal Sensing Distance (Sn) 5 mm
Sensor Type Shielded (Flush)
Dimensions M18 × 30 mm
Mounting Hole Size Ø18 mm
Switching Frequency 350 Hz
Maximum Output Current 200 mA
Operating Temperature −25°C to +70°C
Protection Rating IP67

PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor

This inductive proximity sensor provides:
18 mm sensing side diameter
NPN Normally Open control output
5 mm sensing distance
Shield (flush) installation
Improved noise resistance
Long life cycle and simple operations
Built-in reverse polarity, surge, and over-current protection circuit
IP67 ingress protection structure according to IEC standards
Red LED status indicator
Alternative to micro switches and limit switches.

Temperature

There are limitations in temperature and humidity in which PR18-5DN NPN proximity switch is used:

  • Storage temperature: -30 … 80°C
  • Storage humidity: 35 to 95%RH
  • Ambient temperature: -25 … 70°C
  • Ambient humidity: 35 to 95%RH

Environment resistance is rated at no freezing or condensation.

PR18-5DN Brand New Sealed Autonics PR185DN Proximity Switch Sensor
