13mm IP65 Multi Beam Autonics Photoelectric Area Sensor BWP20-08
13mm IP65 Multi Beam Autonics Photoelectric Area Sensor BWP20-08
13mm IP65 Multi Beam Autonics Photoelectric Area Sensor BWP20-08
13mm IP65 Multi Beam Autonics Photoelectric Area Sensor BWP20-08
13mm IP65 Multi Beam Autonics Photoelectric Area Sensor BWP20-08
13mm IP65 Multi Beam Autonics Photoelectric Area Sensor BWP20-08
Specifications

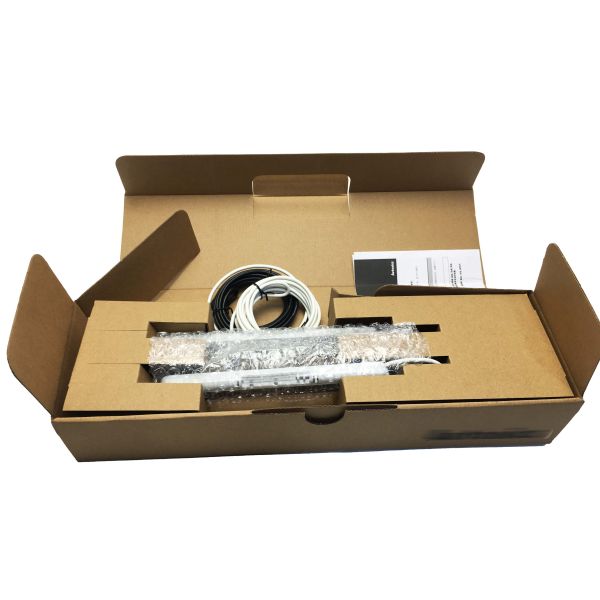

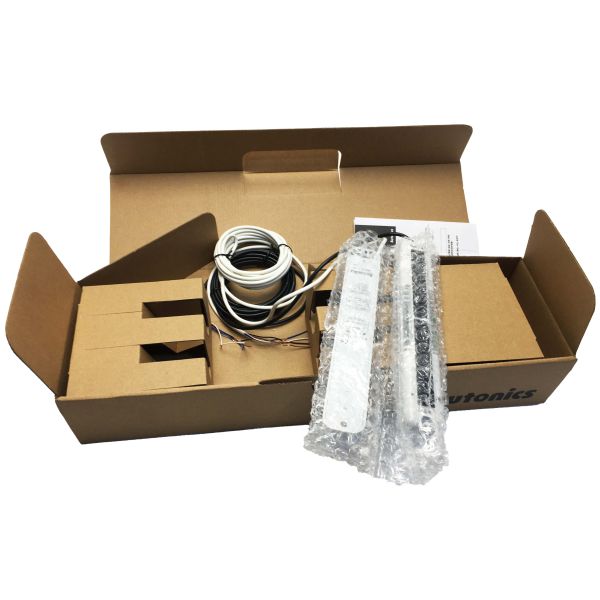

Packaging Details :
Original packaging
Number of optical axes :
8
Delivery Time :
2 days
MOQ :
1pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
AUTONICS
Price :
USD 100-120 / piece
Sensing type :
Through-beam type(direct beam)
Sensing distance :
0.1 to 5m
Light source :
Infrared LED(850nm modulated)
Control output :
NPN open collector
Power voltage :
12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Model Number :
BWP20-08
Place of Origin :
China
Supply Ability :
100 pcs per day
Optical axis pitch :
20mm
Warranty :
One year
Description

BWP20-08 New Factory Sealed Photoelectric Area Sensor — High-Precision Safety Detection

Brand: Autonics

Item # BWP20-08 Sensor, Area, Plastic housing NPN



BWP Series Information

The BWP series area sensors feature a flat and compact body size (13 mm) made of high strength PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene) plastic. The sensors use high performance Fresnel lens and have high‑speed response time of under 7 ms. Four different configurations are available based on the number of optical axes and detection area size. Light ON and Dark ON operation modes switching is available. The series also features various user‑friendly functions including operation test function and mutual interference prevention functions

Parameter Specification
Model BWP20-08
Type Photoelectric Area Sensor (Multi-Beam)
Detection Method Through-beam infrared light curtain
Number of Optical Axes 8 beams
Detection Height Approx. 140 mm
Sensing Distance Up to 7 m
Light Source Infrared LED
Response Time ≤ 7 ms
Power Supply 12–24 VDC ±10%
Current Consumption ≤ 150 mA
Control Output NPN/PNP open collector (model dependent)
Protection Circuit Reverse polarity, overcurrent protection
Operating Temperature −10°C to +55°C
Ambient Humidity 35–85% RH (non-condensing)
Protection Rating IP65
Housing Material Industrial-grade aluminum / reinforced plastic


Main Features

● 13mm slim body with fresnel lens
● Adoption of plastic(PC/ABS) injection case
● Various functions; stop transmission, interference prevention, lightening/flashing JOB indicator, Light ON/Dark ON operation by switch
● Easy to recognize at side, front, and long-distance by high brightness LED of Emitter and Receiver
● Fast response time up to 7ms
● 4 models with various optical axes (8 to 20EA) and sensing height (140 to 380mm)
● Protection structure IP40(IEC standard)
