Robot Palletizing System with Integrated Pallet Lifting Device for Beverage Industry Providing Intelligent Robotic Solutions
Robot Palletizing System with Integrated Pallet Lifting Device for Beverage Industry Providing Intelligent Robotic Solutions
Robot Palletizing System with Integrated Pallet Lifting Device for Beverage Industry Providing Intelligent Robotic Solutions
Robot Palletizing System with Integrated Pallet Lifting Device for Beverage Industry Providing Intelligent Robotic Solutions
Specifications
Place of Origin :
Hefei, Anhui, China
Product capacity :
400-600 cases/hour
A axis movement :
330 °
Payment Terms :
L/C,T/T
Supply Ability :
50 units/month
Price :
26280
Function :
Palletizing , stacking , picking and placing
Robot gripper type :
designed according to product
Model Number :
XY-SR-210
Brand Name :
AGMT
MOQ :
One unit
Packaging Details :

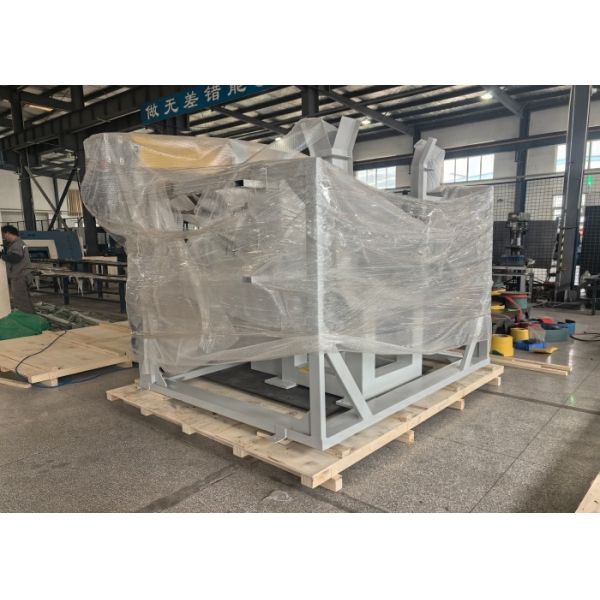

Film wrapped and packed in wooden case
Certification :
CE
Delivery Time :
30-40 working days
Controller :
PLC
Machine weight :
500-1000kg
Name :
Robotic Palletizer
Voltage :
Customized
Description
Robot Palletizing System with Integrated Pallet Lifting Device for Beverage Industry Providing Intelligent Robotic Solutions
Product Overview

The robotic palletizing system is an intelligent automated solution that automatically arranges and stacks products onto pallets according to preset patterns. Compared with traditional manual palletizing, robotic palletizers offer higher speed, better consistency, reduced labor intensity, and 24-hour continuous operation.

Our systems can be integrated with conveyors, bagging machines, wrapping machines, pallet dispensers, labeling systems, and AGV/Forklift transportation systems to create a complete automated packaging and logistics line.

System Features
The SR series robot features unique linear actuators, energy-saving and environmentally friendly arm design, and simple operation interface with customizable grippers. This enables professional robot solutions tailored to different production lines and materials. With excellent accuracy, speed, and efficient stable performance, a single robot can handle palletizing requirements for multiple production lines simultaneously.
Technical Specifications
Model No. AGMT-SR-210
Drive System AC servo motor drive
Installation Floor mounted
Max Palletizing Weight 210 kg (includes gripper weight)
Handling Capacity 1700 cycles/hour
Movement Axes Standard 4 axes: A, B, C, D (6-axis option available)
Movement Range - Horizontal (A-Axis) 1500 mm
Movement Range - Vertical (B-Axis) 2300 mm
Body Rotation (C-Axis) 330°
Gripper Rotation (D-Axis) 330°
Location Accuracy ±0.5 mm
Power Requirement 6.5 KVA
Compressed Air 0.5 MPa
Software Capabilities
  • Multi-language operation interface (Chinese, English, and others available)
  • Premium brand motors (SEW) used in main machine components
  • Built-in palletizing software package
  • Convenient pallet status confirmation
  • Precise pallet position positioning
  • Easy job selection and programming mode

Application Scope

The robotic palletizer can be used for:

Open mouth bag palletizing

Valve bag palletizing

Carton palletizing

Case packing palletizing

Chemical bag handling

Food product stacking

Beverage carton stacking

Fertilizer bag palletizing

Pet food bag palletizing

Resin and plastic granule bag handling

Building material stacking

Warehouse logistics automation

Commissioning and Support Services
We provide accurate factory layout design based on customer facility dimensions. Additional services include workshop design with electrical power, water supply, gas power, material storage, final storage areas, and worker facilities. Engineering support is available for commissioning, with 1-2 engineers providing installation and adjustment services to achieve normal production in the shortest possible time.
Installation Support
Comprehensive user manuals and electrical drawings are provided for self-installation. For customers requiring additional support, our engineers are available for on-site installation and debugging services to ensure optimal system performance.
