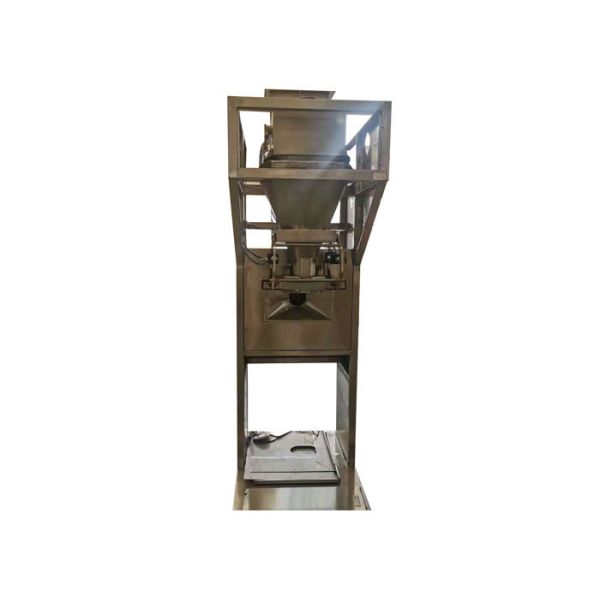

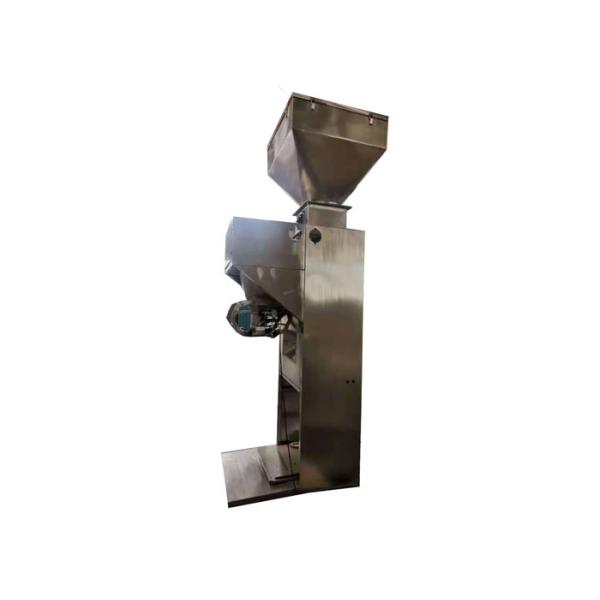

5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
Specifications
Brand Name :
AGMT
Model Number :
SXP25G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Price :
4500
Electrical components :
AirTAC / customized
Weighing range :
5-50kg / bag
Custom HS CODE :
8422400090 or customized
Conveyor length :
Customized or 3 meters
Discharge pressure :
0.5-0.7Mpa
Controller :
Germain meter
Precision :
±0.2-0.3%
Sensor :
4-6
ty :
rtyu
Description
5-50kg Granular Packing Machine with Sewing Machine Conveyor
Professional granular packing machine designed for the animal food industry, featuring integrated sewing machine conveyor system for complete packaging automation.
Application Scope
This granular packing machine is suitable for granules and loose materials with good fluidity in pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additive and other industries.
Technical Specifications
Machine Model SXP25G
Weighing Model Net weighing / Gross weighing
Feeding Mode Valve feed, vibrate feed again
Package Weight 10-50Kg
Package Accuracy ±0.2%
Packaging Speed 6-10 bags/min
Power Supply 380 220V/50Hz
Air Pressure & Consumption 6-8Kg/cm², 0.2m³/min
Total Power 3Kw
Overall Dimensions 900mm×800mm×2500mm (Reference)
Component Specifications
No Name Model Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Toledo 1
4 Motor Zhengjiang China 1 batch
5 Cylinder AIRTAC 1 batch
6 Magnetic valve AIRTAC 1 batch
7 Other pneumatic element AIRTAC 1 batch
Main Components
• Load cell: 3-4pcs Toledo load cell (max weight 200kg/pc, IP67 rating)
• Machine lifespan: Stable operation for 10 years
• Premium components: All accessories use famous brands including AirTAC pneumatic elements, Germain/Unipulse HMI (color touch screen panel), and Schneider electric elements
Installation Services
• Installation provided by AGMT company
• One-day training course included for operation and maintenance procedures
• Service rate: US$100/person/day plus local transportation, round trip air tickets, and hotel accommodation
• Installation scheduled after shipment arrival with all factory requirements prepared
• EAGLE company engineers provide complete final installation on-site
Key Features
• Customizable main frame: SS304 Stainless Steel or Painted Carbon Steel with customer color choice
• Precision weighing: Instrument panel operating system with Mettler Toledo Load Cell for high accuracy at fast packing speeds
• Intelligent weighing display: Simultaneous gross weight and net weight display
• Automatic error correction: Automatic test and correction of weighing errors
• Advanced sewing functions: Auto-sewing, auto-wire breaking, and auto-alarming capabilities

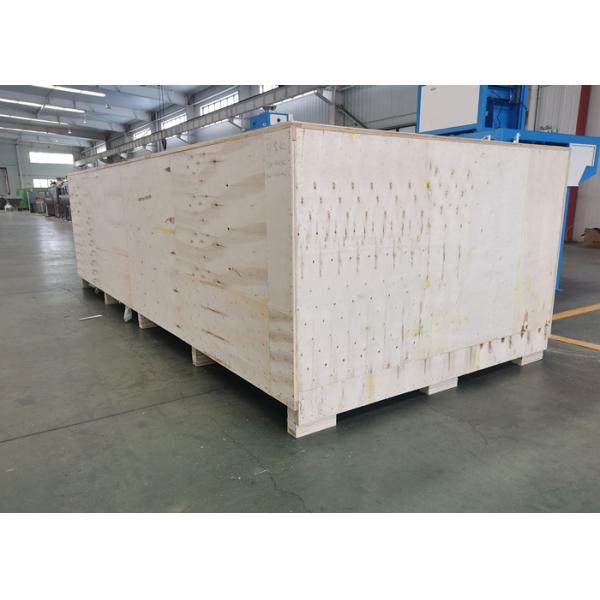

Packaging and Shipping
• Machine thoroughly cleaned and film wrapped internally
• Equipment bottom properly fixed
• All accessories checked and packed securely
• Final sealing in wooden case
5-50kg/bag Granular Packing Machine with ±0.2-0.3% Precision and Stainless Steel Construction for Animal Food Industry
Quality Assurance
• Comprehensive one-year warranty period
• Guaranteed compliance with quality specifications and contract performance requirements
• Proper installation and adjustment to meet contractual requirements after system operation
