Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Specifications
Brand Name :
AGMT
Model Number :
SXP25G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
4500
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Capacity :
300-500 b/h
Operating Language :
Chinese / English
Weighing Controller :
Germain system
Weighing Sensor :
Telode
Discharge pressure :
0.7Mpa
Display Type :
Touch screen/buttons
Machine weight :
400-600kg
Gas Supply :
oil-free, dust-free instrument gas
Package type :
Normal open mouth bag or M type bag
Description

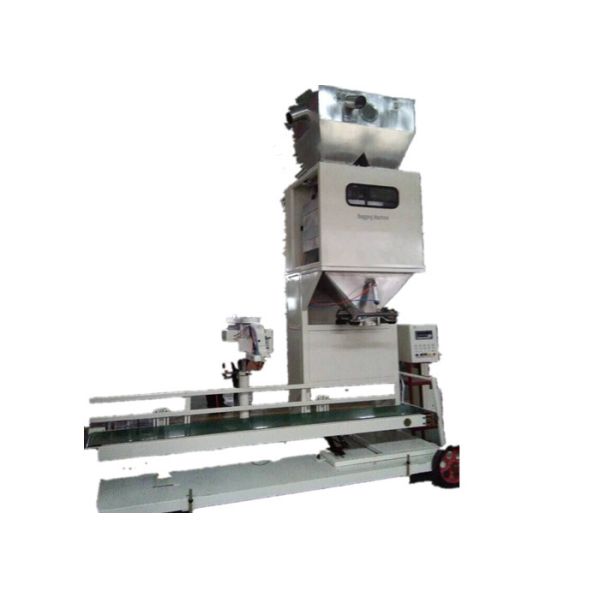

Saimo Automatic IP65 25kg Fertilizer Packing Machine
IP65 Protection Organic Fertilizer Industry Bag Packing Machine With Three-Stage Material Feeding
Application Range
Automatic weighing packaging for granular and loose materials with good fluidity in pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additive and other industries.
Manufacturing Process
  • Obtain raw materials, cutting, laser, shearing, bending
  • Assembling, welding
  • Surface treatment: grinding, polishing, pickling
  • Assembling, finish circuit boards
  • Test machine before delivery
  • QC inspection report and delivery arrangement
Machine Features
  • Instrument panel operating system with Mettler Toledo Load Cell for high weighing accuracy
  • Automatic material measuring, manual bag feeding, automatic bag mouth sewing in one line
  • Customizable with bag push down conveyor, shaping conveyor, grasp conveyor and robot hand
  • Electronic touch screen for easy operation
  • Independent suspension sensors for signal stability and weighing accuracy
  • Infrared sensor with two-speed feeding system for high precision weighing
Working Principles
This quantitative packaging weighing unit is designed for granular materials and small particles with good fluidity and minimal dust. Feeding is controlled by pneumatic arc door or vibration, with sensor feedback signals controlling the graded material flow into the weighing bucket or packaging bag. When the set weight is reached, feeding stops and the bag is automatically released and conveyed for sealing.
Components List
No Name Model Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Toledo 1
4 Approach switch BN-M18 Omron 1
5 Optoelectronic switch FQ31-TO8P Omron 1
6 Other low-pressure component Zhengtai 1 batch
7 Motor Zhengjiang China 1 batch
8 Cylinder AIRTAC 1 batch
9 Magnetic valve AIRTAC 1 batch
Technical Specifications
Model Weighing Scope Speed Accuracy Power Air Pressure
SXP05G 0.5-5kg 10-15 bags/minute 0.2% F.S 3Kw 0.4-0.6MPa
SXP25G 5-25kg 8-14 bags/minute
SXP50G 20-50kg 4-12 bags/minute
Service & Support
We provide comprehensive customer guarantee and after-sales service. Our packaging machines come with a 12-month warranty for all mechanical parts (excluding electrical/electronic components and normal wear items), starting from shipment date. The guarantee covers replacement of faulty parts after construction fault verification.
Quality Assurance
  • One-year warranty period
  • Guaranteed compliance with quality specifications and contract performance requirements
  • Proper installation and adjustment to meet contractual requirements
  • Advanced design with premium materials and components from reputable manufacturers
Installation Services
Professional installation provided by our engineers after shipment arrival. Includes one-day training for operation and maintenance procedures. Installation service available at $80/person/day plus transportation, air tickets, and accommodation.
Packaging and Delivery
  • Machine cleaning and film wrapping
  • Equipment base fixation
  • Accessory packing verification
  • Wooden case closure
  • Marking and labeling
  • Warehouse entry and loading
Saimo Automatic IP65 Protection 25kg Capacity Fertilizer Packing Machine with Three-Stage Material Feeding
Frequently Asked Questions
Where are you located?
Our factory is in Hefei city (2 hours high-speed train from Shanghai). Airport code: HFE.
Can your machine meet our needs well?
After receiving your inquiry, we will confirm your pack weight per pouch, pack speed, and bag size requirements. We'll review your unpacked products and packaging samples, then provide a customized proposal to meet your specific needs.
Can you offer overseas service?
Yes, our engineers are available for overseas service and support.
