25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
Specifications
Brand Name :
AGMT
Model Number :
SXP25G/50G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Price :
4500
Packing speed :
5-8 bags / minute
Electrical Source :
3/single phase, 380-220 V, 50 Hz
Precision :
±0.1-0.5%
Weighing range :
10kg-50kg/bag
Buffer hopper :
With material level
Conveyor length :
2.2-3 meters
Bag sealing type :
Stitching / heat sealing / folding sealing
Hopper Volume :
0.3 CBM or OEM
Machine weight :
400-600kg
ty :
rtyu
Description
25 Kg Open Mouth Bag Packing Machine for Food Products and Granule Filling
This automatic weighing packaging machine is specifically designed for granule and loose materials with good fluidity, providing efficient and accurate 25 kg packaging solutions.
Application Scope
Automatic weighing packaging for granules and loose materials with good fluidity in various industries including pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, and additive industries.
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
Working Principles
This quantitative packaging weighing unit is specially designed for granular materials and small particles with good fluidity and minimal dust. Feeding is controlled by pneumatic arc door or vibration, with the sensor feedback signal controlling the feeding mechanism. Material is graded into the weighing bucket or packaging bag, and when the set weight is reached, feeding automatically stops.
Technical Parameters
Machine Type SXP25G
Weight Range 5-25 kg, MAX 50kg/bag
Accuracy 2
Scale Division 0.2-0.5% (According to material characteristic)
Weight Speed 3-8 times/min
Environmental Requirement Relative humidity ≤90%
Electrical Requirements AC380V 50Hz
Power 3KW
Air Requirement 0.4-0.6Mpa 1m³/h
Machine Weight 400-600 kg

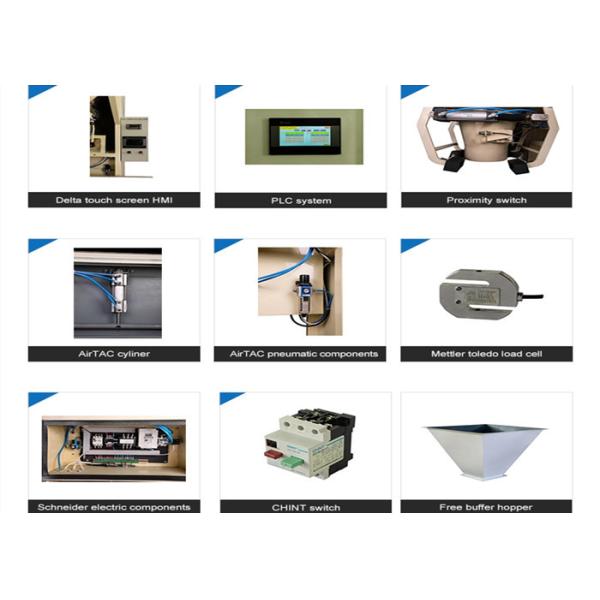

Main Machine Components
No Name Manufacturer QTY
1 Control System Canada Germaine 1
2 Weighing Controller Canada Germaine 1
3 Weighing Sensor Toledo 1
4 Motor Zhengjiang China 1 batch
5 Cylinder AIRTAC 1 batch
6 Magnetic Valve AIRTAC 1 batch
7 Other Pneumatic Element AIRTAC 1 batch
Installation Services
Professional installation is provided by AGMT company. During installation, a comprehensive one-day training course is included for operation and maintenance procedures. Installation services are available after shipment arrival, and the factory must be equipped with all necessary requirements before scheduling installation with our engineers.
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
Machine Features
  • Customizable main machine frame in SS304 Stainless Steel or Painted Carbon Steel
  • Instrument panel operating system with Mettler Toledo Load Cell for precision weighing
  • Imported intelligent weighing instrument displaying gross and net weight simultaneously
  • Automatic test and correction of weighing errors
  • Sewing machine with auto-sewing, auto-wire breaking, and auto-alarming functions
Quality Assurance
  • One-year warranty period
  • Guaranteed compliance with quality specifications and contract performance requirements
  • Proper installation and adjustment to meet contractual requirements after system operation
Frequently Asked Questions
Where are you located?
Our factory is in Hefei city (2 hours high-speed train from Shanghai). Airport code: HFE.
Can your machine meet our specific needs?
Yes, we customize every machine to meet your specific requirements. After receiving your inquiry, we will confirm your pack weight per pouch, pack speed, pack bag size, and review your product samples to provide a tailored solution.
25 Kg Open Mouth Bag Packing Machine with 5-8 Bags/Minute Speed and ±0.1-0.5% Precision for Granule Filling
