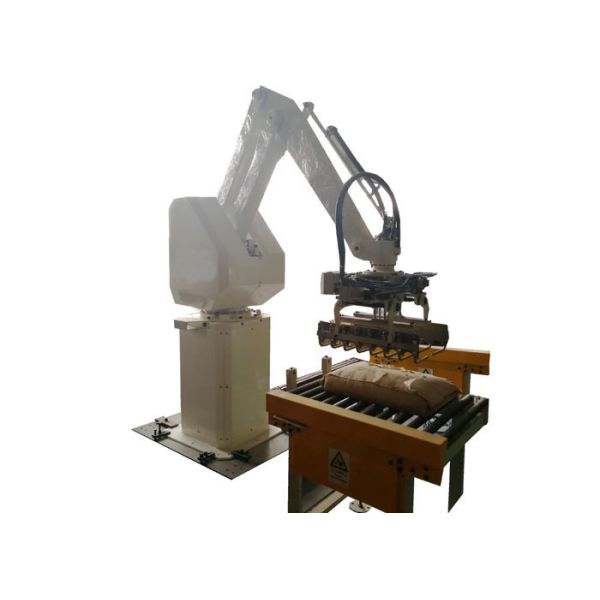

Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Specifications
Brand Name :
AGMT
Model Number :
XY-SR-210
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
26280
Payment Terms :
L/C,T/T
Supply Ability :
50 units/month
Delivery Time :
30-40 working days
Packaging Details :
Film wrapped and packed in wooden case
Name :
Robotic Palletizing System
Controller :
PLC
Voltage :
Customized
A axis movement :
330 °
Product capacity :
500-800 cartons/hour (double catch)
Function :
Palletizing , stacking , carrying , packing and so on
Robot gripper type :
designed according to product
Machine weight :
500-1000kg
ty :
rtyu
Description

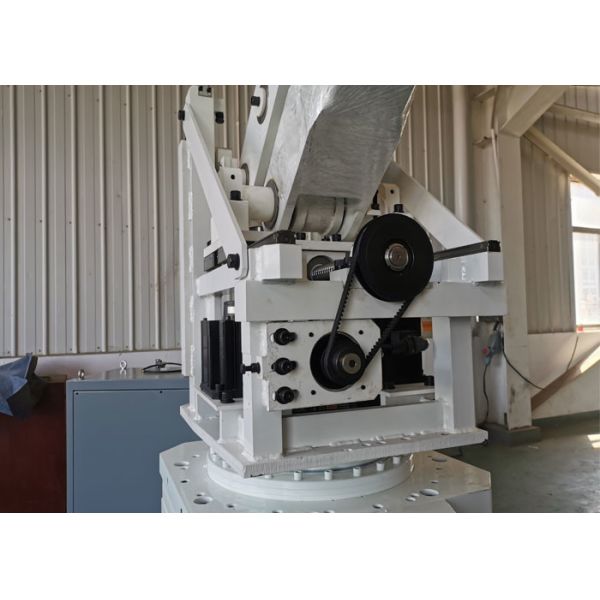

Synchronous Belt Palletizing Robots for Food Industry Applications
Synchronous belt palletizing robots designed for factory automation in the food industry, providing intelligent, robotic, and networked solutions for production sites.
Product Applications
This robotic palletizer can be integrated into any production line, serving as a comprehensive palletizing logistics system suitable for beer, beverage, and foodstuff industries.
Technical Specifications
Model No. AGMT-SR-210
Drive System AC servo motor drive
Installation On floor
Maximum Palletizing Weight (including gripper) 210 kgs
Handling Capacity 1700 Times/Hour
Movement Axes Normally 4 axes: A, B, C, D (can be 6 axis)
Movement Scope - A-Axis (Horizontal) 1500mm
Movement Scope - B-Axis (Vertical) 2300mm
Movement Scope - C-Axis (Body) 330°
Movement Scope - D-Axis (Gripper) 330°
Location Accuracy ±0.5mm
Power Requirements 6.5KVA
Compressed Air 0.5Mpa
Robot Weight (excluding gripper) 1150 kgs (+/-10%)
Key Functions & Features
  • Programmable palletizing patterns, pallet supply, and discharging via PLC
  • Easy palletizing pattern adjustments through touchscreen interface
  • Carton supply system with brake motor control for precise positioning
  • High-capacity pallet magazine storing 12-15 empty pallets for automatic supply
Performance Advantages
  • Reliability: Designed for maximum uptime and continuous operation
  • Speed: Optimized for packaging applications with short cycle times
  • Precision: High-quality components ensure exceptional accuracy and stability
  • Functionality: Wide range of industrial applications
  • Versatility: Flexible integration and production capabilities
We provide customized robot palletizer recommendations based on specific product requirements and operational needs.
Software & Control Unit
  • Multi-language operation support (Chinese, English, and others)
  • Premium brand motors including SEW components
  • Built-in palletizing software package
  • Convenient pallet status confirmation
  • Precise pallet position positioning
  • Easy job selection and writing mode configuration
Frequently Asked Questions
Q: How to get an accurate quotation?
A: Please provide detailed workpiece information including drawings and dimensions.
Q: What's the packaging method?
A: All goods are securely packed in wooden boxes for international shipping.
Q: Do you offer installation and debugging services?
A: Our engineers are available for overseas machinery service to help customers resolve machine problems.
Commissioning & After-Sales Service
We provide accurate factory layout designs based on customer facility dimensions. Additional services include workshop design for electrical power, water supply, gas power, material storage, final storage areas, and worker facilities.
For commissioning services, we dispatch 1-2 engineers to install and adjust processing lines for rapid production startup and optimization.
Synchronous Belt Palletizing Robot with 4 Axis Movement and PLC Control for 500-800 Cartons/Hour in Food Industry
Installation Instructions
We provide comprehensive user manuals and electrical drawings for self-installation. For customers requiring additional support, we offer engineer dispatch services for professional installation, debugging, and system optimization.
