Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Specifications
Brand Name :
AGMT
Model Number :
SXP1000
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Payment Terms :
L/C,T/T
Supply Ability :
50 units/month
Delivery Time :
20-30 working days after deposit
Packaging Details :
Film wrapped and packed in exported wooden case
Price :
11680
Chain conveyor power :
1.5-3.0 KW
Weighing range :
500-2000kg
Machine material :
304/316 SS/ carbon steel
Package type :
Ton bag packing
Accuracy :
±0.2-0.5%
Packing speed :
10-30 b/h
Bag sealing type :
Normally Hand tie
Material feeding :
Belt / vibration / Auger filling
Bag clipping method :
Cylinder clip
Full bag output :
Chain conveyor / Lift platform
Description
Cylinder Clip Jumbo Bag Packing Machine For Food Series Industry
Product Overview

The ton bag packaging machine is a comprehensive system featuring pneumatic bag-clamping, inflatable gas recovery, material feeding control, hydraulic units, and electric control. This large weighing and packaging machine integrates electric weighing, automatic bag-releasing, and dust collection for efficient ton-bag material packaging.

Machine Main Components
  • Electric rotary valve
  • Main weighing bracket
  • Access platform
  • Loadcell
  • Automatic release mechanism
  • Automatic bag clamping mechanism
  • Transition bin
  • Elevating cylinder
  • Ladder and guardrail
  • Pallet
  • Chain conveyor
  • Solenoid valve control cabinet
  • Explosion-proof control cabinet
Technical Specifications
Product Name bulk bag packing machine/jumbo bag packaging machine/FIBC bag packer
Model SXP1000D/2T | SXP1000F/2T | SXP1000L/2T
Applicable Materials Flake materials, granule and powder mixture, irregularly shaped materials and bad fluidity materials | powdery materials or fine granule materials with good fluidity | granular materials
Weighing Range 400kg to 2000kg per jumbo bag
Feeding Mechanism Belt feeder | screw feeder | gravity feeder
Precision ≤±0.2-0.5%
Packing Speed 15-30 bags/hour
Voltage Single phase AC220V, three phase 380V, 50Hz, or customize
Power 1.5kw | 3 kw | 1.5 kw
Dimension 2800*3700*5000mm
Working Environment -10℃-40℃
Key Features
  • Adjustable packing range from 500-1200 kg, suitable for big bags packing
  • Simple parameter setting and weighing calibration with convenient operation
  • High-precision weighing system with 0.02% accuracy sensor and high-resolution controller
  • Material feeding controlled by two valves for fast, slow, and exactness feeding modes
Service & Support

Documentation: Operational manual in English provided at machine dispatch

Guarantee: 12 months trouble-free performance from commissioning

Service: Free after-sales service for one year with spare parts coverage (excluding human damage and easily broken parts)

Production Flow

Raw materials → cutting → drilling → welding → folding → polishing → rust prevention → paint spraying → assembling → testing → packaging and transport → after service

Configuration Details
No Name Manufacturer QTY
1 Control system Canada Germain or Simons 1
2 Weighing controller Canada Germain or Simons 1
3 Weighing sensor Mettler Toledo 4
4 Approach switch Schneider 1
5 Optoelectronic switch Schneider 1
6 Contactor & breaker Schneider 10
7 Other low-pressure component Schneider 1 batch
8 Motor CPG, China 1 batch
After-Sales Service Commitment

We guarantee the machine against poor materials, performance, and workmanship for one year from commissioning date. During this period, we provide free maintenance and spare parts for quality-related issues.

We offer repair service for three years with the buyer covering costs of broken parts.

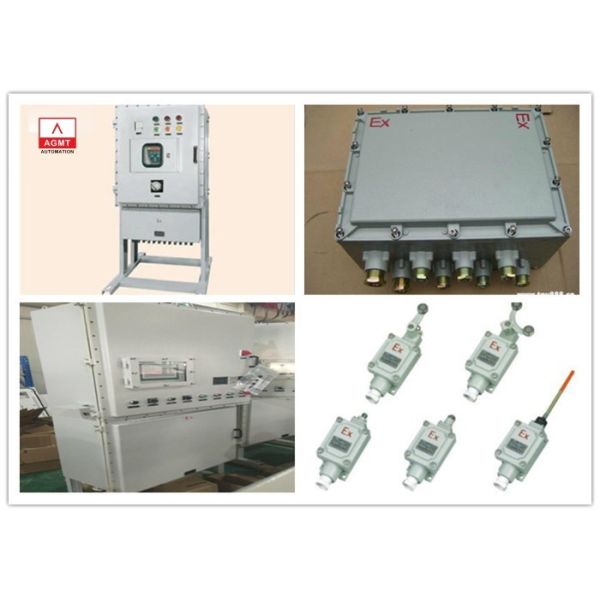

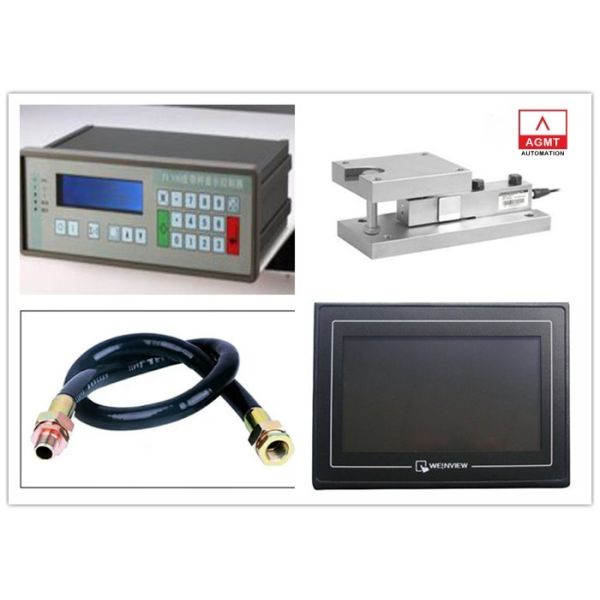

Electrical Components
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
Cylinder Clip Jumbo Bag Packing Machine with 500-2000kg Weighing Range and 304/316 SS Material
