1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
Specifications
Brand Name :
AGMT
Model Number :
SXP1000
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
11680
Payment Terms :
L/C,T/T
Supply Ability :
50 units/month
Delivery Time :
20-30 working days after deposit
Packaging Details :
Film wrapped and packed in exported wooden case
Packing machine power :
1.5 KW
Conveyor power :
1.5-3.0 KW
Weighing range :
400-2000kg
Machine material :
Material contact parts use 304SS, other parts use carbon steel
Packing speed :
10-30 bags / hour
Optional part :
Roller conveyor/Hydraulic platform
Automatic bag clamp: :
Sensor control
Voltage :
220V/380V/50HZ or customized
Description
Construction Material 1200Kg Big Bag Packing Machine
Explosion-Proof Protection Jumbo Bag Packing Machine for Building Materials Industry, 1200 Kg Capacity
Application Scope
Widely applied to ores, chemical construction materials, grain, feed stuff, and other bulk materials.
Product Overview
The SXP1000 automatic quantitative packaging machine is designed for centralized ton-bag packaging of powdery and granular materials with good flowability. It features rotary valve feeding and gross weight metering, capable of manual bagging, hanging tape suspension, automatic bag clamping, material feeding, weighing, bag release, heavy bag conveying, and more. Compact structure, simple operation, easy handling, and high reliability.
Technical Parameters
Parameter Specification
Packaging Materials Particle Materials
Packaging Model 1T
Packaging Accuracy ±0.3%
Qualification Rate ≥99%
Packaging Speed 8-10 Bags/hour
Weighing Type Hanging Weighting, automatic constant speed bag dropping
Packaging Bag Type Foursquare bag hanging, artificial tying
Power 380V AC 50HZ
Air Source Pressure 0.6-0.8MPa
Noise Level ≤85db
Machine Materials Stainless steel for material contact areas, carbon steel spray treatment for rest
Utility Factor Over 80% (remaining for regular maintenance and breakdown maintenance)
Working Environment Temperature: -30～40℃; Moisture: ≤50%
Key Features
  • Automatic PLC control system
  • Bag clamping and blowing mechanisms
  • Automatic feeding and precision metering
  • Exhausting and finished products conveying
  • Minimal operator intervention required
  • High production capacity for powder and granular materials
  • Advanced weighing system for fast speed and high accuracy
  • Simple design for easy operation and maintenance
Manufacturing Process Flow
Raw materials → Cutting → Drilling → Welding → Folding → Polishing → Rust prevention → Paint spraying → Assembling → Testing → Packaging and transport → After-sales service

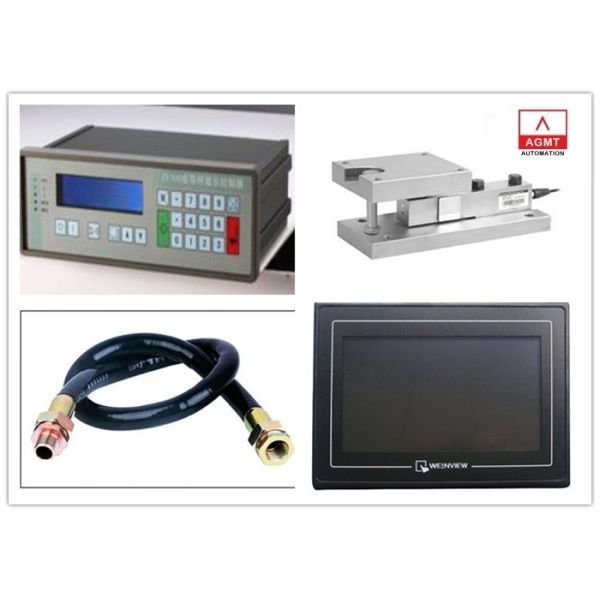

Machine Main Components
  • Electric rotary valve
  • Main weighing bracket
  • Access platform
  • Loadcell
  • Automatic release mechanism
  • Automatic bag clamping mechanism
  • Transition bin
  • Elevating cylinder
  • Ladder and guardrail
  • Pallet
  • Chain conveyor
  • Solenoid valve control cabinet
  • Explosion-proof control cabinet
1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials 1200Kg Explosion-Proof 304SS Jumbo Bag Packing Machine for Construction Materials
Why Choose Our Packing Machines
SPECIALIST MANUFACTURER
Continuous investment in research and development, specializing in bagging bulk solids in all types of bags including open mouth bags and big bags.
PROVEN EXPERIENCE
Over 3,000 machines delivered and installed worldwide. All machinery complies with CE conformity standards.
PROFESSIONAL SERVICE TEAM
24-hour online technical support with efficient after-sales service available worldwide.
After-Sales Service Commitment
  • 1-Year Warranty: Guaranteed against poor materials, performance, and workmanship from commissioning date. Includes free maintenance and quality-related spare parts.
  • 3-Year Repair Service: Comprehensive repair service with customer covering parts costs.
  • Operation Guidance: Complete machine operation training and support.
  • Rapid Response: 2-hour response time for production issues.
