Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Specifications
Brand Name :
AGMT
Model Number :
SXP25G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
4500
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Capacity :
6-10 bags / minute
Conveyor length :
3 meters
Weighing range :
5-50kg
Precision :
±0.2%
Automatic grade :
Semi-automatic
Trademark :
EAGLE
Load Cell :
4
Hopper Volume :
0.3 CBM
Free air capacity :
0.1 M3/Min
Description
Semi Automatic 25kg Granule Packing Machine for Tea Industry
Double Bucket Explosion-Proof Granule Packing Machine System
This advanced packaging system is specifically designed for the tea industry, featuring robust construction and precision weighing technology.
Machine Characteristics
  • Main machine frame available in SS304 Stainless Steel or painted Carbon Steel with customizable colors
  • Instrument panel operating system with Mettler Toledo Load Cell for high-precision weighing
  • Integrated automation: automatic material measuring, manual bag feeding, and automatic bag mouth sewing
  • Expandable system with optional conveyors and robot hands for complete packing and palletizing lines
Technical Parameters
Parameter Specification
Machine Model SXP25G
Weighing Model Net weighing / Gross weighing
Feeding Mode Valve feed, vibrate feed again
Package Weight 10-50Kg
Package Accuracy ±0.2%
Packaging Speed 6-10 bags/min
Power Supply 380 220V/50Hz
Atmospheric Pressure 6-8Kg/cm² 0.2m³/min
Total Power 3Kw
Overall Dimensions 900mm×800mm×2500mm (Reference)
Transport Machine Technical Parameters
Parameter Specification
Conveyor Length 3000mm
Conveyor Speed 5-20m/min
Conveyor Belt Width 400mm
Maximum Conveying Capacity 10-15 bags/min
Power Supply AC380V
Power 0.75KW
Main Machine Components
No Component Name Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Toledo 1
4 Approach switch (BN-M18) Omron 1
5 Optoelectronic switch (FQ31-TO8P) Omron 1
6 Contactor & breaker Zhengtai 10
7 Other low-pressure components Zhengtai 1 batch
8 Motor Zhengjiang China 1 batch
9 Cylinder AIRTAC 1 batch
10 Magnetic valve AIRTAC 1 batch
11 Other pneumatic elements AIRTAC 1 batch
Installation Services
Professional installation provided by EAGLE company engineers after shipment arrival. Factory must be fully prepared with all necessary requirements before scheduling installation.
Includes one-day training course covering operation and maintenance procedures. Installation service priced at US$80/person/day plus transportation, air tickets (round trip), and hotel accommodations.
Industry Applications
Our packaging machines serve over 20 industries including feed, fertilizer, grain, chemical industry, building materials, starch, food, rubber and plastics, hardware, minerals, handling more than 3,000 material types.
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Quality Assurance
  • One-year comprehensive warranty period
  • Guaranteed compliance with quality specifications and contract performance requirements
  • Professional installation and adjustment to meet contractual requirements
  • Advanced design with premium materials and components from renowned manufacturers
  • Right to exchange parts and return goods if quality or specifications don't match contract terms
Packaging and Shipping

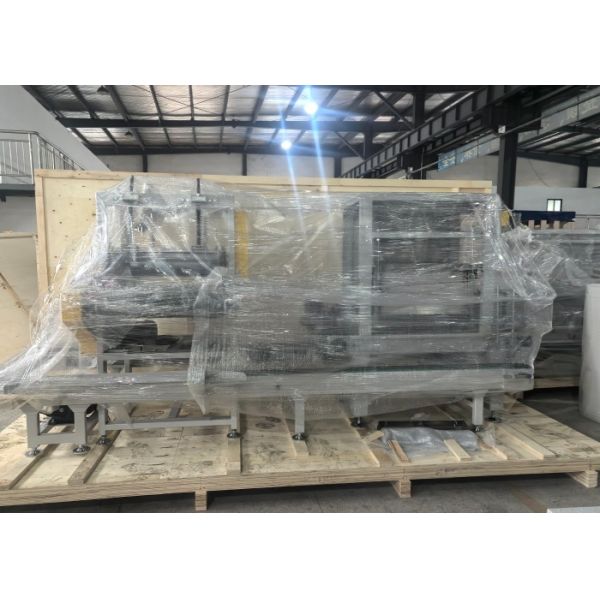

Machines are fully installed and tested before packaging in secure wooden boxes with metal frames for container shipping. Inner packaging uses stretch film with export-grade wooden boxes (non-fumigation).
Ready-to-use upon arrival - simply connect electrical wiring and air source. Shipping ports include Shanghai, Ningbo, Nanchang, or other requested ports.
Semi-automatic 25kg Granule Packing Machine for Tea Industry with High Precision
Frequently Asked Questions
Q: How about the guarantee period?
A: One-year whole machine guarantee.
Q: What's the payment term?
A: L/C or TT payments accepted.
Q: What is the lead time?
A: 15-20 days after receiving deposit.
Q: What is the material of contact material parts?
A: Contact material parts are 304 stainless steel. Machine body available in 304 stainless steel or carbon steel.
Q: Can this machine handle different bag sizes?
A: Yes, customizable according to your specific requirements.
