180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
Specifications
Brand Name :
AGMT
Model Number :
IRB460-110
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
26280
Payment Terms :
L/C,T/T
Supply Ability :
50 units/month
Delivery Time :
30-40 working days
Packaging Details :
Film wrapped and packed in wooden case
Color :
White
Condition :
New
Application :
Beverage, Food, Medical, feed etc.
Another name :
Robot Palletizer
Control language :
English or other language
Gripper type :
According to client's product
Max payload :
110kg / 180kg / 250kg
Product capacity :
Multi lines, 8s per cycle
ty :
rtyu
Description

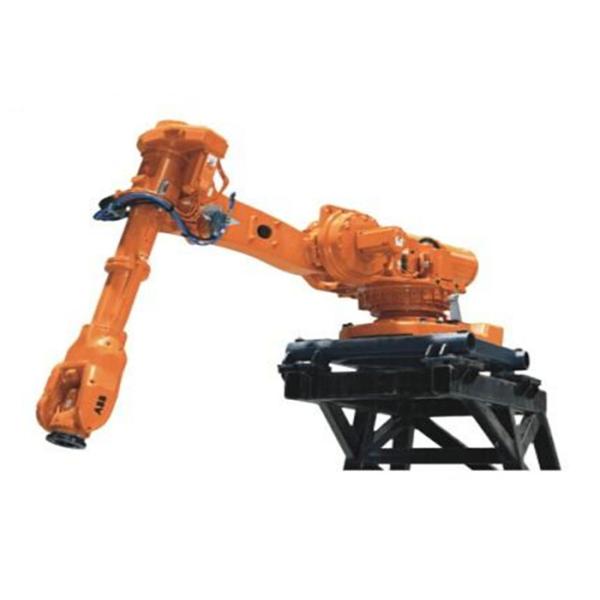

IRB660 4-Axis Palletizing Production Line
The ABB IRB660 is a dedicated palletizing robot that blends speed, reach and payload like no other machine on the market. This exceptionally fast 4-axis system combines a 3.15-meter reach with a 250kg payload, making it ideal for palletizing bags, boxes, crates, bottles and more in fertilizer industry applications.
Performance Advantages
  • Enhanced Speed: Considerably faster than predecessor models with optimized motor power and motion performance for significantly shorter cycle times
  • Impressive Reach: Capable of servicing up to four in-feed conveyors, two pallet stacks, one slip-sheet stack and four palletizing out-feeding lines
  • Robust Construction: Rugged design with IP 67 protection for steady performance in demanding industrial environments
  • Easy Operation: ABB's multi-functional IRC 5 controller and PickMaster software for quick programming and intuitive operation
Technical Specifications
Robot Version Handling Capacity Reach
IRB 660-180/3.15 180kg 3.15m
IRB 660-250/3.15 250kg 3.15m
Specification Value
Number of Axis 4
Protection Class IP 67
Mounting Floor mounted
Position Repeatability 0.1mm
Path Repeatability 0.3mm
Performance Data
Load Cycles per Hour
180kg 1570
250kg 1360

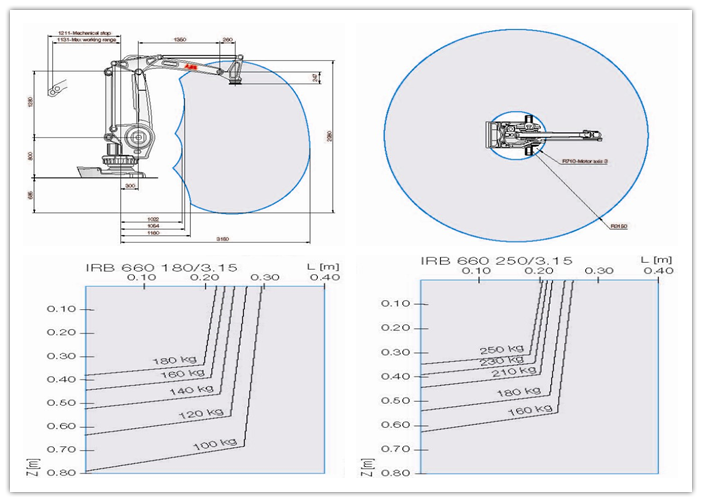

Working Range & Load Diagram
180kg Payload 4 Axis Multi-line Capacity Robotic Palletizing System for Industrial Automation
Why Choose Our Palletizing Systems
  • Complete program support including ABB software, basement and grab hands for easy implementation
  • On-site technician training for your operators until they are fully proficient
  • Extensive experience with multiple robot brands including ABB, Kawasaki, Fanuc, and Kuka
  • Ability to select the most suitable and cost-effective robot model for your specific application
Customization & Contact Information
To receive detailed pricing and specifications, please provide the following information:
  • Product type and packaging format (bags, cartons, etc.)
  • Required packages per hour
  • Workshop layout or available space dimensions
  • Full pallet height (excluding empty pallet thickness)
  • Palletizing pattern (bags per layer, layers per pallet, arrangement)
  • Empty pallet dimensions (length, width, height)
  • Requirement for automatic pallet magazine
  • Country voltage specifications
Frequently Asked Questions
What's the shipping cost from China to your country?
We ship machines to your nearest port via sea or other required methods. Please provide your port details or address with postal code. We work with reliable shipping agents to ensure safe, convenient and timely delivery.
What are your payment terms, MOQ, warranty and trade terms?
Payment: 30% down payment by T/T, 70% balance on delivery. MOQ: 1 set. Delivery: 20-30 working days after order confirmation and deposit. Warranty: 12 months from delivery. We provide 24/7 online support via Skype, Email, and phone for urgent matters.
What's your policy for guarantee and broken parts?
We provide 12 months warranty for all mechanical parts (excluding electrical/electronic components and normal wear items). Warranty begins from shipment date (B/L date). Replacement of faulty parts is provided after verification of manufacturing defects.
How do we test your machinery?
After manufacturing completion, we provide video documentation for your review. You are also welcome to visit our factory for hands-on testing and operator training.
