Specifications
Brand Name :
AGMT
Model Number :
SMK2200
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
29888
Payment Terms :
L/C,T/T
Supply Ability :
30-50 units/month
Delivery Time :
40-60 working days
Packaging Details :
Film wrapped and packed in exported wooden cases
Automatic grade :
Automatic
Controller type :
PLC
Palletizing type :
OEM
Language :
English or other customer required
Installation :
Engineer guide online or on-site service
Application :
Bag/carton/box-like
Voltage :
380V or customized
Machine type :
Packaging line
Description
Automatic 380V 2200bags / Hour High Speed Palletizer
380V High Accuracy Bag Palletizer Machine for Food Industry, Programmable
Product Overview
This high-level palletizer utilizes premium components including AirTAC pneumatic systems, SIEM PLC controllers, and advanced touch screen interfaces for optimal performance and reliability.
Application Scope
Ideal for industries with demanding palletizing requirements where robotic solutions are not suitable, including petrochemical, chemical, food, pharmaceutical, feed, grain, non-ferrous minerals, and building materials sectors.
Specifications & Technical Parameters
  • Palletizing speed: 1200 bags/min (25kg)
  • Palletizing layer: 5 bags/layer, 12 layers/pallet
  • Total power: 25KW
  • Machine noise: ≤75db
  • Power type: 3 phase 380V/50Hz
  • Air volume: 250L/min (0.6MPa)
  • Package compatibility: Valve bags
  • Product dimensions: 650×430×170mm
  • Product weight: 25kg
  • Pallet size: 1300L×1100W×130H mm
  • Machine weight: 13000Kg
Working Principle
The high-level palletizing system integrates multiple components including climbing conveyors, slow-stop shaping machines, direction changers, grouping mechanisms, bag pushers, layer formation systems, elevators, pallet warehouses, pallet conveyors, and elevated platforms. The system ensures high stacking quality with neat, secure pallet formations. Advanced control systems utilizing SIEM programmable controllers, inverters, and sensor technology coordinate the entire transportation, grouping, and stacking process.
Detailed Technical Parameters
ModelSMK2200
Application ScopeWoven bag, kraft bag, composite film plastic bag, PE bag
Product Size and Weight650*430*170mm / 25-50kg
Palletizing Layers5 bags/layer, 12 layers/pallet
Capacity2200 bags/hour
Pallet Size1300L*1100W*130H mm
Air Consumption400NL/min
Working Pressure0.6MPa
Total PowerAC380V, 50Hz, 3 phases, 21.46KW
Palletizing TypeCustomizable to customer requirements
Installation Instructions
Complete user manuals and electrical drawings are provided for self-installation. For customers requiring additional support, our engineering team is available for on-site installation and commissioning services.

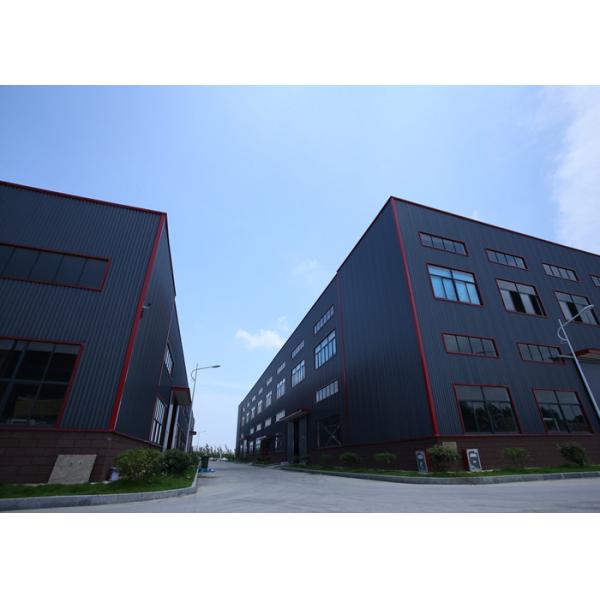

Factory Overview
380V 2200bags/hour High Speed Bag Palletizer Machine with PLC Control
Frequently Asked Questions
Can your machine be customized?
Yes, we are a professional manufacturer specializing in palletizing robots, packaging machines, and conveyors for over 10 years. Our experienced design and technical team can develop customized solutions based on your specific requirements.
How to get an accurate quotation?
Please provide detailed workpiece specifications including technical drawings and dimensions for precise pricing.
What's the shipping cost from China to your country?
We arrange shipping to your nearest port or specified address via sea freight or other preferred methods. Please provide your port details or address with postal code. We work with reliable shipping partners to ensure safe, convenient, and timely delivery.
