Specifications
Brand Name :
AGMT
Model Number :
SXP50G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Price :
4500
Capacity :
5-8 bag per minute
Weighing range :
5-50kg
Precision :
±0.2-0.5%
Automatic grade :
Semi-automatic(need one person)
Trademark :
SAIMO EAGLE
HS CODE :
8422400090
Conveyor length :
3 meters belt/ roller type
Sensor :
Quantity 4 pcs
Hopper Volume :
0.3 CBM
ty :
rtyu
Description

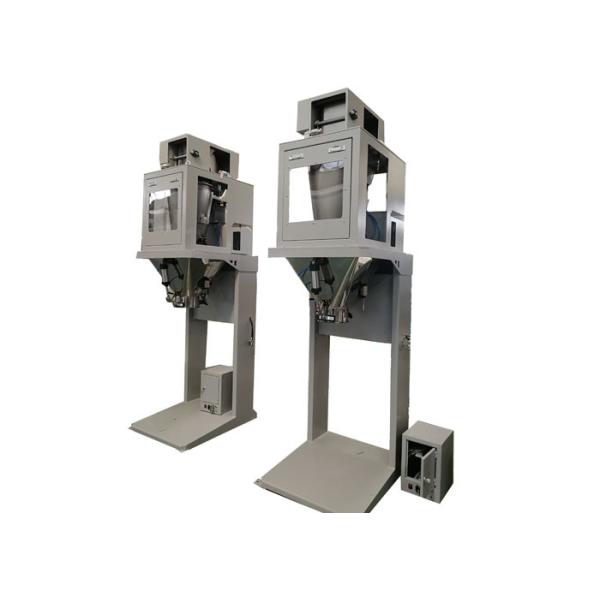

Open Mouth Bag Vegetable Pellet Packing Machine
Manual bagging system equipped with electronic gross weighing system to meet international standards, providing high accuracy and reliability for the food industry.
Machine Characteristics
  • Simple construction and sturdy design for safe and accurate operation
  • Designed for wide range of industries including food, feed, chemicals, and building materials
  • Compatible with various feeding devices (high-speed or standard gravity, belt, screw, and vibratory feeder)
Technical Specifications
Type5-50kg Double Bucket Granule Packing Scale
Weighing Capacity8-15 bags/min
Weighing Range5-60kg/package
Weighing Error0.2-2%
Control MethodMeter + Touch screen
Power SupplyAC380V
Host Power3KW
Gas SupplyOil-free, dust-free instrument gas
Pressure0.4-0.6Mpa
Component Specifications
No Name Model Manufacturer QTY
1Control systemCanada Germaine1
2Weighing controllerCanada Germaine1
3Weighing sensorToledo1
4Approach switchBN-M18Omron1
5Optoelectronic switchFQ31-TO8POmron1
6Contactor & breakerZhengtai10
7Other low-pressure componentZhengtai1 batch
8MotorZhengjiang China1 batch
9CylinderAIRTAC1 batch
10Magnetic valveAIRTAC1 batch
11Other pneumatic elementAIRTAC1 batch
Installation Services
  • Professional installation provided by AGMT company
  • One-day training course included for operation and maintenance procedures
  • Training cost: US$100/person/day plus local transportation, round-trip air tickets, and hotel accommodation
  • Installation scheduled after shipment arrival with factory readiness confirmation
  • Complete final installation by our engineers on-site
Quality Assurance
  • 12-month warranty period
  • Guaranteed compliance with quality specifications and contract performance
  • Proper installation and adjustment to meet contractual requirements
  • Advanced design with premium materials from domestic and international manufacturers
  • Right to exchange parts or return goods for quality or specification inconsistencies
Packaging and Shipping
  • Shipping ports: Shanghai, Ningbo, Nanchang, or other required ports
  • Pre-installed and tested machines packed in secure wooden boxes with metal frames
  • Inner packaging with stretch film, outer packaging with export-grade wooden boxes
  • Ready-to-use upon arrival - simply connect electrical wires and air source
Service Commitment
  • 12-month guarantee for all mechanical parts (excluding electrical/electronic components and normal wear)
  • Guarantee period starts from shipment date (B/L date)
  • Replacement of defective parts after construction fault verification
  • Manufacturer retains exclusive rights for trouble cause inspection
  • Comprehensive after-sales support and assured product quality
