Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch
Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch
Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch
Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch
Specifications
Brand Name :
AGMT
Model Number :
SXP25G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
4500
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Capacity :
3-5 bags / minute
Conveyor length :
normally 3 meters
Weighing range :
10-50kg
Automatic grade :
Semi-automatic
Motor Power :
0.75KW
Precision :
±0.1-0.3%
Electrical Source :
380-220 V, 50 Hz
HS CODE :
8422490000
Key point :
Easy to Operate
Description
Servo Motorized Granule Filling Packing Machine For Plastic Color Masterbatch
Semi-automatic servo motorized granule filling packing machine specifically designed for plastic color masterbatch applications.
Machine Features
  • High accuracy and high-speed operation
  • Packages grain in 10-50kg bags or bottles

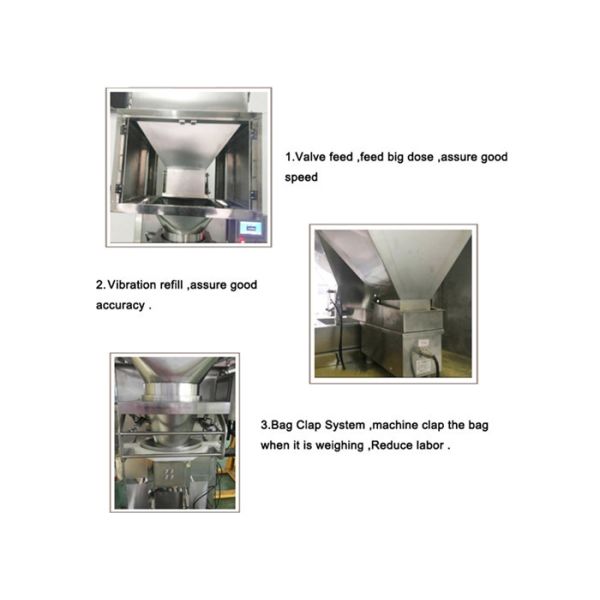

  • Double feed system with big valve and small vibration for optimal accuracy and speed

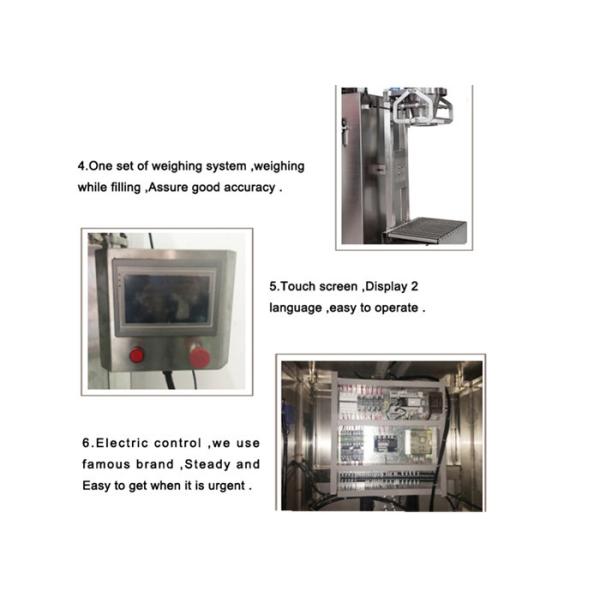

  • Chinese/English or custom language support in touch screen interface
  • Reasonable mechanical structure for easy size changes and cleaning
  • Famous brand electrical components for reliable performance
  • Low noise operation
  • Available in SUS 304 material construction
Technical Parameters
Machine Model SXP25G
Weighing Model Net weighing / Gross weighing
Feeding Mode Valve feed, vibrate feed again
Package Weight 10-50Kg
Package Accuracy ±0.2%
Packaging Speed 6-10 bags/min
Power Supply 380 220V/50Hz
Atmospheric Pressure and Use Tolerance 6-8Kg/cm² 0.2m³/min
Total Power 3Kw
Overall Dimensions 900mm×800mm×2500mm (For reference)
Main Machine Components
No Name Model Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Toledo 1
4 Approach switch BN-M18 Omron 1
5 Optoelectronic switch FQ31-TO8P Omron 1
6 Contactor & breaker Zhengtai 10
7 Other low-pressure component Zhengtai 1 batch
8 Motor Zhengjiang China 1 batch
9 Cylinder AIRTAC 1 batch
10 Magnetic valve AIRTAC 1 batch
Installation Services
Professional installation provided by AGMT company after shipment arrival. Factory must be equipped with all necessary requirements before scheduling installation. Our engineers provide complete final installation and one-day training course for operation and maintenance procedures.
Training cost: US$80/person/day plus local transportation, round trip air tickets, and hotel room & board. Day charges include travel days.
Quality Components
All packing machine accessories use famous brands including AirTAC pneumatic elements, Germain/Unipulse HMI touch screens, Schneider electric components, and 3-4 Toledo load cells (max weight 200kg/pc, IP67). Designed for stable operation for 10+ years.
Machine Images
Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch
Packaging and Shipping

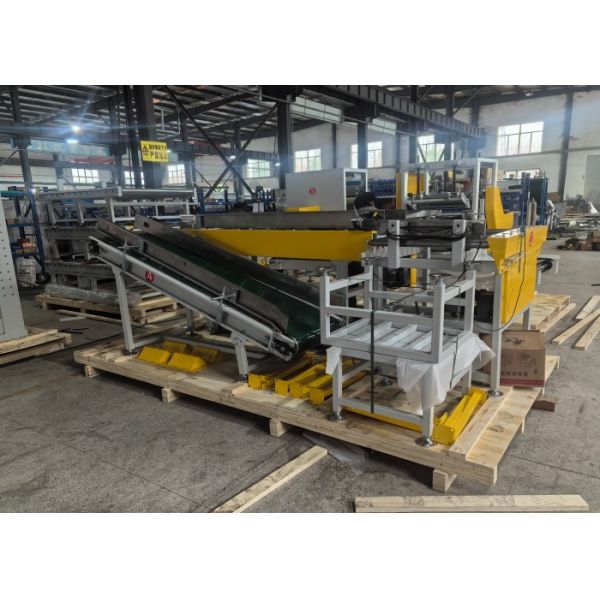

Machines are fully installed and tested before shipping. Complete set packed in large wooden boxes within containers. Inner packaging with stretch film, outer packaging with export wooden boxes with metal frames (non-fumigation wood) for maximum safety.
No additional installation required upon receipt - simply connect electric wires and air source to begin operation. Shipping ports: Shanghai/Ningbo/Nanchang or other required ports.
Semi-automatic Granule Packing Machine with 10-50kg Weighing Range and ±0.2% Precision for Plastic Masterbatch
Frequently Asked Questions
How about the guarantee period?
One-year whole machine guarantee.
What is the material of contact material parts?
The contact material parts are made of 304 stainless steel. The machine body can be 304 stainless steel or carbon steel.
Can this machine make different bag sizes?
Yes, we can be formulated according to your requirements.
Can your machine meet our needs well?
After receiving your inquiry, we will confirm your pack weight per pouch, pack speed, pack bag size (most important), and review your unpacked products and pack samples. We provide customized proposals to meet your specific requirements.
