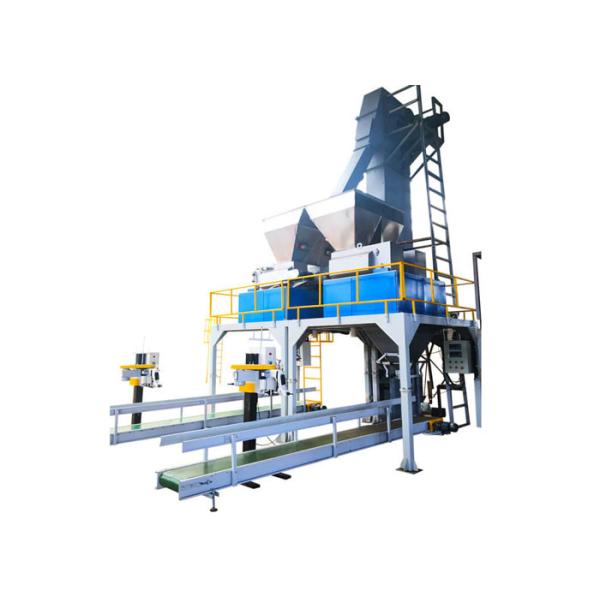

Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Specifications
Brand Name :
AGMT
Model Number :
SXP25G
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
4500
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Capacity :
5-9 bags / minute
Conveyor length :
Normal 3 meters
Weighing range :
5-50kg
Precision :
±0.2%
Automatic grade :
Semi-automatic
Trademark :
Saimo EAGLE
Load Cell :
4 pcs
Hopper Volume :
0.3 CBM
Free air capacity :
0.1 M3/Min
ty :
rtyu
Description
Semi Automatic Bagging Machine For Bulk Material 20-50kg Bag
Designed specifically for the animal feed industry, this semi-automatic bagging machine efficiently handles bulk material packaging in 20-50kg bags with precision and reliability.
Machine Characteristics
  • Customizable main frame construction in SS304 Stainless Steel or painted carbon steel with customer-selected colors
  • Advanced instrument panel operating system with Mettler Toledo Load Cell for superior weighing accuracy at high packing speeds
  • Integrated processing line: automatic material measuring, manual bag feeding, and automatic bag mouth sewing
  • Expandable system capable of integrating with bag push down conveyor, shaping conveyor, grasp conveyor, and robot hand for complete packing and palletizing solutions
Technical Parameters
Item Parameter
Product Form Granule
Bag Form Pre-made single layer bag (suction cup compatible)
Woven Bag Size 1000mm × 500mm (L×W)
Speed 5-12 bags/minute
Weight Capacity 5-25kg/bag
Acceptance Rate of Sewing Bag ≥99.9%
Noise Level ≤70dB
Power Requirements 5.5KW AC380V±10% 50Hz
Air Pressure ≥5kg/cm²
Spare Bag Capacity 40-80 bags
Maximum Air Consumption 0.5m³/min
Main Machine Components
Component Model/Manufacturer Quantity
Control System Canada Germaine 1
Weighing Controller Canada Germaine 1
Weighing Sensor Toledo 1
Approach Switch BN-M18 (Omron) 1
Optoelectronic Switch FQ31-TO8P (Omron) 1
Contactor & Breaker Zhengtai 10
Other Low-Pressure Components Zhengtai 1 batch
Motor Zhengjiang China 1 batch
Cylinder AIRTAC 1 batch
Magnetic Valve AIRTAC 1 batch
Other Pneumatic Elements AIRTAC 1 batch
Applications
This manual bagging system features electronic gross weighing technology that meets international standards, delivering high accuracy and reliability. The robust construction and simple design ensure safe, precise operation across multiple industries including food processing, animal feed, chemicals, and building materials. Compatible with various feeding devices including high-speed or standard gravity feeders, belt feeders, screw feeders, and vibratory feeders.
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Quality Assurance
  • Comprehensive one-year warranty period
  • Guaranteed compliance with quality specifications and contractual performance requirements
  • Professional installation and adjustment services to ensure optimal system operation
  • Advanced design with premium materials and components sourced from renowned domestic and international manufacturers
  • Quality guarantee: right to exchange parts or return goods if specifications don't match contract requirements
Installation Services
Professional installation provided by AGMT company engineers after shipment arrival. Factory must have all necessary requirements prepared before scheduling installation. Complete installation includes one-day operational and maintenance training. Service charges: $80/person/day plus transportation, round-trip air tickets, and hotel accommodations. Day charges include travel days.
Packaging and Shipping
  • Machines undergo thorough installation and testing before packaging
  • Secure packaging: inner stretch film protection with export-grade wooden boxes featuring metal frames (non-fumigation wood)
  • Ready-to-use delivery: simply connect electrical wiring and air source upon receipt
  • Shipping ports: Shanghai, Ningbo, Nanchang, or other requested ports
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
Frequently Asked Questions
How about the guarantee period?
One-year whole machine guarantee.
What's the payment term?
L/C or TT is accepted.
What is the lead time?
15-20 days after receiving the deposit.
What is the material of contact material parts?
The contact material parts are made of 304 stainless steel. The machine body can be 304 stainless steel or carbon steel.
Can this machine make different bag sizes?
Yes, we can customize the machine according to your specific requirements.
Semi Automatic Bagging Machine with 5-9 Bags/Minute Speed, ±0.2% Precision for 20-50kg Bulk Material Packing
