SFTO1560JD-7328BN – High Brightness 15.6" TFT LCD for Extreme Conditions
Engineered for demanding environments, the SFTO1560JD-7328BN is a high-brightness 15.6-inch TFT LCD display designed to deliver crystal-clear visuals even in direct sunlight or low-light industrial settings. With 500 cd/m² brightness and a wide operating temperature range (-30°C to +80°C), this display is ideal for applications requiring reliability and visibility in harsh conditions.
Why Choose This High Brightness TFT LCD?
Technical Highlights:
Applications:
Engineered for Global Markets:
The SFTO1560JD-7328BN meets the rigorous demands of European and American industries, offering:
Contact Us for Bulk Orders or Custom Solutions!
At Saef Technology Limited, we specialize in delivering high-performance displays to global clients. With fast shipping to the USA, Germany, UK, France, and beyond, we provide technical support and competitive pricing for your business needs.
Specifications
| Parameter | Specification | Unit |
| Active Area | 345.6(W) x 194.4(H) | mm |
| Number Of Pixels | 1920 x RGB x 1080 | pixels |
| Pixel Pitch | 0.18(W) x 0.18(H) | mm |
| Pixel Arrangement | RGB Vertical stripe | |
| Display Mode | Normally black | |
| Display Colors | 8bits | colors |
| Surface Treatment | HC | |
| Contrast Ratio | Typ. 1200 Min.1000 | |
| Viewing Angle(CR>10) | Typ.85/85/85/85 | deg. |
| Color Gamut | 72% NTSC | |
| Brightness | 500typ 425min | cd/m2 |
| Brightness Uniformity | 80% typ 75% min | |
| Power Consumption | Max.10.65W Typ. 9.55 W | watt |
| Outline Dimension | 363.8*215.9 | mm |
| Weight | Typ. 850g | gram |

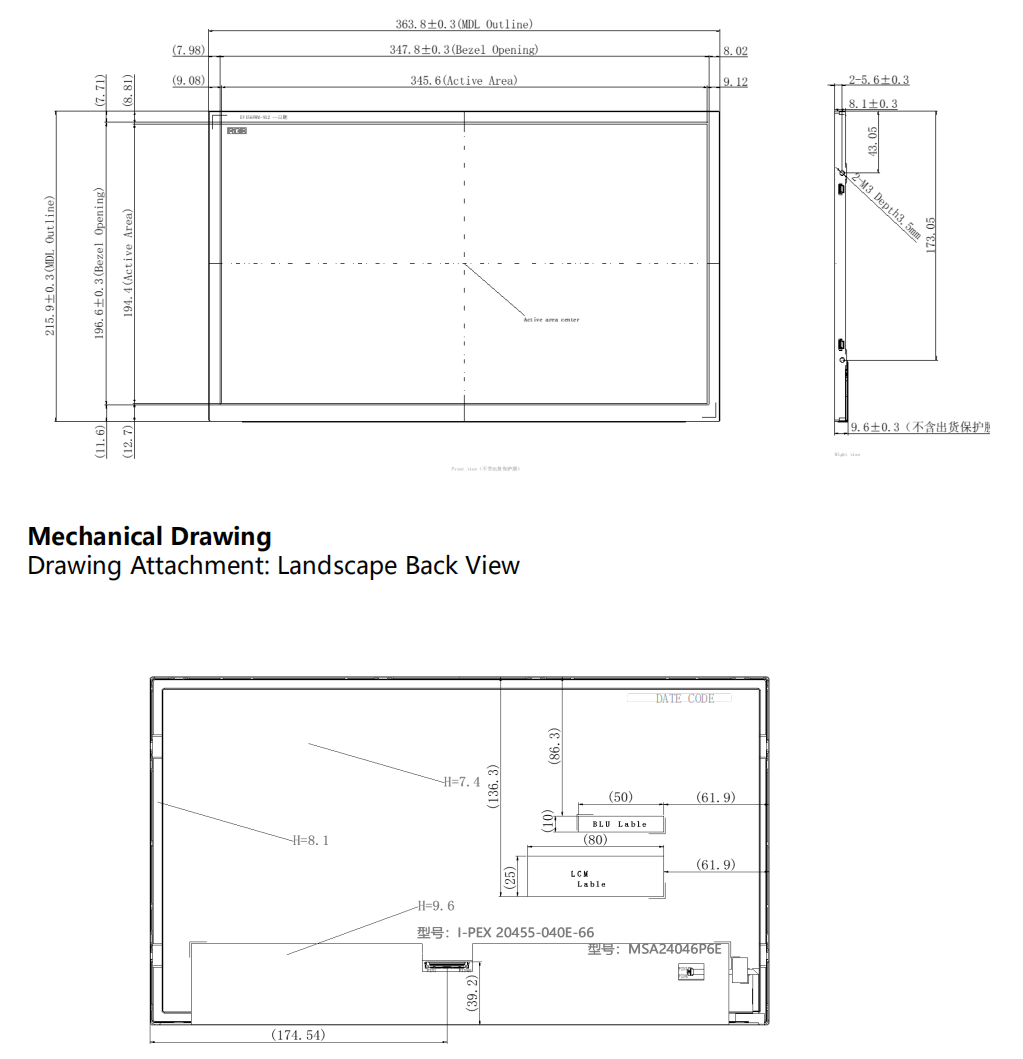

External Dimensions

Interface Pin Definition
| No. | Symbol | No. | Symbol | ||
| 1 | RE3P | Positive LVDS differential data input Channel E3(Even) | 21 | RO1N | Negative LVDS differential data i nput Channel O1(Odd) |
| 2 | RE3N | Negative LVDS differential data inpu t Channel E3(Even) | 22 | RO0P | Positive LVDS differential data in put Channel O0(Odd) |
| 3 | RECLKP | Positive LVDS differential clock inpu t (Even) | 23 | RO0N | Negative LVDS differential data i nput Channel O0(Odd) |
| 4 | RECLKN | Negative LVDS differential clock inp ut(Even) | 24 | GND | LCD Ground |
| 5 | RE2P | Positive LVDS differential data input Channel E2(Even) | 25 | NC | SDA for SAEF use, this pin shoul d be open |
| 6 | RE2N | Negative LVDS differential data inpu t Channel E2(Even) | 26 | NC | SCL for SAEF use, this pin shoul d be open |
| 7 | GND | LCD Ground | 27 | NC | MTP for SAEF use, this pin shoul d be open |
| 8 | RE1P | Positive LVDS differential data input Channel E1(Even) | 28 | LCD_VCC | LCD Power 3.3V |
| 9 | RE1N | Negative LVDS differential data inpu t Channel E1(Even) | 29 | LCD_VCC | LCD Power 3.3V |
| 10 | RE0P | Positive LVDS differential data input Channel E0(Even) | 30 | LCD_VCC | LCD Power 3.3V |
| 11 | RE0N | Negative LVDS differential data inpu t Channel E0(Even) | 31 | LED_PW M | Backlight Adjust ,3.3V(3V~3.6V) |
| 12 | RO3P | Positive LVDS differential data input Channel O3(Odd) | 32 | LED_EN | Enable pin ,3.3V(3V~3.6V) |
| 13 | RO3N | Negative LVDS differential data inpu t Channel O3(Odd) | 33 | GND | Ground |
| 14 | GND | LCD Ground | 34 | STBYB | Deep standby mode setting pin. |
| 15 | ROCLKP | Positive LVDS differential clock inpu t (Odd) | 35 | RSTB | Device Reset for LCD driver IC, Low active |
| 16 | ROCLKN | Negative LVDS differential clock inp ut(Odd) | 36 | GND | Ground |
| 17 | GND | LCD Ground | 37 | BL_POW ER | +12V Vi power supply |
| 18 | RO2P | Positive LVDS differential data input Channel O2(Odd) | 38 | BL_POW ER | +12V Vi power supply |
| 19 | RO2N | Negative LVDS differential data inpu t Channel O2(Odd) | 39 | BL_POW ER | +12V Vi power supply |
| 20 | RO1P | Positive LVDS differential data input Channel O1(Odd) | 40 | BL_POW ER | +12V Vi power supply |
Optical Characteristics
| Item | Symbol | Condition | Min | Typ. | Max | Unit |
| luminance | Bp | θ=0° | 425 | 500 | -- | cd/m2 |
| L255 Uniformity | △Bp |
| 75 | 80 | -- | % |
| Viewing Angle | θL | Cr≥10 | -- | 85 | -- | deg |
|
| θR |
| -- | 85 | -- |
|
|
| ψT |
| -- | 85 | -- |
|
|
| ψB |
| -- | 85 | -- |
|
| Contrast Ratio | Cr | θ=0° FF=0° | 1000 | 1200 |
| - |
| Color Coordinate of CIE1931 | Wx | θ=0° | 0.283 | 0.313 | 0.343 | - |
|
| Wy |
| 0.299 | 0.329 | 0.359 |
|
| Color Gamut |
| NTSC | -- | 72 | -- | % |
| Gamma |
| 25℃ | 2.0 | 2.2 | 2.4 | % |
| Crosstalk |
| 25℃ | -- | -- | 2 | % |
Backlight Characteristics
| Parameter | Symbol | Values | Unit | ||
|
|
| Min. | Typ. | Max. |
|
| LED Supply Voltage | V LED | 28 | 30 | 31 | V |
| LED Supply Current | ILED | - | 252 | - | mA |
| Power Consumption | PLED | - | 8.89 | 9.19 | W |
| LED Quantity | QLED | - | 40 | - | EA |
| LED Life Time | TLED | 40000 | 50000 | - | Hrs |

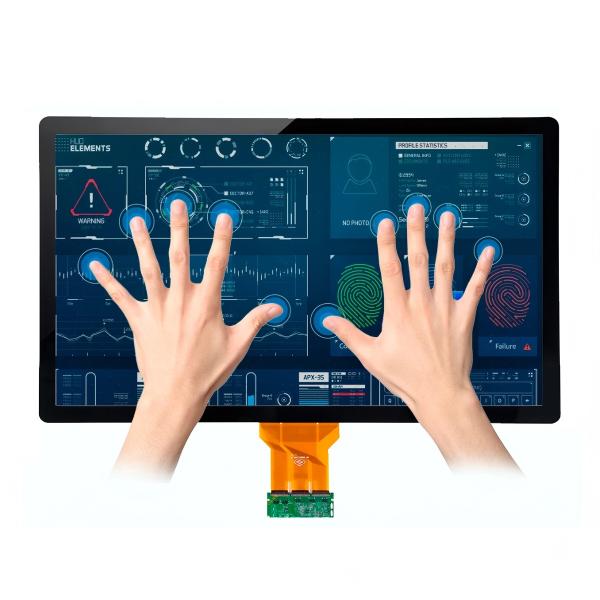

CTP Specification (optional)
| Category | Parameter | Specification |
| General | Structure | Cover Glass + DITO Glass |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -30℃ ~ +80℃, ≤85% RH | |
| Storage Temperature | -35℃ ~ +85℃, ≤85% RH | |
| Electrical | Interface | IIC / USB / UART |
| Touch IC | IL12511 | |
| Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
| Host Resistance (SDA/SCL) | Configurable on Main-board | |
| Environmental | Operating Conditions | Functional in fog/surface water |
| Surface Properties | Surface Ink | Anti-UV |
| Surface Treatment | Anti-Glare (Haze: 10%) | |
| LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |

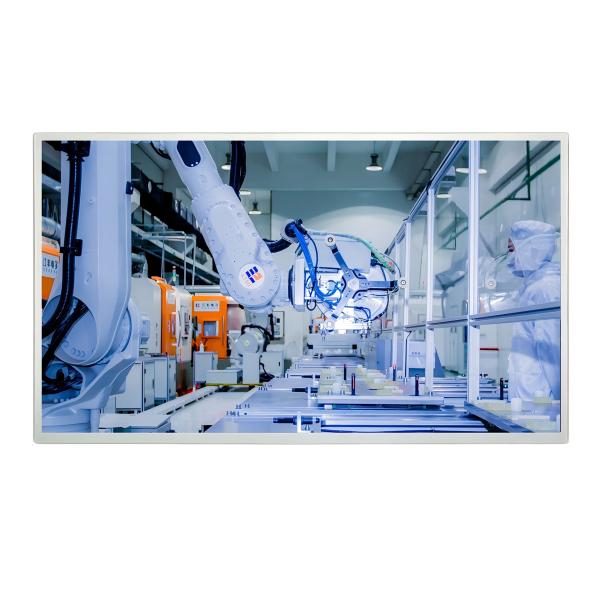

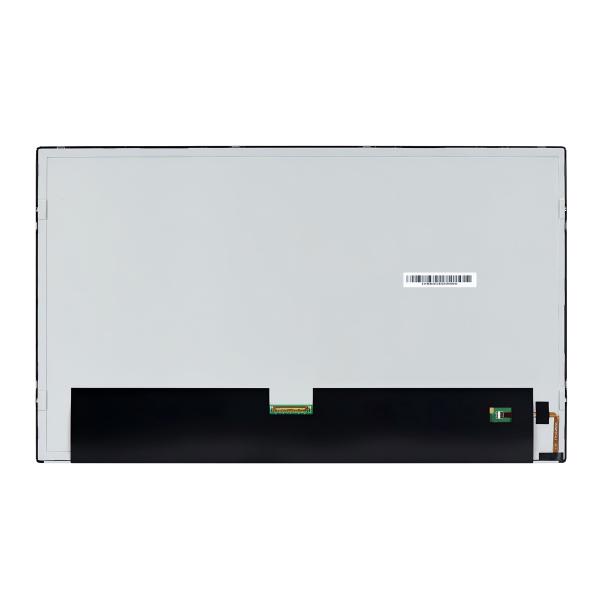

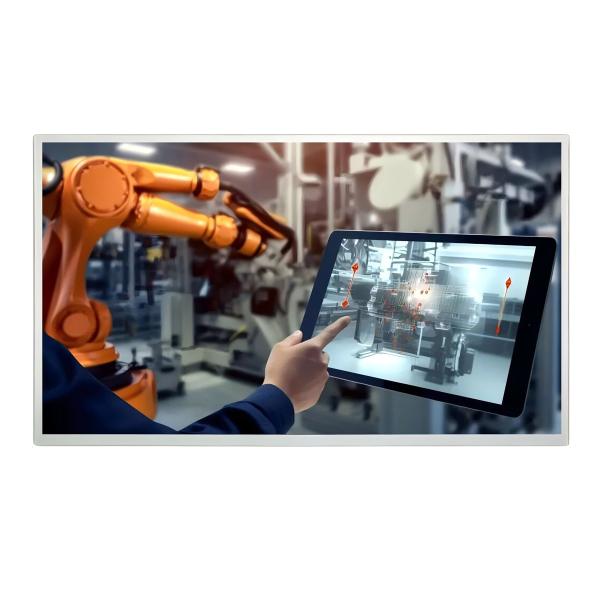

Product Image
